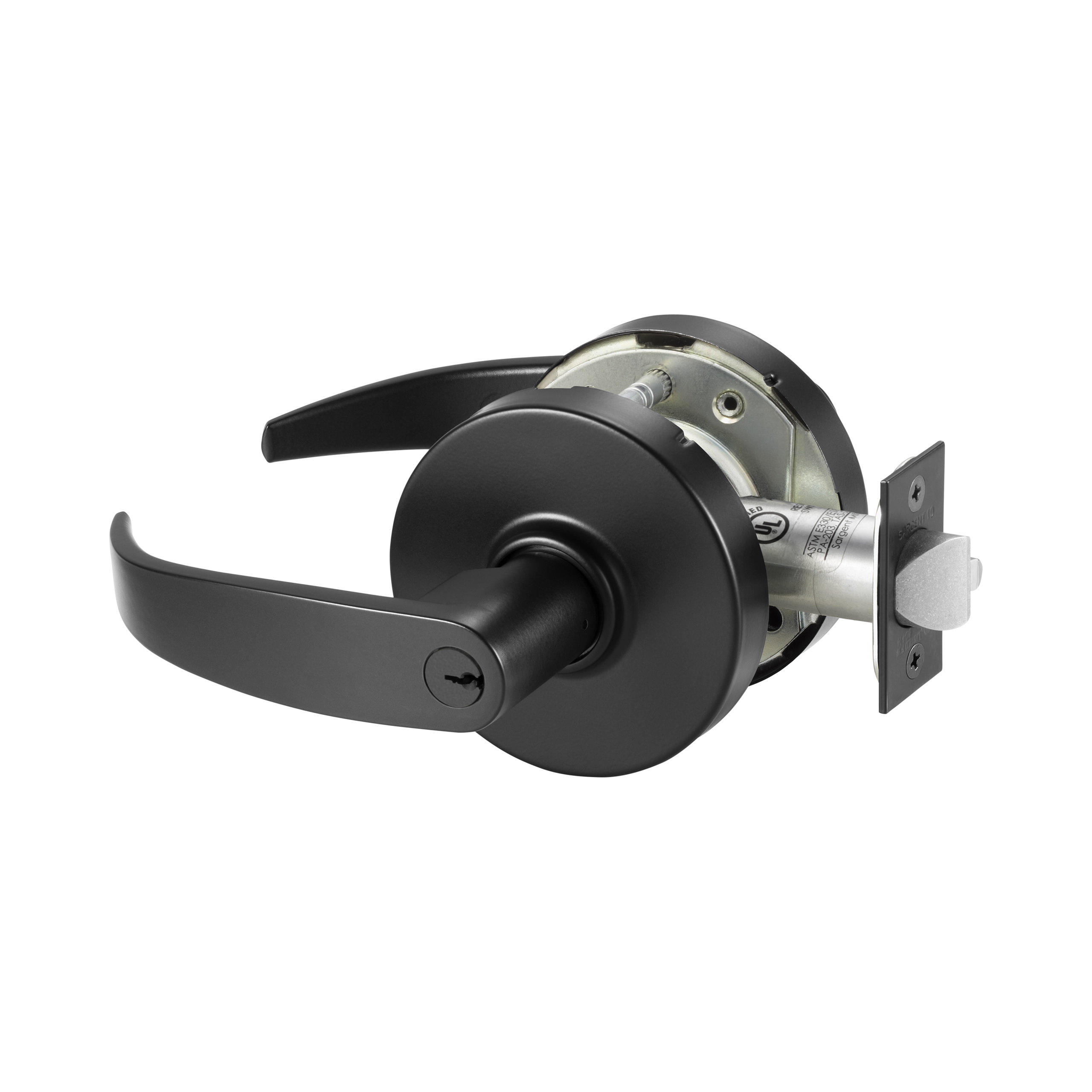

Sargent 30-10XG05LLBSP F109 Grade 1 Cylindrical Lever Lock, L Lever Rose, Schlage Prep, Black Suede

Sargent 3010XG05LLBSP Entry Office (F109) Cylindrical Lever Lock offers an exceptional level of security and durability for commercial applications. With a robust Grade 1 rating, it features an L lever and L rose design, tailored for seamless integration with Schlage preparations and an ASA strike. The striking black suede powder coat finish not only enhances aesthetic appeal but also contributes to its resilience. Engineered to withstand over 3,100 in-lb of locked lever torque and 1,600 lbs of offset lever pull, this lockset far exceeds ANSI/BHMA A156.2 requirements, ensuring reliable performance under pressure. It maintains smooth latch retraction even with a 100 lb preload, making it ideal for warped doors or those with latch bind. Additionally, it prohibits entry after over 100 vertical impacts and has successfully completed UL Cycle testing above and beyond 20 million cycles (Verification ID: V584148). Designed for doors ranging from 1-3/4" to 2" thick, the lockset features a 2-3/4" backset and a 2-1/8" crossbore size. With a 7-year limited warranty, the Sargent 3010XG05LLBSP ensures peace of mind and lasting quality for any entry office environment.

Entry Office (F109) Cylindrical Lever Lock Grade 1 with L Lever and L Rose with Schlage Prep and ASA Strike Black Suede Powder Coat Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
