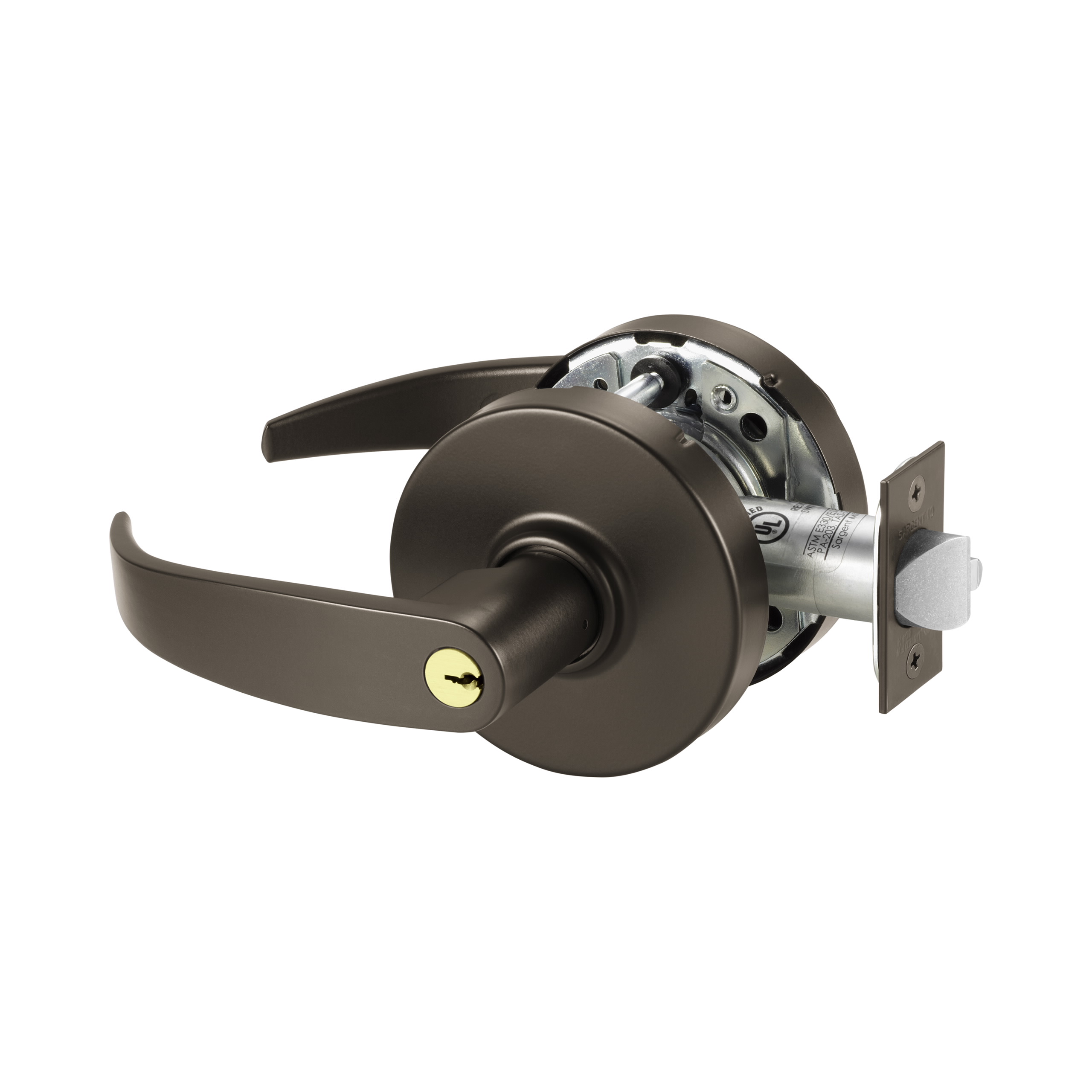

Sargent 3010XG04LBBSP F86 Grade 1 Cylindrical Lever Lock, B Lever, L Rose, Black Suede Finish

Sargent 3010XG04LBBSP Storeroom or Closet (F86) Cylindrical Lever Lock combines robust security features with a sleek design, making it an ideal choice for commercial applications. This Grade 1 lockset, featuring a B Lever and L Rose, is designed to withstand extreme conditions, preventing unauthorized entry while ensuring safe egress. It surpasses ANSI/BHMA A156.2 requirements, with the ability to endure over 3,100 in-lb of locked lever torque and 1,600 lbs of offset lever pull. Constructed from durable zinc and finished in a sophisticated Black Suede Powder Coat, this lock is not only resilient but also visually appealing. The Sargent 3010XG04LBBSP is equipped to handle latch retraction with a 100 lb preload, making it functional even in warped doors. With a UL Cycle rating of 20 million cycles, it exemplifies reliability and longevity. Designed for doors ranging from 1-3/4" to 2" thick, it features a 2-3/4" backset, a 2-1/8" crossbore size, and an ASA strike with dimensions of 4-7/8" and a 1-1/4" lip. Backed by a 7-year limited warranty, the Sargent 3010XG04LBBSP is the perfect choice for those seeking security and style in architectural door hardware.

Storeroom or Closet (F86) Cylindrical Lever Lock Grade 1 with B Lever and L Rose with Schlage Prep and ASA Strike Black Suede Powder Coat Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
