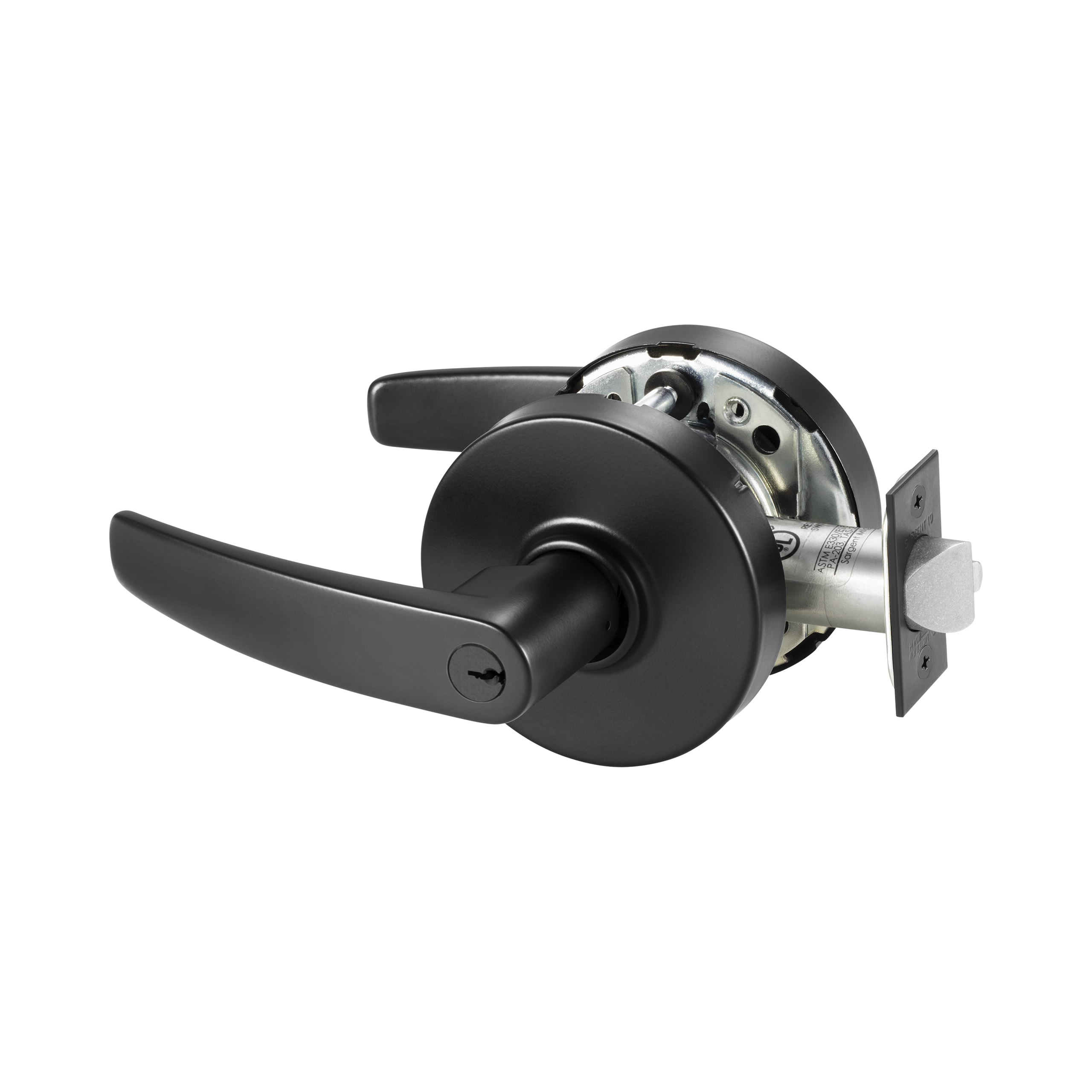

Sargent 3010XG05LPBSP F109 Grade 1 Cylindrical Lever Lock with P Lever, L Rose, Black Suede Finish

Sargent 3010XG05LPBSP Entry Office (F109) Cylindrical Lever Lock Grade 1 combines robust security features with a sleek design, making it an ideal choice for commercial and institutional settings. Designed to withstand over 3,100 in-lb of locked lever torque-2.6 times the ANSI/BHMA A156.2 requirements-this lock ensures the highest level of entry prevention while maintaining egress. Its durability is further demonstrated withstanding an impressive 1,600 lbs of offset lever pull, ensuring continued security and functionality. The Sargent 3010XG05LPBSP is built to perform even under challenging conditions. It guarantees latch retraction with a 100 lb preload and successfully operates on warped doors, overcoming latch bind issues. Tested to endure over 100 vertical impacts, this lock excels in demanding environments, achieving a UL Cycle test of 20 million cycles. With a refined Black Suede Powder Coat finish, the lock features a P lever design, L rose, and a 2-3/4" backset. It fits doors ranging from 1-3/4" to 2" thick and includes a UL and cUL 3-hour fire rating. Backed by a 7-year limited warranty, the Sargent 3010XG05LPBSP is a reliable solution for securing your space with style and strength.

Entry Office (F109) Cylindrical Lever Lock Grade 1 with P Lever and L Rose with Schlage Prep and ASA Strike Black Suede Powder Coat Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
