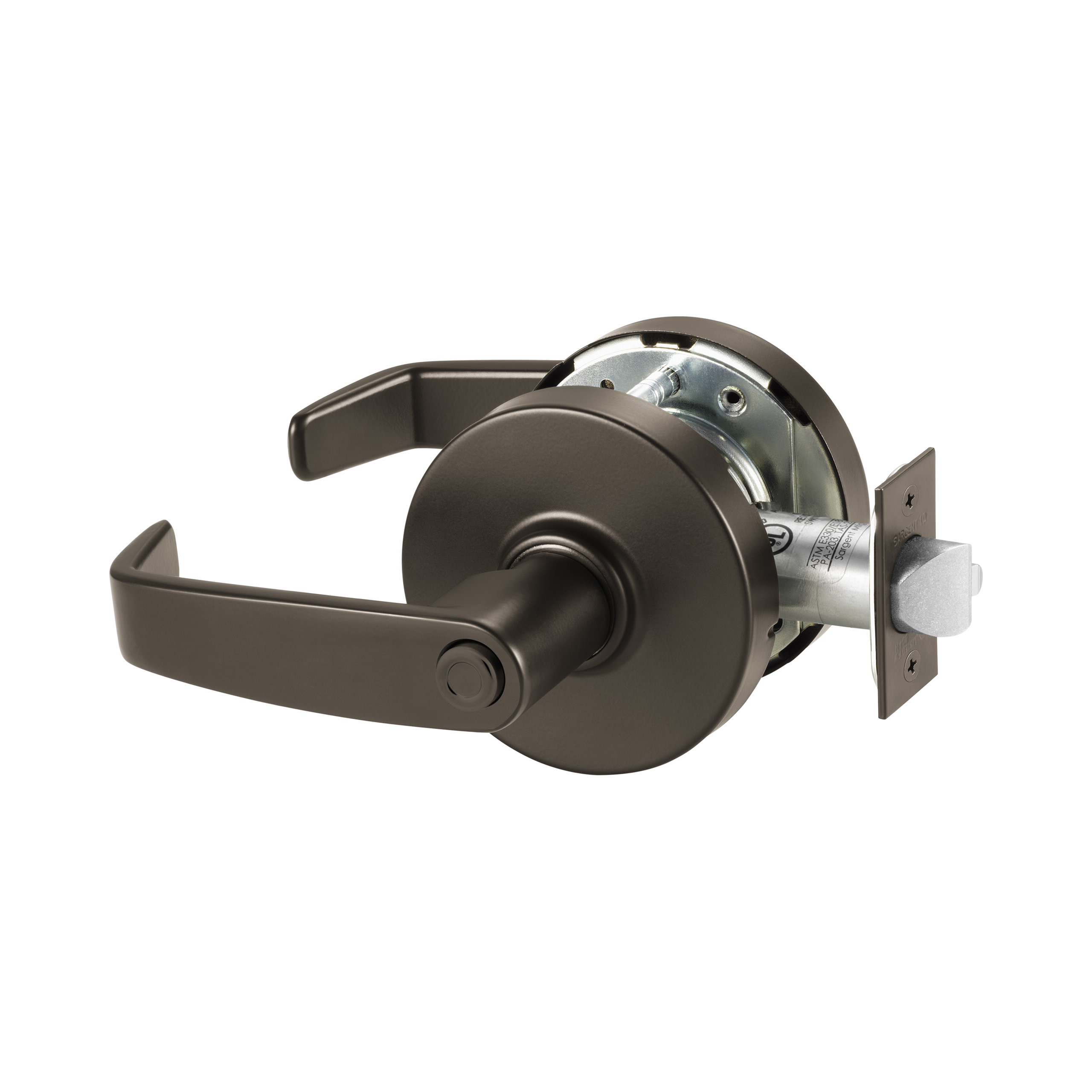

Sargent 3010XG17LB10BE F87 Double Cylinder Lever Lock Grade 1, Dark Bronze, Schlage Prep

Sargent 3010XG17LB10BE Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock Grade 1 is designed for maximum security in institutional settings. This robust lockset features a B lever and L rose, finished in durable dark bronze, ensuring both aesthetic appeal and resilience. It is built to withstand significant force, preventing unauthorized entry while allowing egress under stressful conditions. With a remarkable ability to resist over 3,100 in-lb of locked lever torque and 1,600 lbs of offset lever pull, this lock exceeds ANSI/BHMA A156.2 standards by substantial margins. Its latch retraction is reliable with a 100 lb preload, effectively functioning even on warped doors or those with latch bind. The Sargent 3010XG also endures more than 100 vertical impacts, showcasing its reliability in high-traffic environments. Designed for doors ranging from 1-3/4" to 2" thick, this lockset is compatible with a 2-3/4" backset and features a 2-1/8" crossbore size. It comes with a 7-year limited warranty, underscoring the manufacturer's commitment to quality. Certified by UL and cUL with a 3-hour fire rating, the Sargent 3010XG17LB10BE is a trusted choice for enhancing security in commercial and institutional buildings.

Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock Grade 1 with B Lever and L Rose with Schlage Prep and ASA Strike Dark Bronze Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
