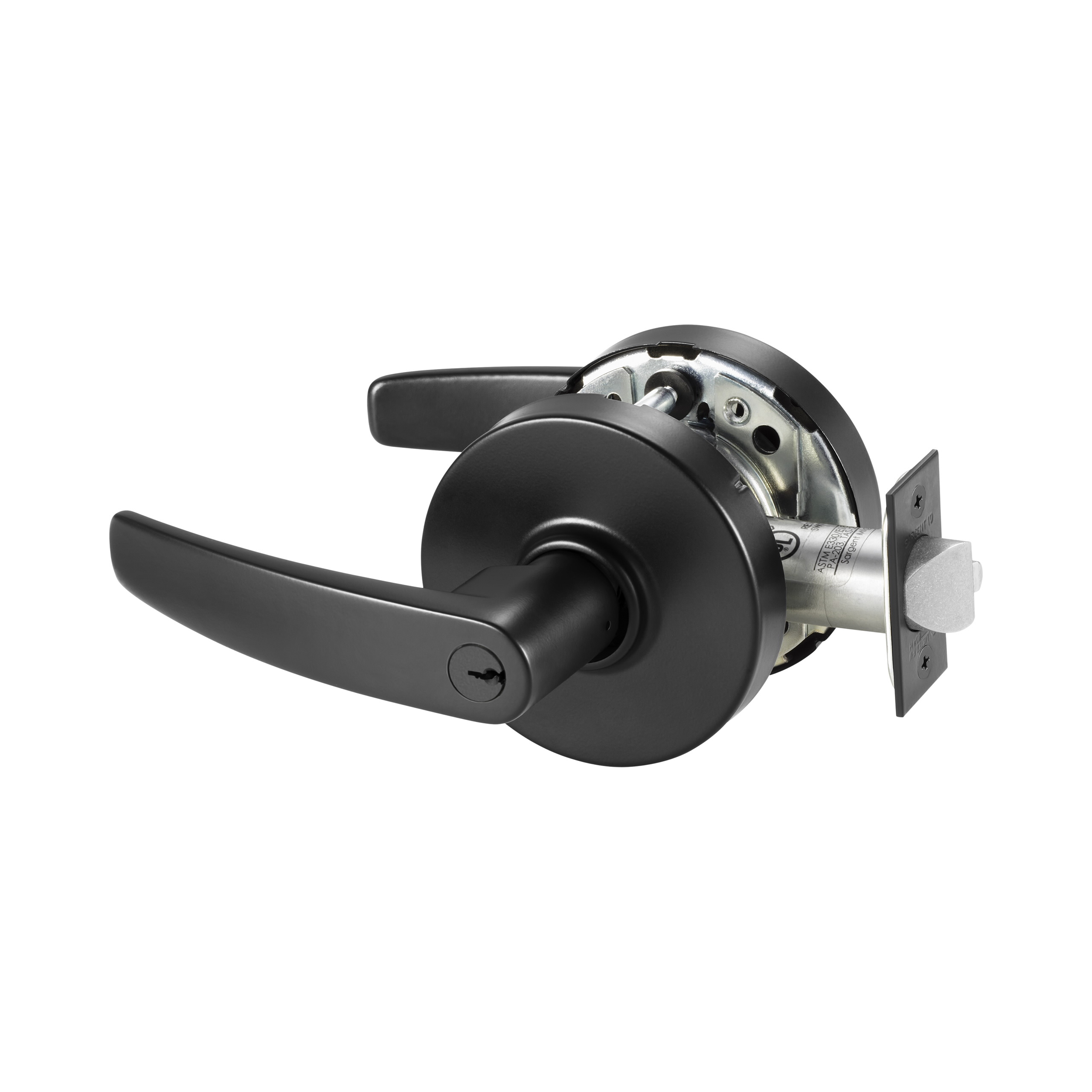

Sargent 3010XG17LBBSP F87 Double Cylinder Lever Lock Grade 1, B Lever, L Rose, Black Suede Finish

Sargent 3010XG17LBBSP Utility Asylum Institutional Double Cylinder Cylindrical Lever Lock Grade 1 combines superior security and durability. Designed for commercial, healthcare, and industrial environments, this lockset meets the rigorous demands of institutional applications. Engineered to withstand a staggering 3,100 in-lb locked lever torque and 1,600 lbs offset lever pull, it far exceeds ANSI/BHMA A156.2 standards, ensuring robust performance against forced entry. The lock's design allows for smooth latch retraction even under 100 lbs of preload, making it reliable for warped doors or those with latch bind. With a UL Cycle test verified for 20 million cycles, this lockset guarantees long-lasting use. This model features a B Lever and L Rose, finished in a sleek Black Suede Powder Coat, enhancing both aesthetics and corrosion resistance. It is compatible with 2-3/4" backset doors ranging from 1-3/4" to 2" thick, and includes an ASA strike for added security. The 4-9/16" lever projection and 2-1/8" bore size contribute to its functional elegance. With a 7-year limited warranty, Sargent's 3010XG17LBBSP is a smart choice for those prioritizing safety and efficiency in their locking solutions.

Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock Grade 1 with B Lever and L Rose with Schlage Prep and ASA Strike Black Suede Powder Coat Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
