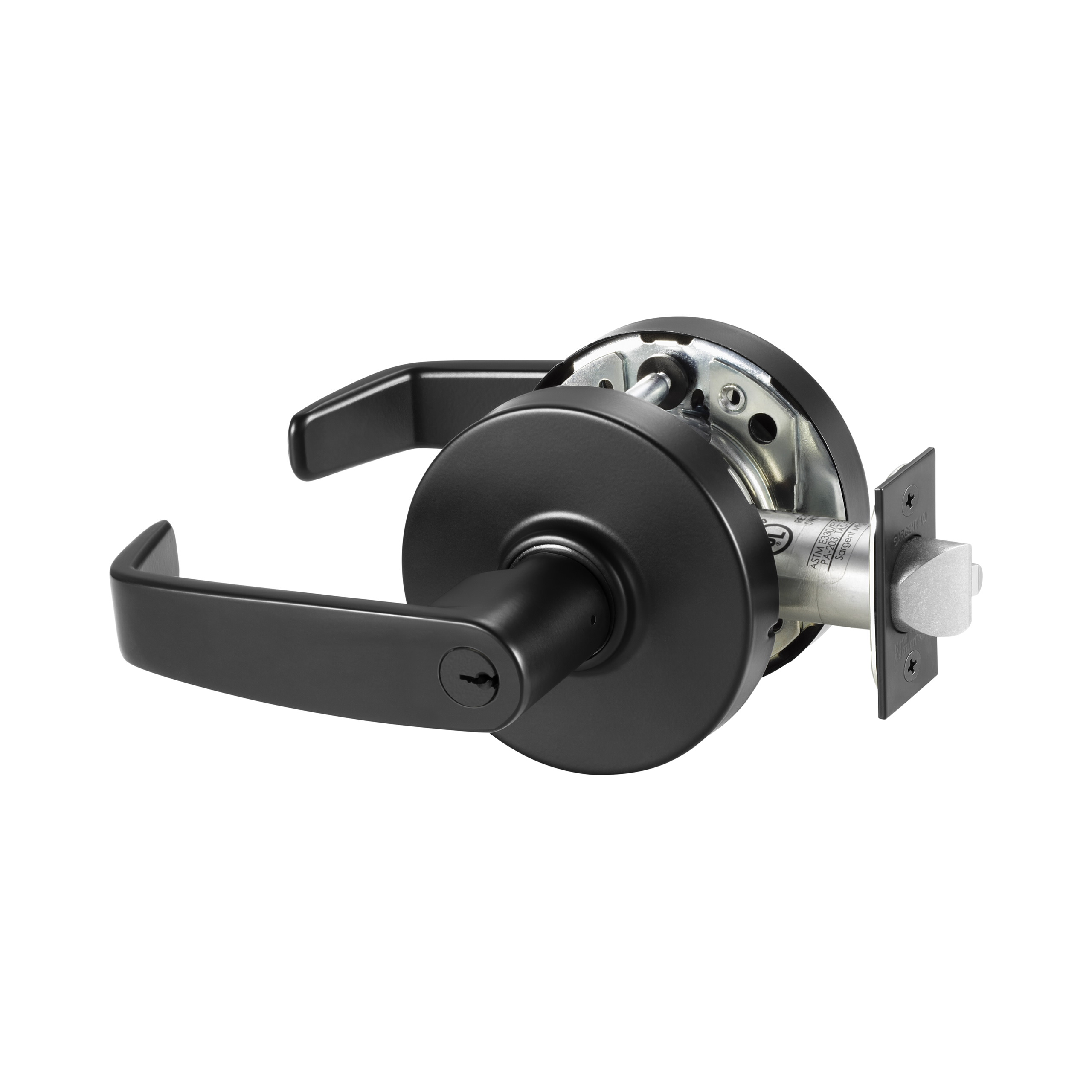

Sargent 3010XG17LLBSP F87 Institutional Double Cylinder Lever Lock Grade 1, Black Suede Finish

Sargent 3010XG17LLBSP Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock Grade 1 combines robust security with user-friendly design. This lock features a distinctive L lever and L rose, finished in a sleek Black Suede Powder Coat that complements modern architectural aesthetics. Designed for demanding environments, it resists over 3,100 in-lb of locked lever torque, exceeding ANSI/BHMA A156.2 standards by 2.6 times. Withstanding a staggering 1,600 lbs of offset lever pull, this lock continues to prohibit unauthorized entry, ensuring safety and security in institutional settings. The Sargent 3010XG17LLBSP also guarantees latch retraction under a 100 lb preload, maintaining functionality even in warped doors or those with latch bind. Equipped with a UL Cycle verification of 20 million cycles, this lock is built to last. It features an ergonomic 4-1/2" lever with a 2-15/16" projection, suitable for doors ranging from 1-3/4" to 2" thick, and a 2-3/8" backset. The ASA strike, measuring 4-7/8" with a 1-1/4" lip, ensures seamless installation. Backed by a 7-year limited warranty, the Sargent 3010XG17LLBSP is an ideal choice for commercial, healthcare, and educational facilities seeking reliable security solutions.

Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock Grade 1 with L Lever and L Rose with Schlage Prep and ASA Strike Black Suede Powder Coat Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
