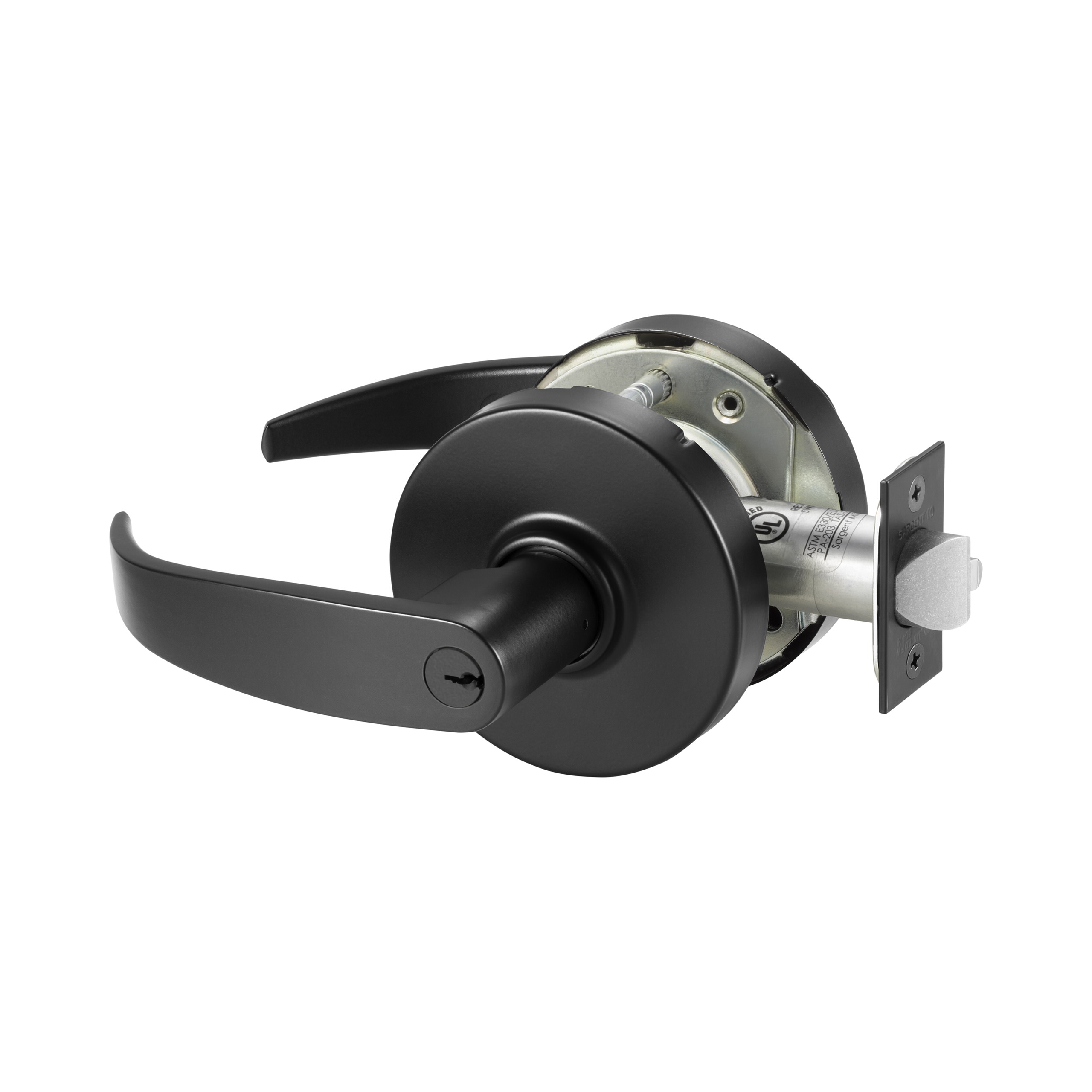

Sargent 3010XG17LPBSP F87 Double Cylinder Lever Lock Grade 1, Schlage Prep, Black Suede Finish

Sargent 3010XG17LPBSP Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock is a robust solution designed for high-security applications. This Grade 1 lockset features a P Lever and L Rose configuration, making it an excellent choice for institutional settings. The lock is engineered to withstand more than 3,100 in-lb locked lever torque, significantly exceeding ANSI/BHMA A156.2 requirements, ensuring durability and reliability. Constructed with a zinc material and finished in a sleek Black Suede Powder Coat, this lock not only meets aesthetic standards but also provides exceptional resistance to wear. It offers impressive performance against forced entry, withstanding 1,600 lbs of offset lever pull and maintaining security even after more than 100 vertical impacts. The Sargent 3010XG17LPBSP guarantees smooth operation with a 100 lb preload, accommodating warped doors or latch bind scenarios. This lockset is UL listed with a 3-hour fire rating, ensuring safety in critical environments. Designed to fit doors ranging from 1-3/4" to 2" thick, it comes with a 2-3/4" backset and a 2-1/8" crossbore size. Backed by a 7-year limited warranty, the Sargent 3010XG17LPBSP is a reliable option for any commercial, healthcare, or educational facility.

Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock Grade 1 with P Lever and L Rose with Schlage Prep and ASA Strike Black Suede Powder Coat Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
