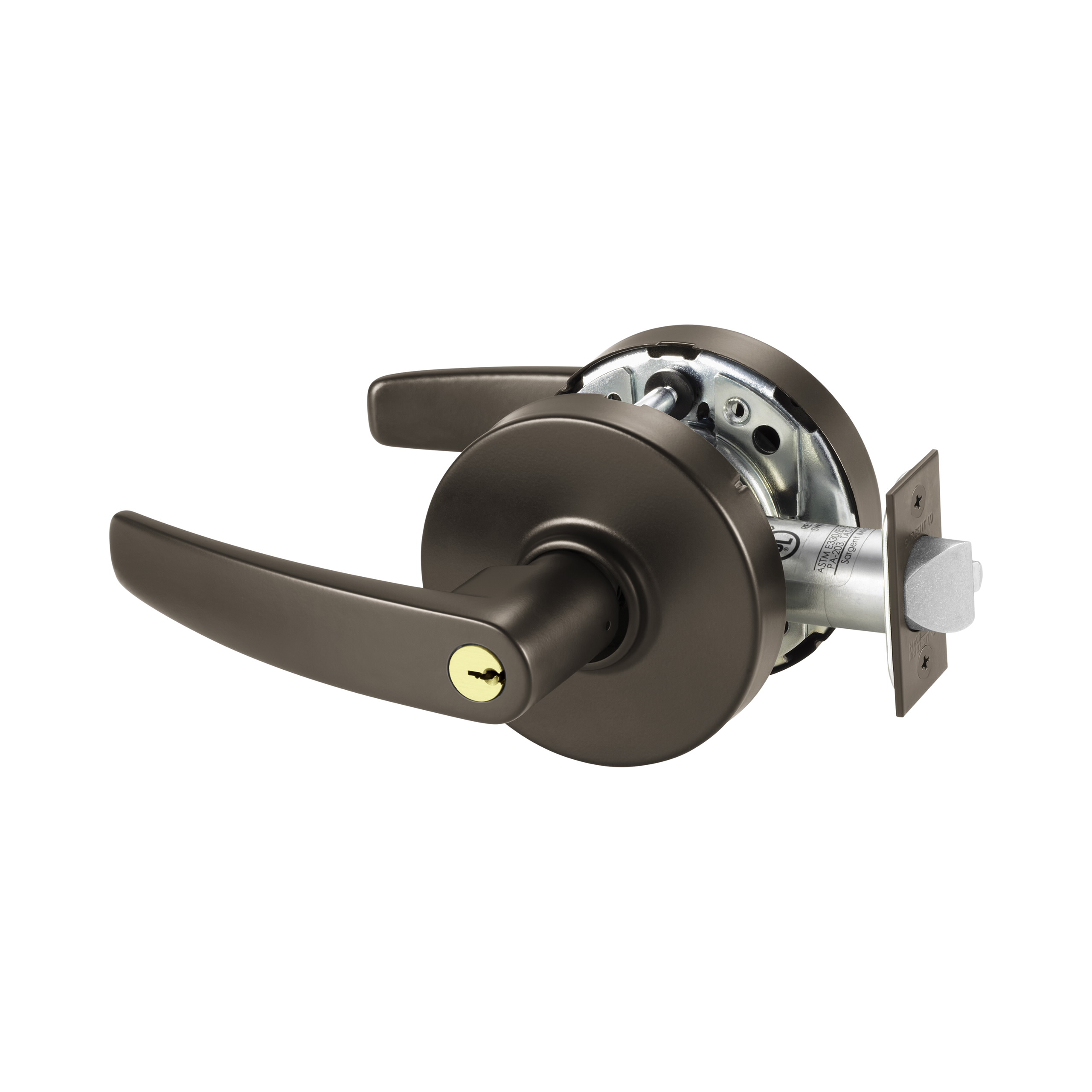

Sargent 3010XG54LB10BE F90 Grade 1 Cylindrical Lever Lock, B Lever, L Rose, Dark Bronze Finish

Sargent 3010XG54LB10BE Corridor, Dormitory (F90) Cylindrical Lever Lock offers robust security and reliability for a variety of building applications. This Grade 1 lockset is engineered to withstand demanding conditions, featuring a B lever design and L rose, complemented by a sleek dark bronze finish (US10BE). With a 2-3/4" backset and a crossbore size of 2-1/8", it is suitable for doors ranging from 1-3/4" to 2" thick. Designed for exceptional performance, the lock prevents entry against over 3,100 in-lb of locked lever torque, significantly exceeding ANSI/BHMA A156.2 requirements. It can endure an offset lever pull of 1,600 lbs and maintains operation even with a 100 lb preload, ensuring functionality in warped doors or those with latch bind. The lock has successfully completed the UL Cycle Above and Beyond test, achieving 20 million cycles (Verification ID: V584148), which underscores its durability. Equipped with an ASA strike and a latch faceplate dimension of 1-1/8" x 2-1/4", this lockset combines form and function seamlessly. Backed by a 7-year limited warranty, the Sargent 3010XG54LB10BE is a dependable choice for dormitory and corridor applications, ensuring safety and peace of mind.

Corridor, Dormitory (F90) Cylindrical Lever Lock Grade 1 with B Lever and L Rose with Schlage Prep and ASA Strike Dark Bronze Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
