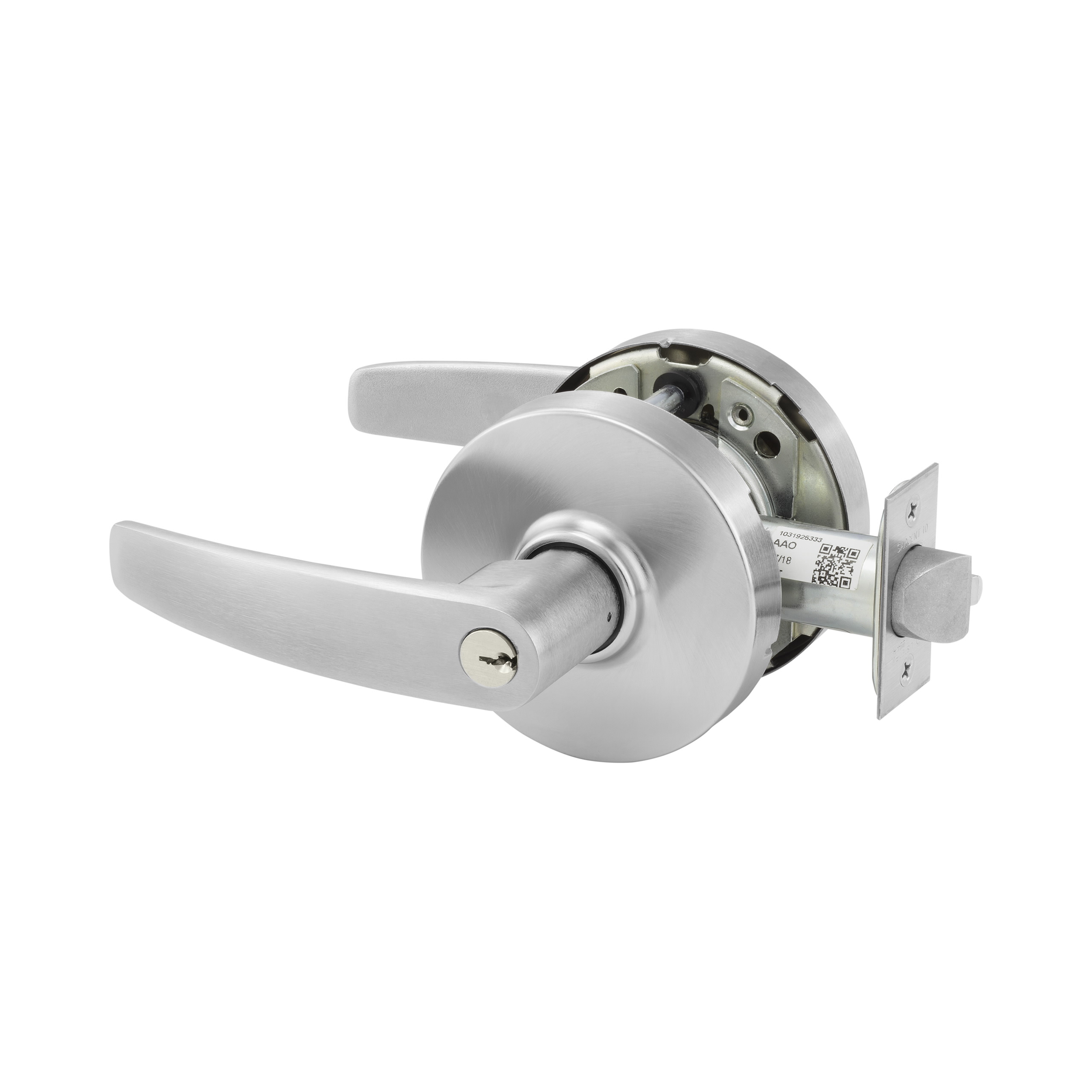

Sargent 3010XG54LB26D Dormitory Lever Lock Grade 1 combines durability with modern design, making it an ideal choice for institutional settings. This mechanical commercial lockset features a B lever design and an L rose configuration, ensuring both functionality and a sleek appearance in satin chrome finish (26D). Designed for a 2-3/4" backset, the lock is suitable for doors ranging from 1-3/4" to 2" thick, accommodating a variety of installation needs. Its 2-1/8" crossbore size and 4-9/16" lever length with a 2-15/16" projection provide a comfortable grip and ease of use. The lockset is reversible, allowing for flexible handing options. Equipped with an ASA strike and featuring a latch faceplate dimension of 1-1/8" x 2-1/4", this product meets rigorous standards, holding a UL Listing for 3-hour doors. The Sargent 3010XG54LB26D is not only built to last but also comes with a 7-year limited warranty, offering peace of mind for building professionals and homeowners alike. Whether you're outfitting a dormitory or a commercial space, this lockset exemplifies security, reliability, and contemporary style.
Dormitory Lever Lock Grade 1 with B Lever and L Rose with Schlage Prep and ASA Strike Satin Chrome Finish
Backset: 2-3/4" Backset
Category: Mechanical Commercial Locksets
Crossbore Size: 2-1/8" Bore
Design: B Lever
Dimension: 4-9/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: 26D
Function: Dormitory
Handing: Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: B Lever
Manufacturer Warranty: 7 Year Limited Warranty
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: L Rose
Series: 10X Line Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Ul Listing Type: UL Listed 3 Hour Door
