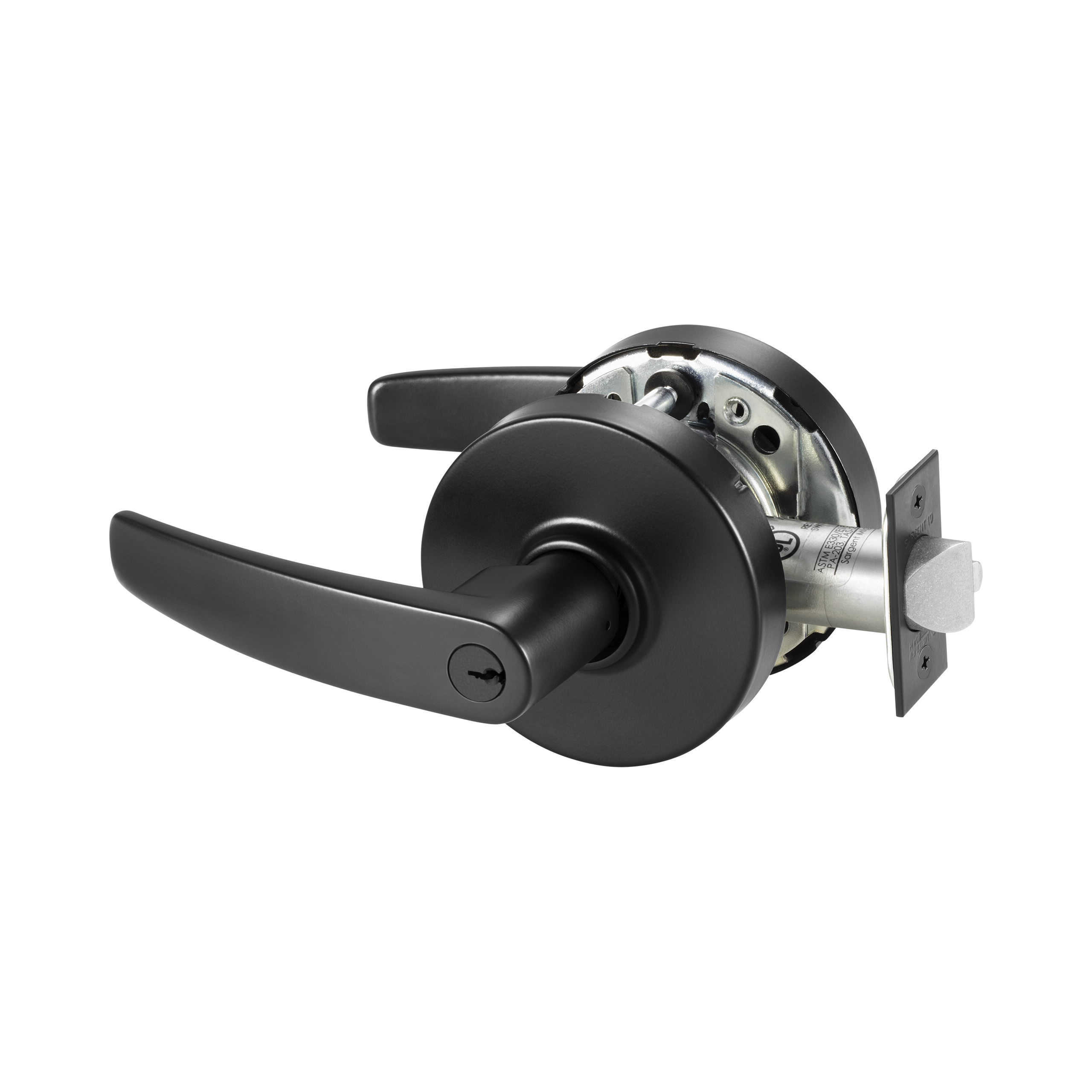

Sargent 3010XG54LBBSP F90 Grade 1 Cylindrical Lever Lock, B Lever, L Rose, Schlage Prep, Black Suede

Sargent 3010XG54LBBSP Corridor, Dormitory (F90) Cylindrical Lever Lock Grade 1 features a robust design tailored for high-security environments such as dormitories and other commercial spaces. Equipped with a B Lever and L Rose, this lockset showcases a sleek Black Suede Powder Coat finish that complements various architectural styles. Engineered to exceed performance standards, this lockset can withstand over 3,100 in-lb of locked lever torque, far surpassing ANSI/BHMA A156.2 requirements. Its durability is further emphasized with the ability to endure 1,600 lbs of offset lever pull and maintain egress after more than 100 vertical impacts. The unit ensures reliable latch retraction even under 100 lbs of preload, accommodating warped doors or latch bind situations. With a 2-3/4" backset, a 2-1/8" crossbore size, and compatibility with door thicknesses ranging from 1-3/4" to 2", the Sargent 3010XG54LBBSP is designed for versatility. The 4-9/16" lever features a 2-15/16" projection, and its ASA strike ensures secure installation. Backed by a 7-year limited warranty, this lockset is UL and cUL listed with a 3-hour fire rating, making it an optimal choice for safety-conscious projects.

Corridor, Dormitory (F90) Cylindrical Lever Lock Grade 1 with B Lever and L Rose with Schlage Prep and ASA Strike Black Suede Powder Coat Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
