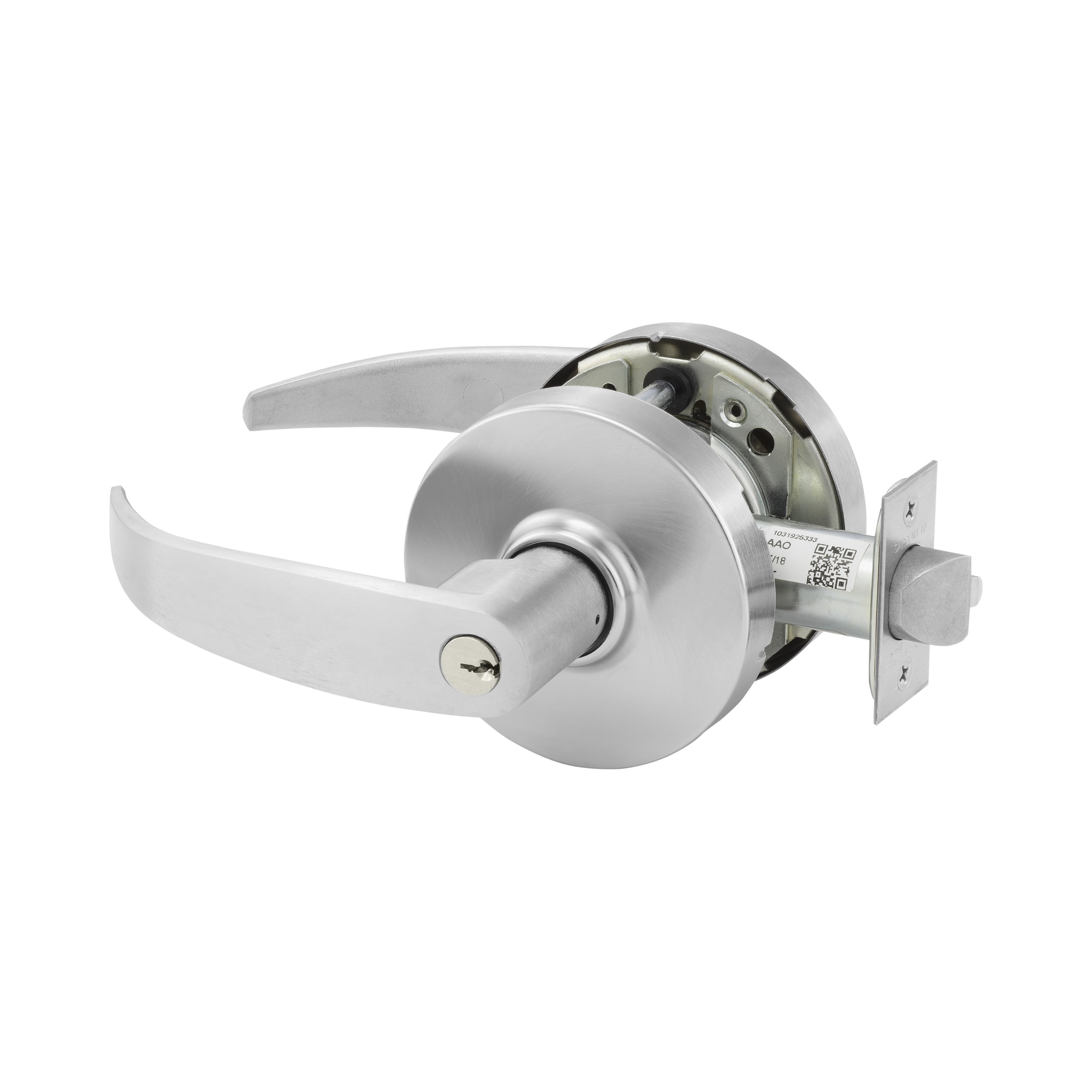

Sargent 3010XG54LP26D Dormitory Lever Lock Grade 1 with P Lever and L Rose with Schlage Prep and ASA Strike in Satin Chrome Finish is designed to meet the rigorous demands of dormitory environments while ensuring a blend of security and style. This Grade 1 mechanical lockset features a robust P Lever design, providing ease of use for all occupants. With a 2-3/4" backset and a 2-1/8" crossbore size, the lock is compatible with standard door installations, accommodating doors ranging from 1-3/4" to 2" thick. The satin chrome finish not only enhances its aesthetic appeal but also ensures durability against daily wear and tear. The reversible handing allows for versatile installation options, tailored to meet specific door configurations. The lockset is equipped with an ASA strike, which measures 4-7/8" with a 1-1/4" lip, ensuring a secure fit and reliable performance. Additionally, the 7-year limited warranty underscores the manufacturer's commitment to quality and longevity. As part of the 10X Line Series, the Sargent 3010XG54LP26D is UL Listed for 3-hour doors, making it an excellent choice for high-traffic areas that require both safety and style.
Dormitory Lever Lock Grade 1 with P Lever and L Rose with Schlage Prep and ASA Strike Satin Chrome Finish
Backset: 2-3/4" Backset
Category: Mechanical Commercial Locksets
Crossbore Size: 2-1/8" Bore
Design: P Lever
Dimension: 5-1/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: 26D
Function: Dormitory
Handing: Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: P Lever
Manufacturer Warranty: 7 Year Limited Warranty
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: L Rose
Series: 10X Line Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Ul Listing Type: UL Listed 3 Hour Door
