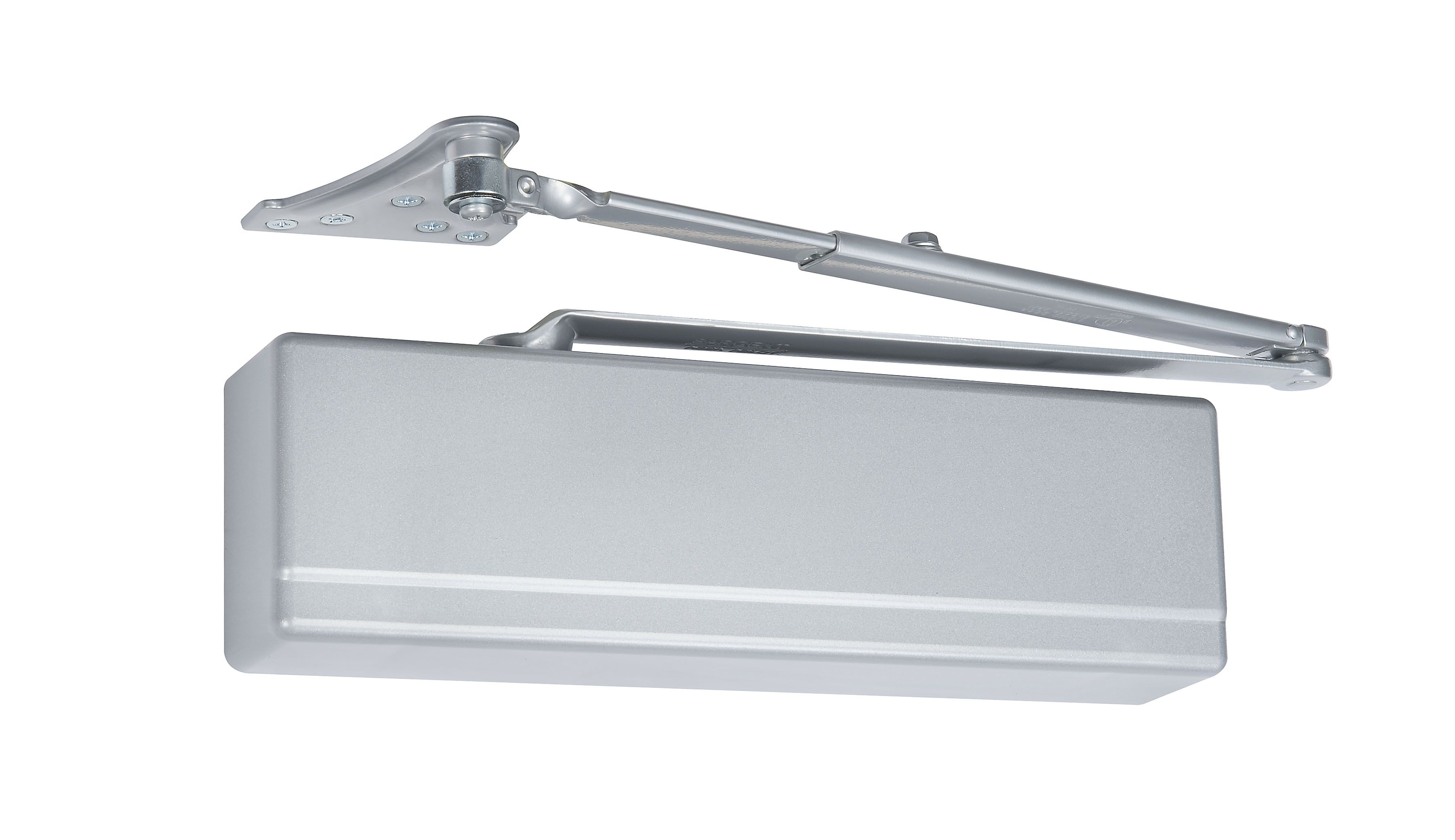

Sargent 351UOEN Universal Arm Pack Powerglide Door Closer Sprayed Aluminum Enamel Finish

Your Price: $595.84

Retail Price:$931.000

Your Savings:$335.16(36%)

Part Number : SAR_351UOEN

Availability: 509 In Stock

Quantity

Description

Sargent 351UOEN Universal Arm Pack Powerglide Door Closer Sprayed Aluminum Enamel Finish

Sargent 351UOEN Universal Arm Pack Powerglide Door Closer Sprayed Aluminum Enamel Finish

10-year warranty
Versatile mounting applications permit standard, top jamb, parallel and track installations
Adjustable spring power allows 351 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory
One door closer body for all applications. All 351 are non-handed.
Meets ADA requirements in all applications except Push Side Track application
High impact non-corrosive plastic covers standard, metal optional. Both secured with two machine screws
All weather capabilities
Captivated brass valves
Interchangeable forged steel arms
Standard and parallel arms
Push and pull track arms (including double egress)
Heavy duty forged steel arms are finely finished and interchangeable between SARGENT 351, 1431 and 281 Series Innovation
Standard pressure relief valves for both opening and closing cycles protect the door & frame from damage caused by abuse
Heat Treated Full Closed Rack and Pinion Provide Control from the Full Open Position
Self Sticking Templates Supplied for Most Applications
Non Handed
All Weather Fluid Allows Closer to Operate Effectively in Extreme Temperatures Without Readjustment
1-1/2" Diameter Piston for Superior Door Control
ANSI/BHMA A156.4 Grade 1
Conforms to UL10C and UBC for positive pressure fire test
UL Listed and cUL Listed to Canadian Safety Standards listed for use on fire doors

Attributes

Alt Part No: 117491

Alternate Codes: 117491, 351UOEN, 596965

Application: CM

Arm Function: Non-Hold Open

Arm Type: Universal Arm

Category: Door Closers, Surface Mount Closers, Surface Mount Misc. Parts

Clazz: SG

Closer Type: Mechanical, Surface

Color: Sprayed Aluminum Enamel

Country of Origin: Usa

Door Application: Surface Mount Closers

Finish: Sprayed Aluminum Enamel

Finish Color: Satin Aluminum

Grade: Grade 1

Handing: Non-Handed

Height: 4.000000000

Item Class Description: Universal Arm Pack Powerglide Door Closer

Item Type Keyword: Closer

Length: 14.250000000

Maximum Opening: 180°

Mounting: Universal Arm

Number Of Inners: 1

Sales Unit: EA

Series: 351

Spring Tension: Adjustable 1 - 6

Subtype: Surface Mount

Supplier: Sargent

Type: Door Closers and Accessories

Weight: 8.490000000000

Width: 5.130000000
