Sargent 43 LA 32D Mortise Cylinder

Images may not represent actual product and finish

Your Price: $70.59

Retail Price:$130.000

Your Savings:$59.41(46%)

1-3/8" Mortise Cylinder, LA Keyway, Satin Stainless Steel

Part Number

: SAR_43LA32D

Availability: 23 In Stock

Quantity

Description

Sargent 43 LA 32D Mortise Cylinder

Sargent mortise cylinders are made from solid brass and have a brass, bronze or stainless steel face cap avaialable in all architechtural finishes. They are furnished standard with number 97 rosette and compression spring. Optional collars and spacers are available and ordered separately. Sargent mortise cylinders are available in lengths ranging from 1-1/8" through 3", minimum length for 7-Pin is 1-1/4". They are provided standard with Sargent offset cam number 13-0664, other cams are available.

Benefits:
Flexible: Available in all Sargent cylinder formats.
Enhanced Security: Features: a factory-master keying system design.
Customizable: Offered in a wide variety of Finishes:.
Convenient: Available in mortise; rim; key-in knob and lever; and, large and small format removable core cylinders.
Certification:
Cylinders BHMA A156.5 Grade 1 (except hotel Functions:)
Technical Information:
Available in cylinder lengths 1-1/8" to 3" in 1/8" increments
Cylinder: Solid brass, 1-5/32"(29mm) diameter
Cap: Brass, bronze or stainless steel
Furnished standard with No.97 rosette and compression spring
6 pin standard; for 7 Pin specify (7 pin), size 42 minimum
No.41 cylinder not available in 7 pin
Mortise cylinder assemblies that are ordered without hardware are supplied with standard Sargent offset cam 13-0664
Cylinder Finishes: 3, 4, 9, 10, 10B, 10BE, 10BL, 15, 20D, 32, 32D or BSP
Plug Finishes: 4 or 15

Attributes

Ship via: Can Ship UPS

Alternate Codes: 43LA26D, 43LA32D, SAR43LA26D

Baa Qualified: Yes

Base Material: Stainless Steel

Cam Number: 13-0664

Cam Type: Sargent, Yale

Category: Cylinders, Key Blanks & Accessories, Lock Components, Etc., Lock Parts, Lock Sets, Mortise Cylinders

Country of Origin: Usa

Country of origin: USA

Cylinder Length: 1-3/8 In.

Cylinder Type: Mortise Cylinder

Door Application: Mortise Cylinders

Finish: 630/US32D

Finish Code: 32D

Finish Color: Satin Stainless Steel

Finish Description: Satin Stainless Steel

Keying: Keyed Different

Keys: Cut

Keyway: LA

Num Of Keys: 2

Num Pins: 6

Of Keys: 2

Origin: USA

Pack Height: 1.88"

Pack Length: 4.13"

Pack Qty: 1

Pack Volume: 18.37 in³

Pack Width: 2.38"

Pins: 6

Series: Mortise Cylinders

Ship Weight: 0.56 lbs.

Std Keyway: LA

Subtype: Mortise Cylinder

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Resources

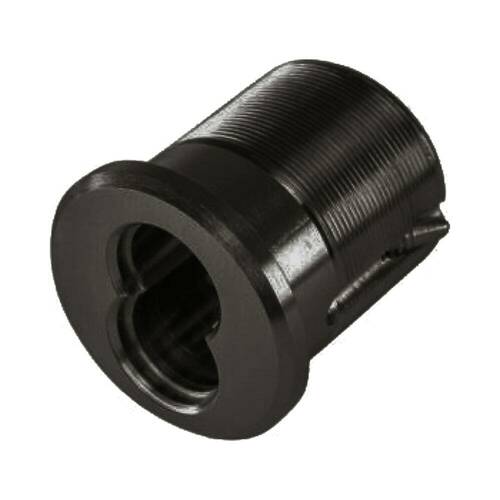

Best 1E74-C161RP3622 1-1/4" Mortise Cylinder

$65.34

13 In Stock

Buy

Schlage 09-900 118 612 NH L Series Classroom Turn 612

$113.24

0 Backorder Secures Price

Buy

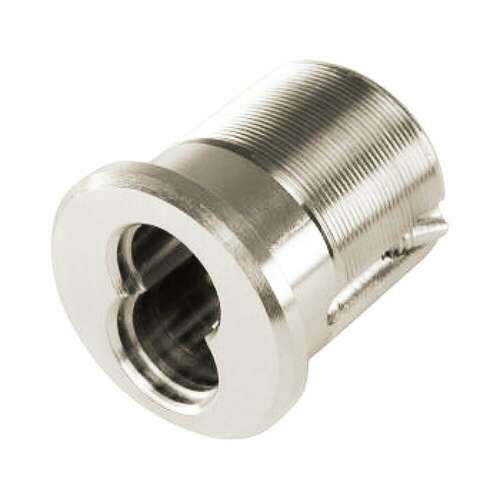

Best 1E7424C258RP3625 1.5" Mortise Cylinder

$96.09

0 Backorder Secures Price

Buy

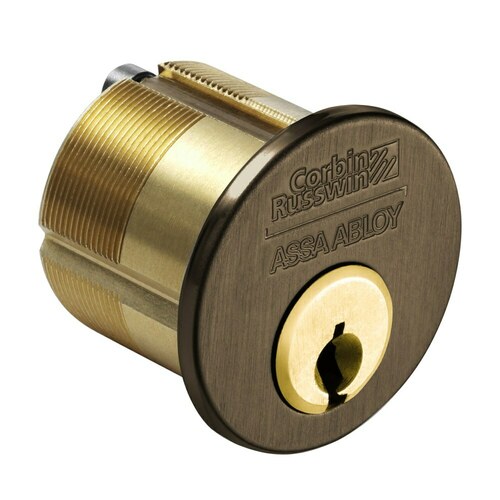

Corbin Russwin 1000-118-A01-6-D3 613 1-1/8" Mortise Cylinder
