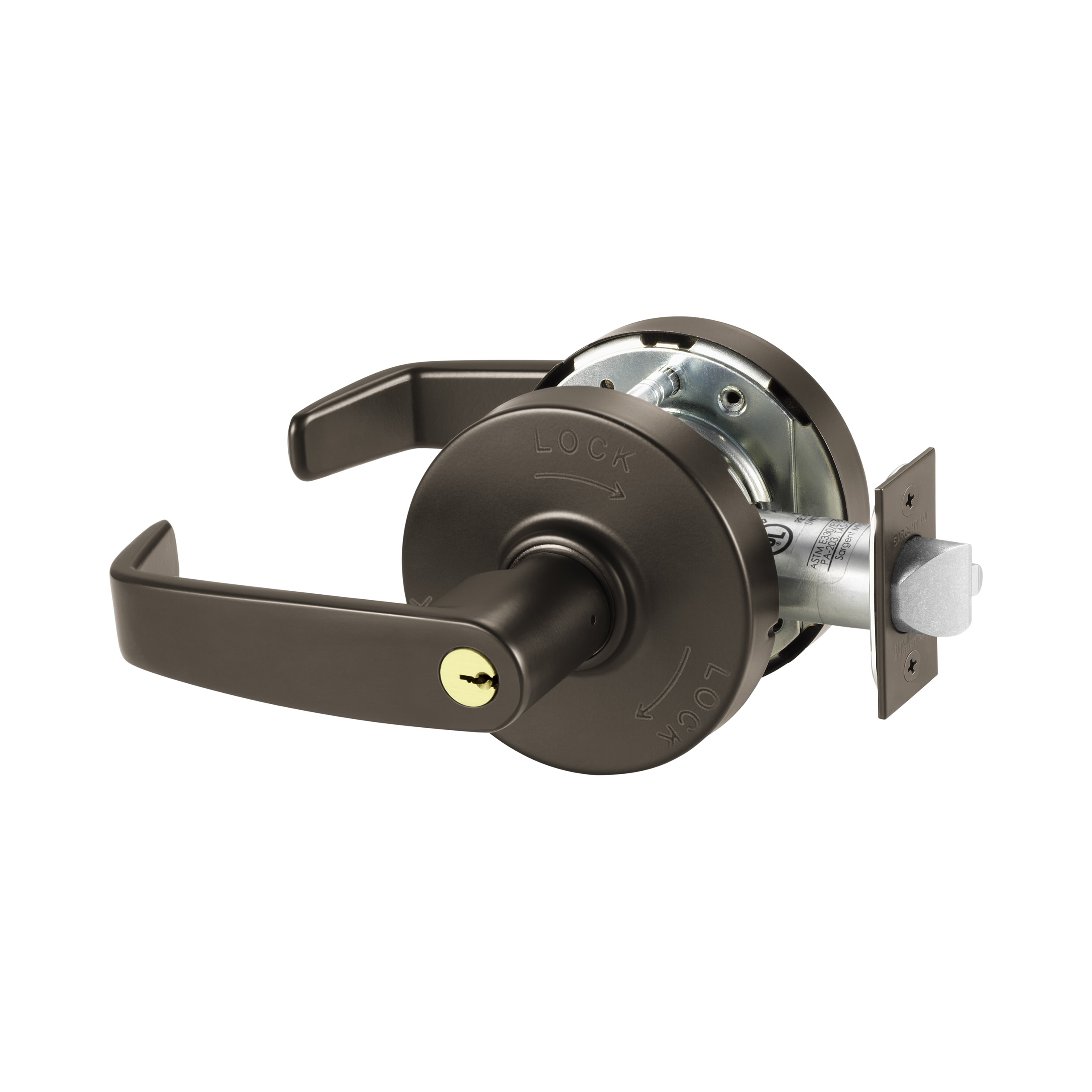

Sargent 60-10XG05 LL 10BE F109 Grade 1 Cylindrical Lever Lock, L Lever Rose, Dark Bronze Finish

Sargent 6010XG05LL10BE Entry Office (F109) Cylindrical Lever Lock combines robust security with elegant design, making it an ideal choice for commercial environments. This Grade 1 lockset features a durable L Lever and L Rose, finished in a sophisticated dark bronze (US10BE) that enhances any entryway. Designed for exceptional performance, it withstands over 3,100 in-lb of locked lever torque-2.6 times the ANSI/BHMA A156.2 requirements-ensuring long-lasting reliability. The lockset is engineered to endure 1,600 lbs of offset lever pull, maintaining its integrity and security after vertical impacts exceeding 100 hits. Additionally, it guarantees seamless latch retraction with a 100 lb preload, even in warped doors or those subject to latch bind. With a UL Cycle rating of 20 million cycles, this lockset exemplifies superior durability. Compatible with doors ranging from 1-3/4" to 2" thick, the Sargent 6010XG05LL10BE features a 2-3/4" backset and a 2-1/8" crossbore size. Its design includes a 4-1/2" lever with a 2-15/16" projection, paired with a 3-1/2" rose. Backed by a 7-year limited warranty, this lockset is a reliable investment for any entry office application.

Entry Office (F109) Cylindrical Lever Lock Grade 1 with L Lever and L Rose with Large Format IC Prep Less Core and ASA Strike Dark Bronze Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
