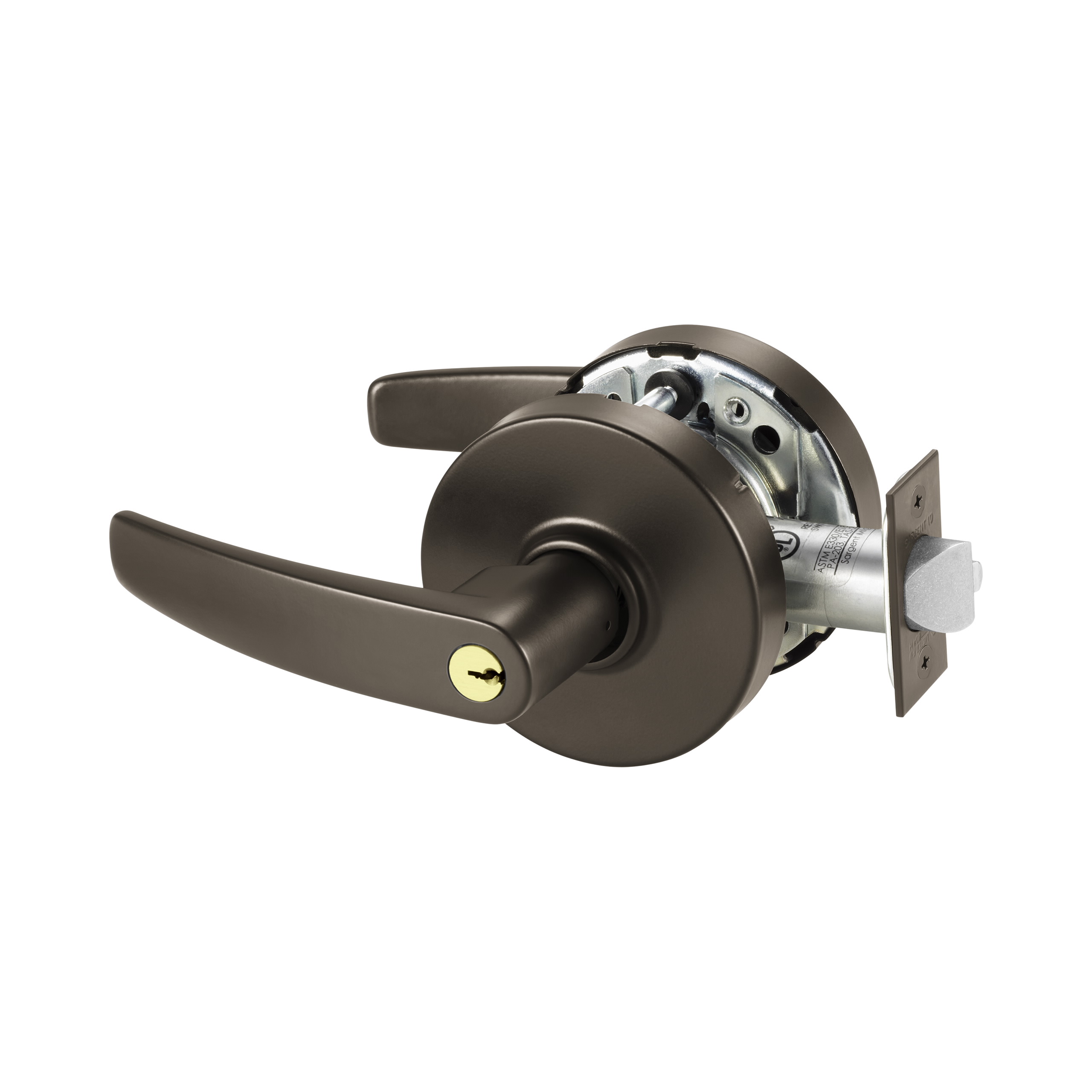

Sargent 60-10XG17 LB 10BE F87 Double Cylinder Grade 1 Lever Lock, Dark Bronze, IC Prep, ASA Strike

Sargent 6010XG17LB10BE Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock is engineered for superior security and durability, making it an ideal choice for institutional applications. This Grade 1 lock features a robust B lever design and L rose with a large format IC preparation, ensuring both functionality and aesthetics in any setting. The dark bronze finish (US10BE) adds a sleek touch while providing excellent resistance to wear. Built to withstand extreme conditions, this lock prevents entry and maintains egress against over 3,100 in-lb of locked lever torque-well beyond ANSI/BHMA A156.2 standards. It can endure an offset lever pull of 1,600 lbs and continues to function effectively even under a 100 lb preload, accommodating warped doors or latch bind issues. The lock has successfully completed a UL Cycle Above and Beyond test with an impressive 20 million cycles, ensuring reliability over time. Designed for doors ranging from 1-3/4" to 2" thick, the Sargent 6010XG17LB10BE features a 2-3/4" backset and a 2-1/8" crossbore size, with a latch faceplate dimension of 1-1/8" x 2-1/4". Complete with a 7-year limited warranty, this lockset represents the pinnacle of security hardware for demanding environments.

Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock Grade 1 with B Lever and L Rose with Large Format IC Prep Less Core and ASA Strike Dark Bronze Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
