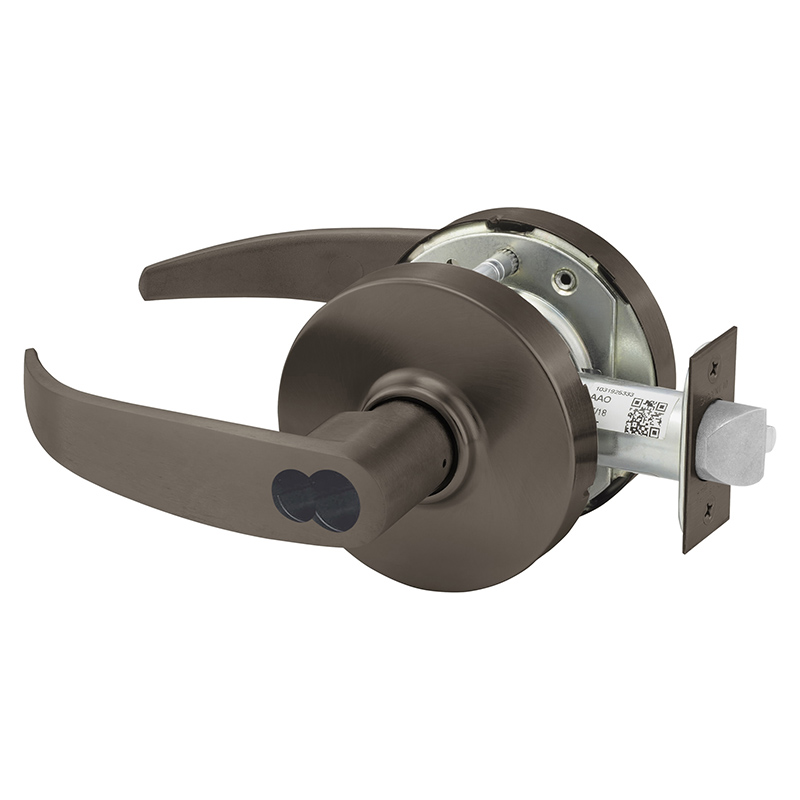

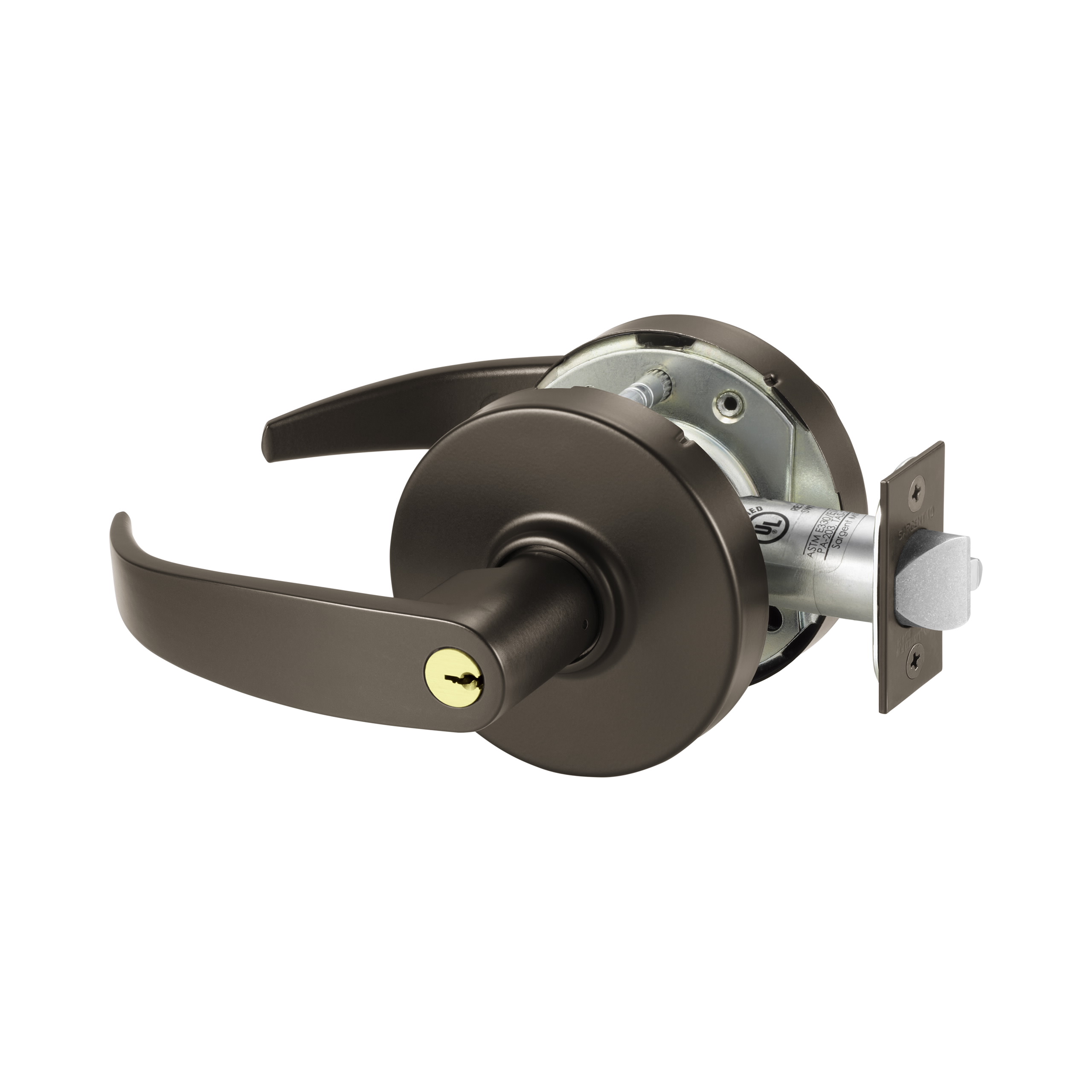

Sargent 60-10XG17 LP 10BE F87 Double Cylinder Lever Lock Grade 1, Dark Bronze, IC Prep, ASA Strike

Sargent 6010XG17LP10BE Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock Grade 1 combines durability and security in a sleek dark bronze finish. Designed for high-security environments, this lockset features a P Lever and L Rose, ensuring ease of access while maintaining stringent safety protocols. Built to withstand extreme conditions, it prevents entry and maintains egress against over 3,100 in-lb locked lever torque-significantly exceeding ANSI/BHMA A156.2 requirements. With a remarkable ability to endure 1,600 lbs of offset lever pull and more than 100 vertical impacts, this lockset is engineered for longevity and reliability. The latch retraction remains effective even under a 100 lb preload, accommodating warped doors and minimizing latch binding. The Sargent 6010XG17LP10BE is suitable for door thicknesses ranging from 1-3/4" to 2" and features a 2-3/4" backset and a 2-1/8" crossbore size. Its robust construction includes a zinc material composition, providing both strength and a modern aesthetic. UL and cUL certified with a 3-hour fire rating, this lockset ensures peace of mind in various institutional applications. Backed by a 7-year limited warranty, it is a reliable choice for commercial and institutional settings.

Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock Grade 1 with P Lever and L Rose with Large Format IC Prep Less Core and ASA Strike Dark Bronze Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
