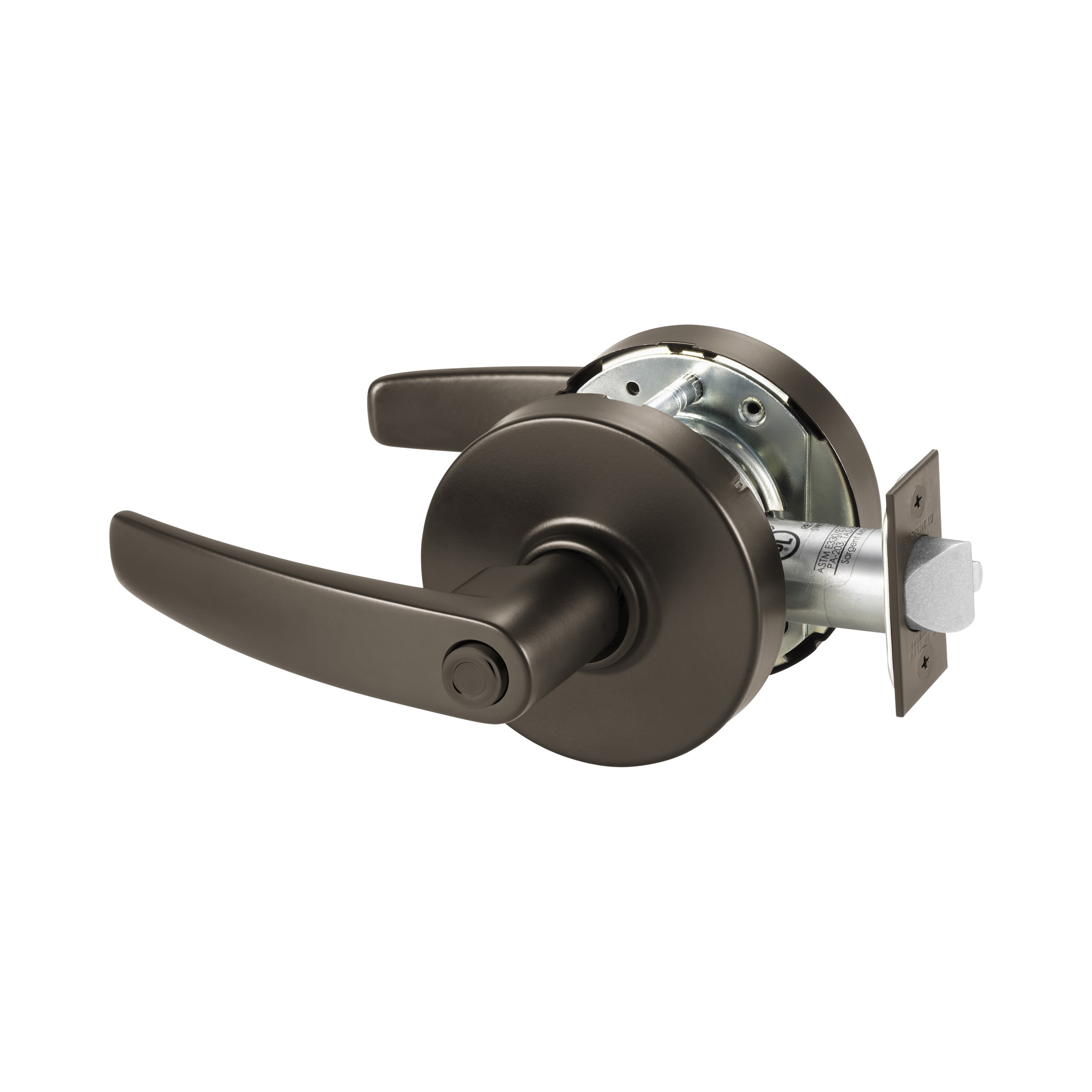

Sargent 60-10XG24 LB 10BE F82A Grade 1 Cylindrical Lever Lock, B Lever, L Rose, Dark Bronze FinishSargent 6010XG24LB10BE Entrance or Office (F82A) Cylindrical Lever Lock is a Grade 1 locking solution designed for durability and high-performance security. This lock features a B lever and L rose, finished in a sophisticated dark bronze, making it an ideal choice for both aesthetic appeal and functionality in commercial environments. Engineered to withstand over 3,100 in-lb of locked lever torque-2.6 times the ANSI/BHMA A156.2 requirements-this lock ensures exceptional resistance against forced entry. Additionally, it can endure 1,600 lbs of offset lever pull, significantly exceeding standard requirements, and maintains its integrity even after more than 100 vertical impacts. The 6010XG series guarantees smooth operation with a 100 lb preload, accommodating warped doors or latch bind scenarios effectively. With a UL Cycle test validated at 20 million cycles, this lock is built for longevity, backed by a 7-year limited manufacturer warranty. Designed for doors ranging from 1-3/4" to 2" thick and equipped with a 2-3/4" backset, it features a crossbore size of 2-1/8" and a latch faceplate dimension of 1-1/8" x 2-1/4". The ASA strike enhances its reliability, making the Sargent 6010XG24LB10BE an essential choice for secure entrances in various building types.
Entrance or Office (F82A) Cylindrical Lever Lock Grade 1 with B Lever and L Rose with Large Format IC Prep Less Core and ASA Strike Dark Bronze Finish
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
- Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
- UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
- Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
- Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
- Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
Attributes
Alternate Codes: 60-10XG24-LB-10BE, 6010XG24LB10BE
Backset: 2-3/4" Backset
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore
Dimension: 4-9/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Finish: Dark Bronze
Finish Code: US10BE
Finish Description: Dark Oxidized Bronze
Fire Rated: 3 Hours {A}
Function: Entry
Grade: Grade 1
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: B Lever
Limited Warranty: 10 Year Limited Warranty
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: L Rose
Series: 10X Line Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL 3 Hour Fire Rating
