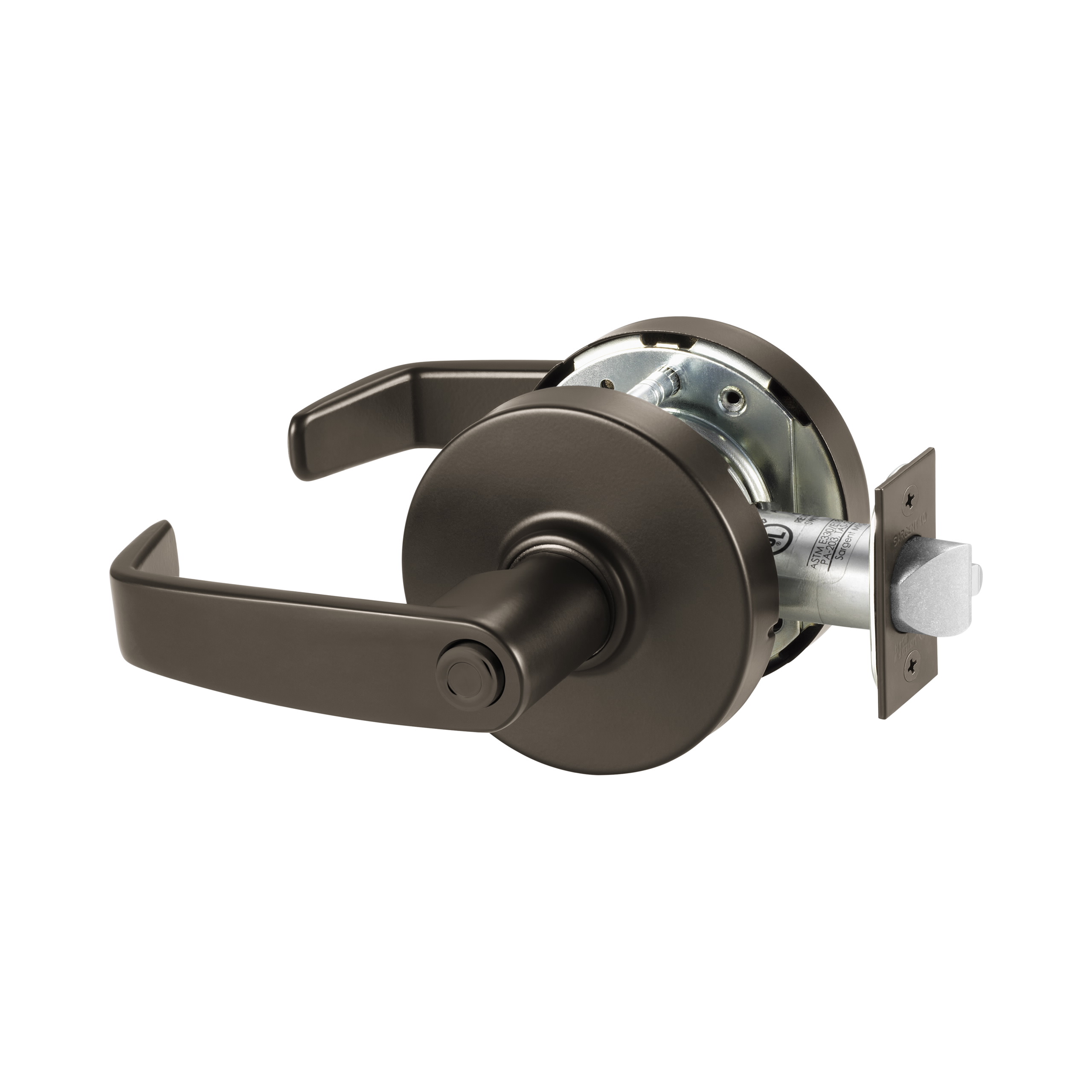

Sargent 6010XG24LL10BE Entry Cylindrical Lock is a Grade 1 mechanical lockset designed for durability and performance in commercial applications. With its L Lever and L Rose design, this lock not only enhances security but also adds a sleek aesthetic to any entryway. The lock features a large format IC prep and comes with an ASA strike, ensuring a reliable fit and function. Engineered for a broad door range of 1-3/4" to 2", the Sargent 6010XG is versatile, accommodating various installations. Its 4-1/2" lever offers a comfortable grip and a 2-15/16" projection for easy operation. The 3-1/2" rose adds an elegant touch, while the dark bronze finish (10BE) provides a sophisticated appearance and excellent resistance to wear. Installation is straightforward with a 2-3/4" backset and a crossbore size of 2-1/8". This lock is reversible, allowing for flexible handing to suit your specific needs. Plus, it is UL Listed for 3-hour doors, giving peace of mind in safety. Backed by a 7-year limited warranty, the Sargent 6010XG24LL10BE ensures long-lasting reliability and protects your property effectively.
Attributes
Alternate Codes: 60-10XG24-LL-10BE, 6010XG24LL10BE
Ansi: F82A
Ansi Function: F82A - Entry
Backset: 2-3/4" Backset
Base Material: Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Type: LFIC Disposable Construction Core
Cylinders Present: Single Cylinder
Dimension: 4-1/2" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4" to 2"
Finish: Dark Bronze
Finish Code: 10BE
Finish Description: Dark Oxidized Bronze
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Entrance
Function Family: Entrance
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: L Lever
Lever Knob Design Name: L
Leverknob Design: L Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Entry
Manufacturer Warranty: 7 Year Limited Warranty
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: L Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X Line Series
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 10-2000
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL Listed 3 Hour Door
Unit of Measure: Each
