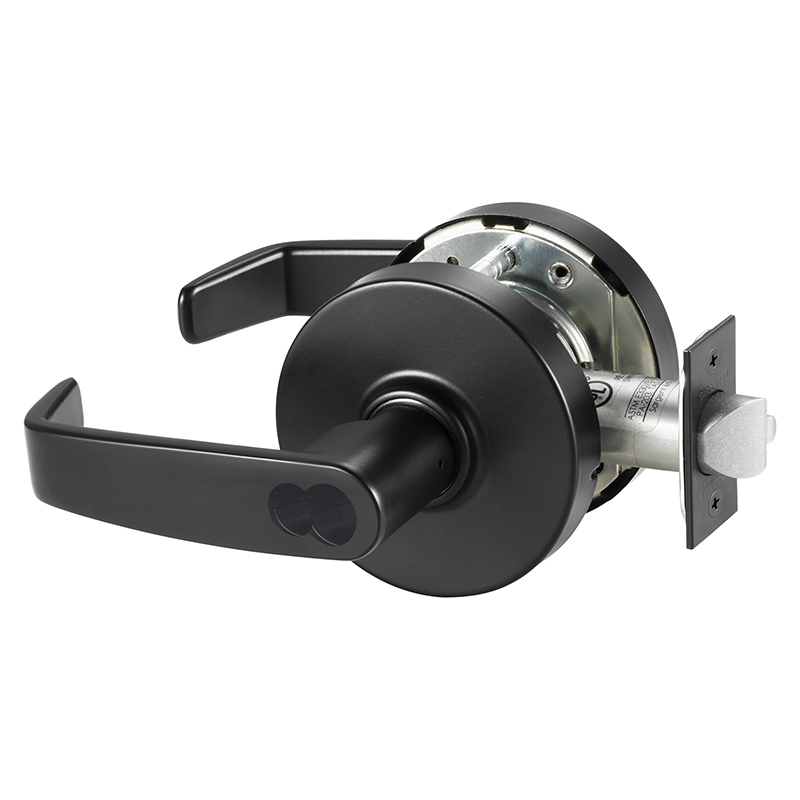

Sargent 60-10XG24 LL BSP F82A Grade 1 Cylindrical Lever Lock, L Lever, Large Format IC Prep, Black SuedeSargent 6010XG24LLBSP Entrance or Office (F82A) Cylindrical Lever Lock combines robust security with versatile functionality, making it an ideal choice for commercial applications. This Grade 1 lockset features an L Lever and L Rose design, crafted for durability and ease of use. The large format IC preparation allows for easy core changes, enhancing adaptability for various environments. Engineered to withstand demanding conditions, this lockset prevents entry against more than 3,100 in-lb locked lever torque-far exceeding ANSI/BHMA A156.2 requirements. It endures a staggering 1,600 lbs offset lever pull and maintains latch retraction with a 100 lb preload, ensuring reliable operation even in warped doors or those with latch bind. Its resilience is further demonstrated by the ability to prohibit entry after more than 100 vertical impacts. Finished in a sleek Black Suede Powder Coat, the Sargent 6010XG24LLBSP is not only functional but also aesthetically appealing. The lockset includes a 2-3/4" backset, a 2-1/8" crossbore size, and is designed to fit doors ranging from 1-3/4" to 2" thick. With a 7-year limited warranty and UL and cUL 3-hour fire rating, this lockset is a reliable choice for enhancing building security.
Entrance or Office (F82A) Cylindrical Lever Lock Grade 1 with L Lever and L Rose with Large Format IC Prep Less Core and ASA Strike Black Suede Powder Coat Finish
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
- Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
- UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
- Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
- Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
- Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
Attributes
Alternate Codes: 60-10XG24-LL-BSP, 6010XG24LLBSP
Backset: 2-3/4" Backset
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore
Dimension: 4-1/2" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Finish: Black Suede Powder Coat
Finish Code: BSP
Finish Description: Black Suede
Fire Rated: 3 Hours {A}
Function: Entry
Grade: Grade 1
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: L Lever
Limited Warranty: 10 Year Limited Warranty
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: L Rose
Series: 10X Line Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL 3 Hour Fire Rating
