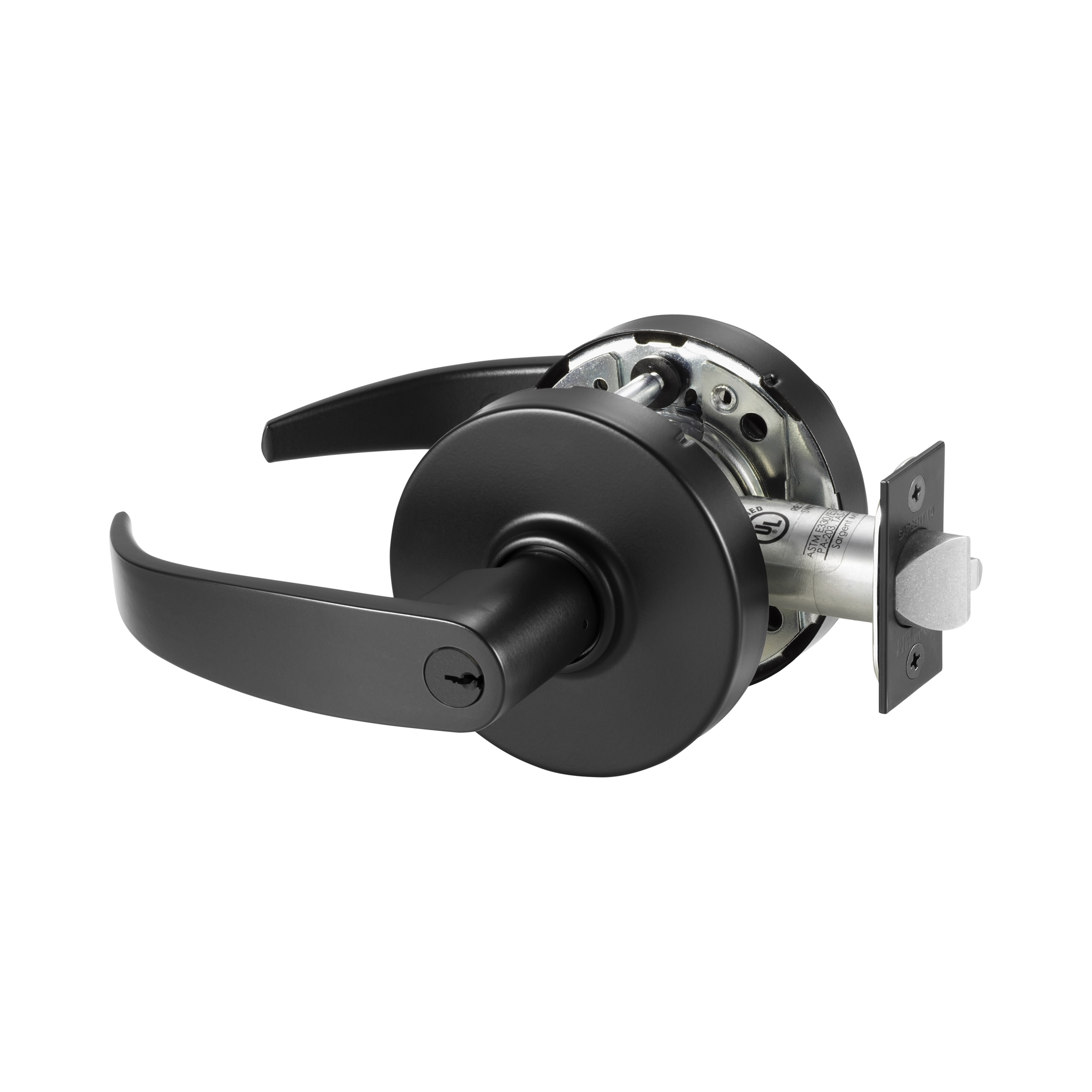

Sargent 60-10XG24 LP BSP F82A Grade 1 Cylindrical Lever Lock with P Lever, L Rose, IC Prep, Black SuedeSargent 6010XG24LPBSP Entrance or Office (F82A) Cylindrical Lever Lock Grade 1 combines robust security features with elegant design, making it a top choice for commercial applications. This lockset is engineered to withstand more than 3,100 in-lb of locked lever torque, significantly surpassing ANSI/BHMA A156.2 requirements, ensuring reliable entry prevention and egress maintenance. With the ability to endure a staggering 1,600 lbs of offset lever pull, it continues to provide security even against the most forceful attempts. Designed for versatility, the 6010XG features a 2-3/4" backset and accommodates doors ranging from 1-3/4" to 2" thick. The lock's sleek P lever and L rose design are finished in a sophisticated Black Suede Powder Coat, adding a modern touch to any door. Its UL listing guarantees a 3-hour fire rating, ensuring safety without compromising style. The lockset is also built for durability, having passed the UL Cycle Above and Beyond test with an impressive 20 million cycles, which speaks to its reliability in high-traffic environments. Backed by a 7-year limited warranty, the Sargent 6010XG24LPBSP is a smart investment for those seeking a blend of security and aesthetic appeal.
Entrance or Office (F82A) Cylindrical Lever Lock Grade 1 with P Lever and L Rose with Large Format IC Prep Less Core and ASA Strike Black Suede Powder Coat Finish
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
- Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
- UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
- Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
- Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
- Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
Attributes
Alternate Codes: 60-10XG24-LP-BSP, 6010XG24LPBSP
Backset: 2-3/4" Backset
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore
Dimension: 5-1/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Finish: Black Suede Powder Coat
Finish Code: BSP
Finish Description: Black Suede
Fire Rated: 3 Hours {A}
Function: Entry
Grade: Grade 1
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: P Lever
Limited Warranty: 10 Year Limited Warranty
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: L Rose
Series: 10X Line Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL 3 Hour Fire Rating
