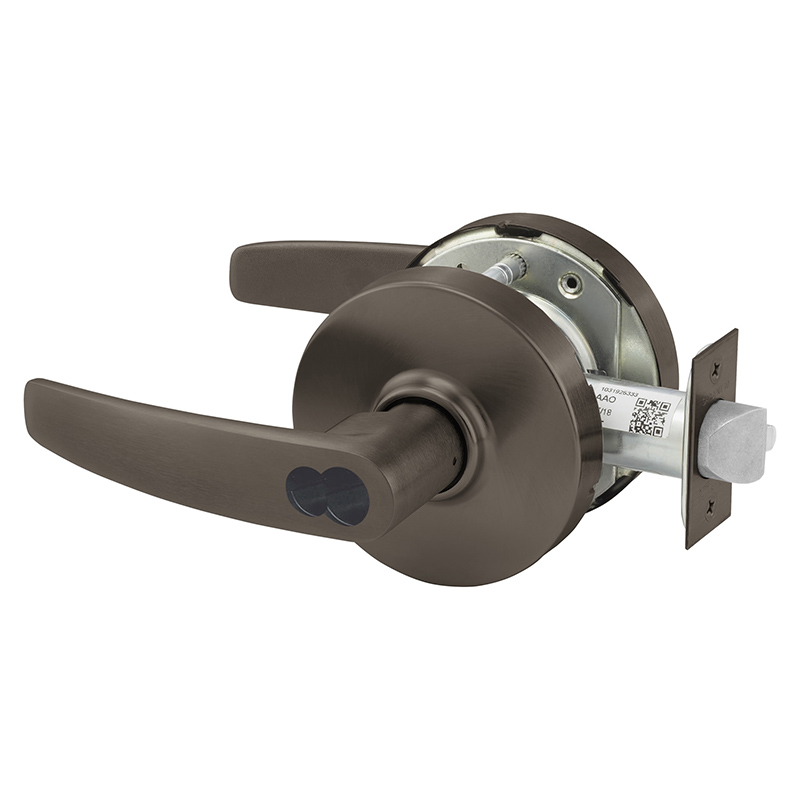

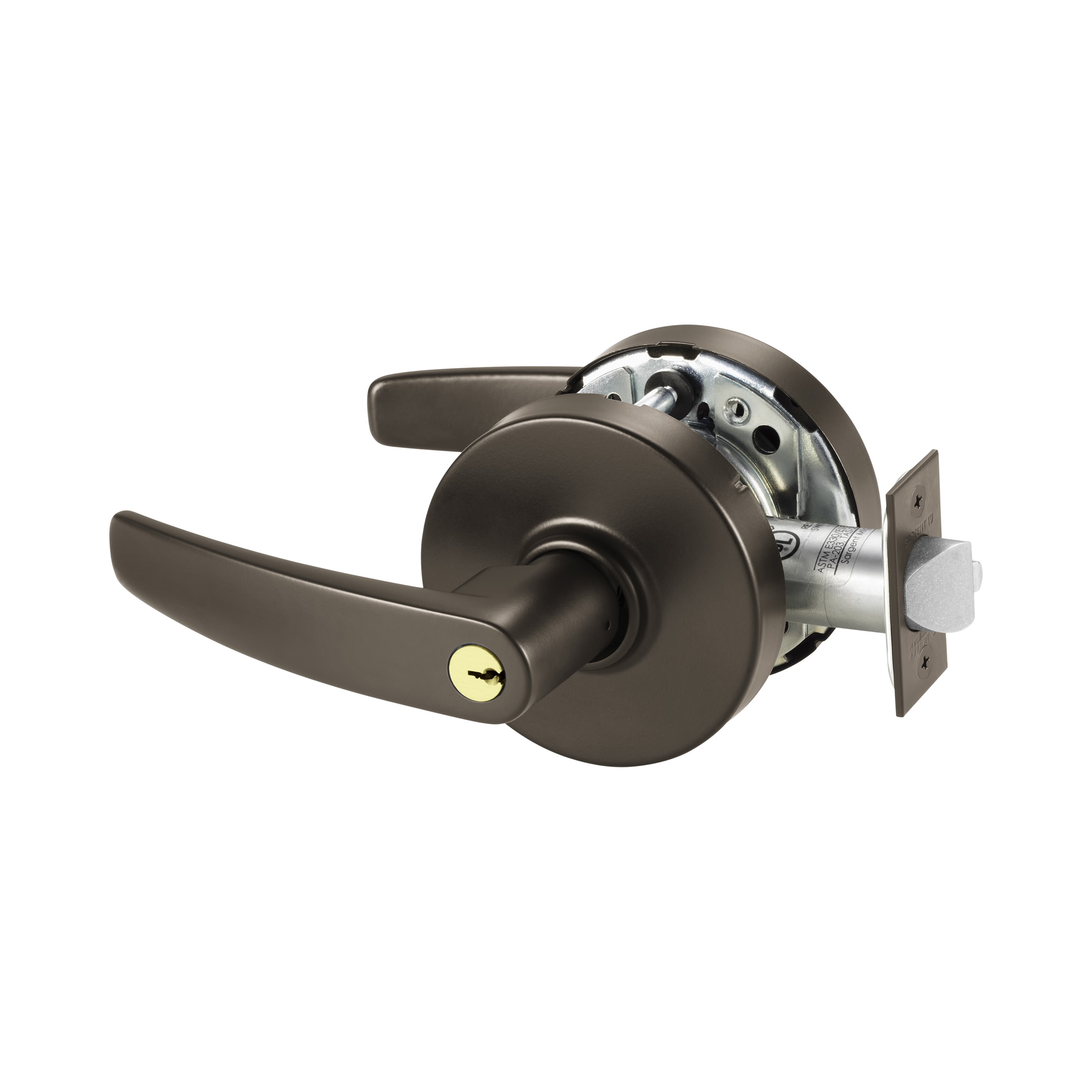

Sargent 60-10XG37 LB 10BE F84 Classroom Grade 1 Cylindrical Lever Lock, Dark Bronze FinishSargent 6010XG37LB10BE Classroom (F84) Cylindrical Lever Lock provides robust security and exceptional durability, tailored for high-traffic environments. Designed with a B lever and L rose, this Grade 1 lockset features a large format IC preparation, ensuring easy integration and enhanced access control. The dark bronze finish not only adds a sophisticated touch but also offers resilience against wear and tear. This lockset excels in performance, withstanding over 3,100 in-lb of locked lever torque, surpassing ANSI/BHMA A156.2 standards by 2.6 times. Its durability is evident in its ability to endure 1,600 lbs of offset lever pull while maintaining secure entry. The Sargent 6010XG37LB10BE also ensures smooth operation with a 100 lb preload, accommodating warped doors or latch bind. After enduring more than 100 vertical impacts, it remains fully functional, demonstrating its reliability in demanding settings. Suitable for doors ranging from 1-3/4" to 2" thick, this cylindrical lockset features a 2-3/4" backset and a 2-1/8" crossbore size. With a UL and cUL 3-hour fire rating, it provides peace of mind in safety. Backed by a 7-year limited warranty, the Sargent 6010XG37LB10BE is an ideal choice for educational, commercial, and industrial applications.
Classroom (F84) Cylindrical Lever Lock Grade 1 with B Lever and L Rose with Large Format IC Prep Less Core and ASA Strike Dark Bronze Finish
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
- Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
- UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
- Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
- Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
- Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
Attributes
Alternate Codes: 60-10XG37-LB-10BE, 6010XG37LB10BE
Backset: 2-3/4" Backset
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore
Dimension: 4-9/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Finish: Dark Bronze
Finish Code: US10BE
Finish Description: Dark Oxidized Bronze
Fire Rated: 3 Hours {A}
Function: Classroom
Grade: Grade 1
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: B Lever
Limited Warranty: 10 Year Limited Warranty
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: L Rose
Series: 10X Line Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL 3 Hour Fire Rating
