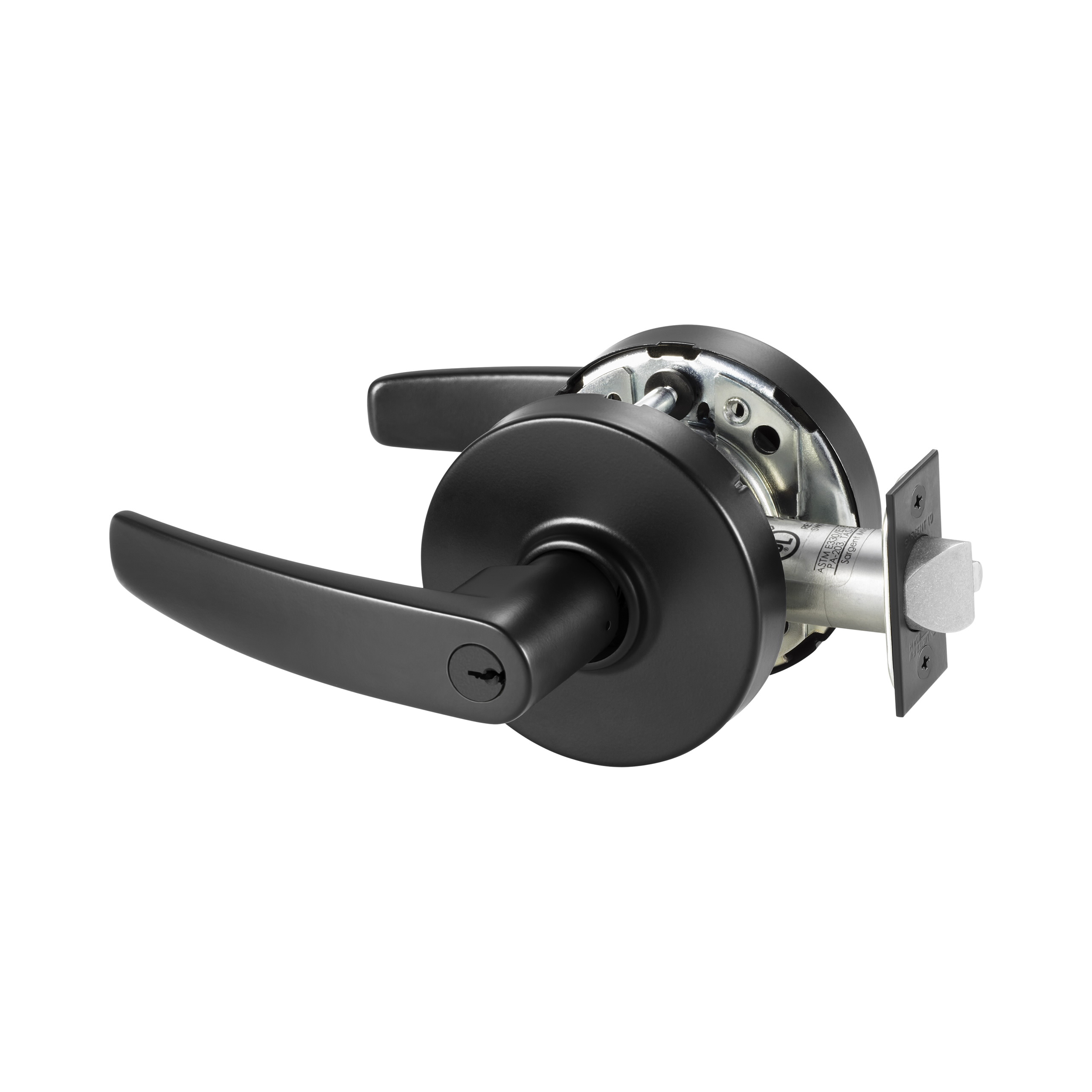

Sargent 60-10XG37 LB BSP F84 Classroom Grade 1 Cylindrical Lever Lock, Black Suede FinishSargent 6010XG37LBBSP Classroom (F84) Cylindrical Lever Lock Grade 1 combines robust security with refined design for commercial applications. Featuring a B Lever and L Rose, this lockset is designed with a large format IC preparation and is finished in a sleek Black Suede Powder Coat, ensuring both durability and aesthetic appeal. Engineered to withstand considerable force, it prevents entry against over 3,100 in-lb locked lever torque, far exceeding ANSI/BHMA A156.2 requirements. It also endures an offset lever pull of 1,600 lbs, maintaining its integrity under pressure. The lockset guarantees reliable latch retraction even with a 100 lb preload, making it suitable for warped doors. Additionally, it is tested to resist over 100 vertical impacts and has completed UL Cycle testing for 20 million cycles, showcasing its long-lasting performance. With a 2-3/4" backset and a 2-1/8" bore crossbore size, this lock fits doors ranging from 1-3/4" to 2" thick. The latch faceplate measures 1-1/8" x 2-1/4", and it includes an ASA strike with a dimension of 4-7/8" and a 1-1/4" lip. The product is backed by a 7-year limited warranty, ensuring peace of mind for building professionals seeking reliability and style.
Classroom (F84) Cylindrical Lever Lock Grade 1 with B Lever and L Rose with Large Format IC Prep Less Core and ASA Strike Black Suede Powder Coat Finish
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
- Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
- UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
- Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
- Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
- Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
Attributes
Alternate Codes: 60-10XG37-LB-BSP, 6010XG37LBBSP
Backset: 2-3/4" Backset
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore
Dimension: 4-9/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Finish: Black Suede Powder Coat
Finish Code: BSP
Finish Description: Black Suede
Fire Rated: 3 Hours {A}
Function: Classroom
Grade: Grade 1
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: B Lever
Limited Warranty: 10 Year Limited Warranty
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: L Rose
Series: 10X Line Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL 3 Hour Fire Rating
