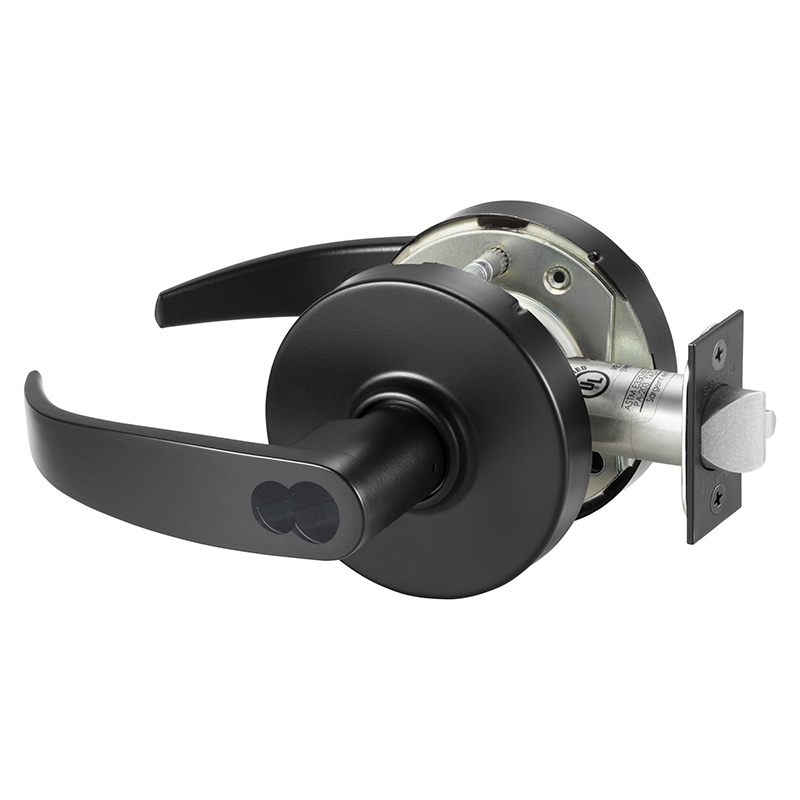

Sargent 6010XG37LPBSP Classroom (F84) Cylindrical Lever Lock Grade 1 offers robust security and durability for educational and commercial environments. Designed with a P Lever and L Rose, this lockset features a large format IC preparation and comes with an ASA strike, all finished in a sleek Black Suede Powder Coat. This lockset stands out for its exceptional performance, preventing entry and maintaining egress against more than 3,100 in-lb locked lever torque-exceeding ANSI/BHMA A156.2 requirements by 2.6 times. It can withstand an impressive 1,600 lbs offset lever pull, ensuring continued security under stress. The Sargent 6010XG37LPBSP guarantees latch retraction with a 100 lb preload, even in warped doors, and it prohibits entry after enduring over 100 vertical impacts. The lockset is UL-listed with a 3-hour fire rating and has successfully completed 20 million cycles in UL testing, underscoring its reliability. Its dimensions include a 5-1/16" lever with a 2-15/16" projection and a 3-1/2" rose, suitable for doors ranging from 1-3/4" to 2" thick. With a 7-year limited warranty, the Sargent 6010XG37LPBSP is an ideal choice for those seeking security and functionality in a stylish design.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Alternate Codes: 60-10XG37-LP-BSP, 6010XG37LPBSP
Ansi: F84
Ansi Function: F84 - Classroom
Backset: 2-3/4" Backset
Base Material: Steel
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Type: LFIC Disposable Construction Core
Cylinders Present: Single Cylinder
Design: P Lever
Dimension: 5-1/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4" to 2"
Finish: Black Suede Powder Coat
Finish Code: BSP
Finish Description: Black Suede
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Classroom
Function Family: Classroom
Grade: Grade 1
Handing: Non-handed
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: P Lever
Lever Knob Design Name: P
Leverknob Design: P Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Classroom
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: L Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X Line Series
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 10-2000
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL and cUL 3 Hour Fire Rating
Unit of Measure: Each
