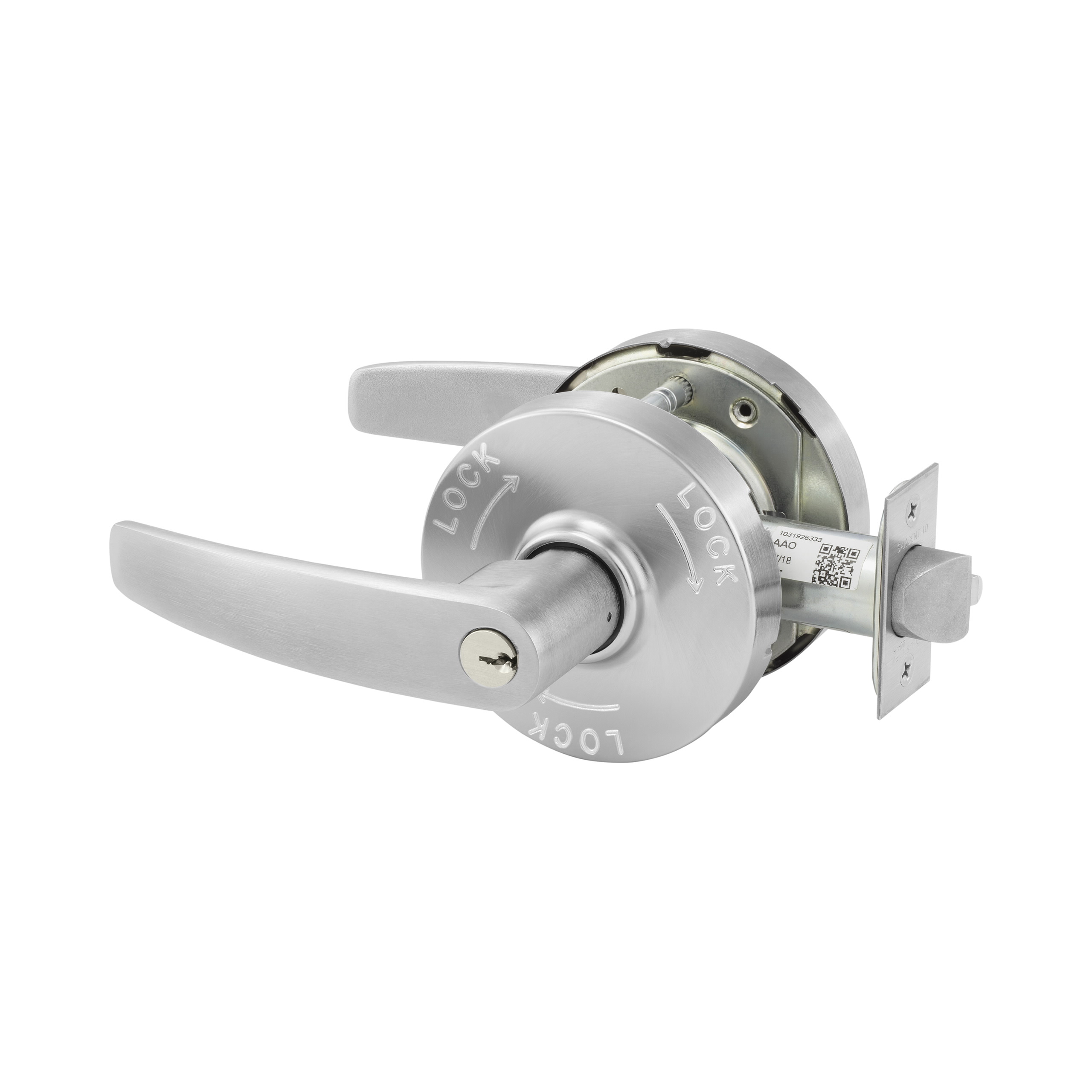

Sargent 6010XG38LB26D Classroom Security Double Cylinder Lever Lock is designed to enhance security in educational and commercial settings. This Grade 1 lockset features a robust B Lever and an L Rose, ensuring both functionality and aesthetic appeal. With its large format IC prep and less core design, it offers flexibility for future upgrades while maintaining a high level of security. The lock is equipped with a reversible handing mechanism, making it suitable for various door configurations. It accommodates doors ranging from 1-3/4" to 2" thick, and features a 2-3/4" backset, ensuring a perfect fit for most installations. The 2-1/8" crossbore size allows for easy retrofitting, while the included ASA strike, measuring 4-7/8" with a 1-1/4" lip, enhances stability and security. Finished in a sleek satin chrome (26D), this lock not only meets aesthetic demands but is also UL listed for 3-hour doors, assuring you of its reliability. The Sargent 6010XG38LB26D comes with a 7-year limited warranty, providing peace of mind for building professionals and homeowners alike. Upgrade your security with this exceptional classroom lockset that combines durability, style, and convenience.
Attributes
Alternate Codes: 60-10XG38-LB-26D, 6010XG38LB26D
Ansi: F110
Ansi Function: F110 - Classroom
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Type: LFIC Disposable Construction Core
Cylinders Present: Double Cylinder
Dimension: 4-9/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: 26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Classroom Security Double Cylinder
Function Family: Classroom
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: B Lever
Lever Knob Design Name: B
Leverknob Design: B Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Classroom Security Intruder
Manufacturer Warranty: 7 Year Limited Warranty
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: L Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X Line Series
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 10-2000
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL Listed 3 Hour Door
Unit of Measure: Each
