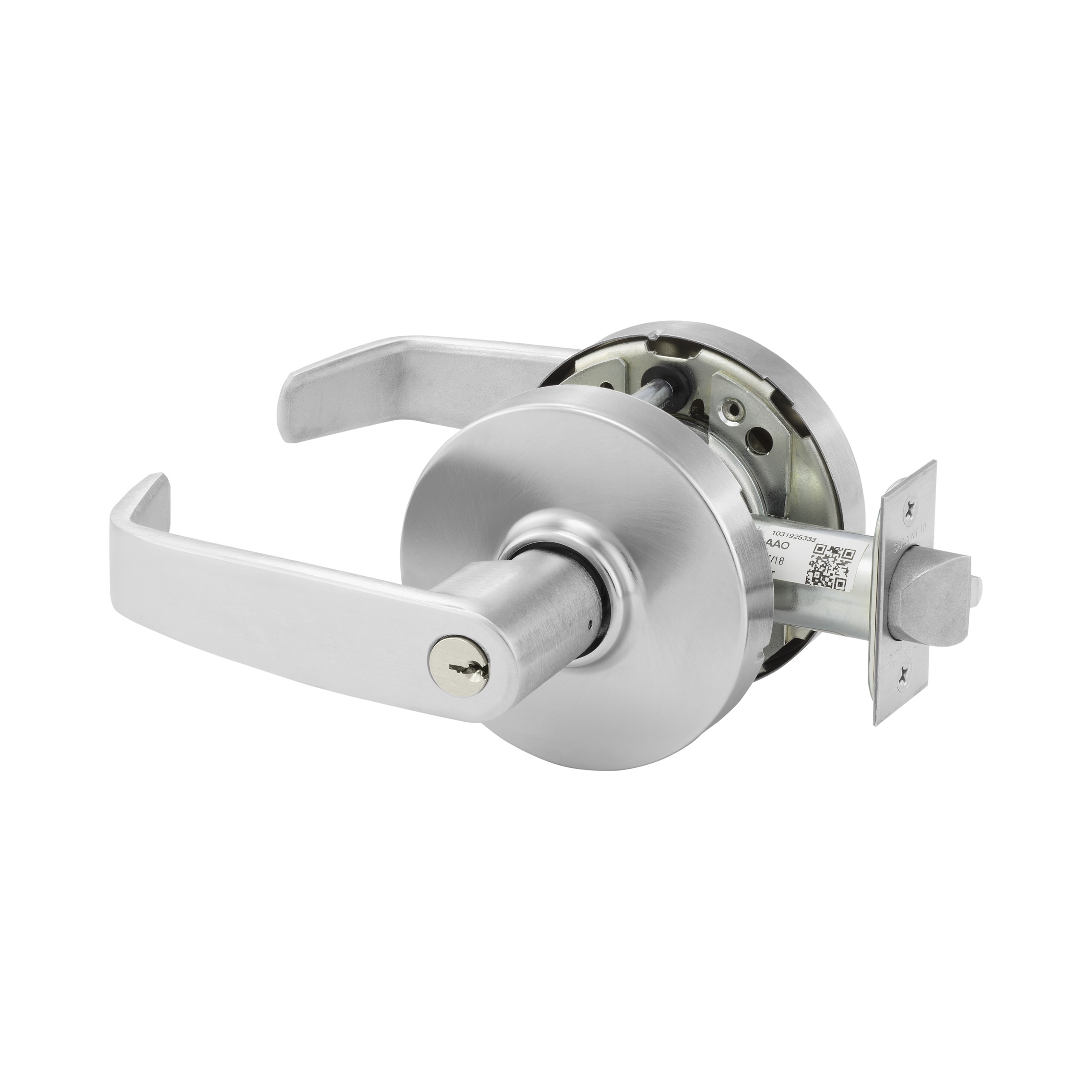

Sargent 6010XG38LL26D Classroom Security Intruder Cylindrical Lock combines robust design with user-friendly functionality, making it an ideal choice for educational and commercial environments. This Grade 1 lockset features an L Lever and L Rose, ensuring both durability and ease of use. With a large format IC preparation and an ASA strike, it is designed for high-security applications while maintaining compliance with UL Listing for 3-hour doors. Constructed to fit doors ranging from 1-3/4" to 2" thick, the lockset has a 2-3/4" backset and a crossbore size of 2-1/8", making installation straightforward. The satin chrome finish not only enhances aesthetic appeal but also provides resistance to wear and tear. The reversible handing allows for flexibility in various door orientations. With a latch faceplate dimension of 1-1/8" x 2-1/4", this cylindrical lock ensures a secure fit. It is backed by a 7-year limited warranty, giving peace of mind to building professionals and homeowners alike. The Sargent 6010XG38LL26D is a reliable solution for maintaining security while ensuring ease of access in classrooms and other sensitive areas.
Attributes
Alternate Codes: 60-10XG38-LL-26D, 6010XG38LL26D
Ansi: F110
Ansi Function: F110 - Classroom
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Type: LFIC Disposable Construction Core
Cylinders Present: Double Cylinder
Dimension: 4-1/2" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: 26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Classroom Security Intruder
Function Family: Classroom
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: L Lever
Lever Knob Design Name: L
Leverknob Design: L Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Classroom Security Intruder
Manufacturer Warranty: 7 Year Limited Warranty
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: L Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X Line Series
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 10-2000
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL Listed 3 Hour Door
Unit of Measure: Each
