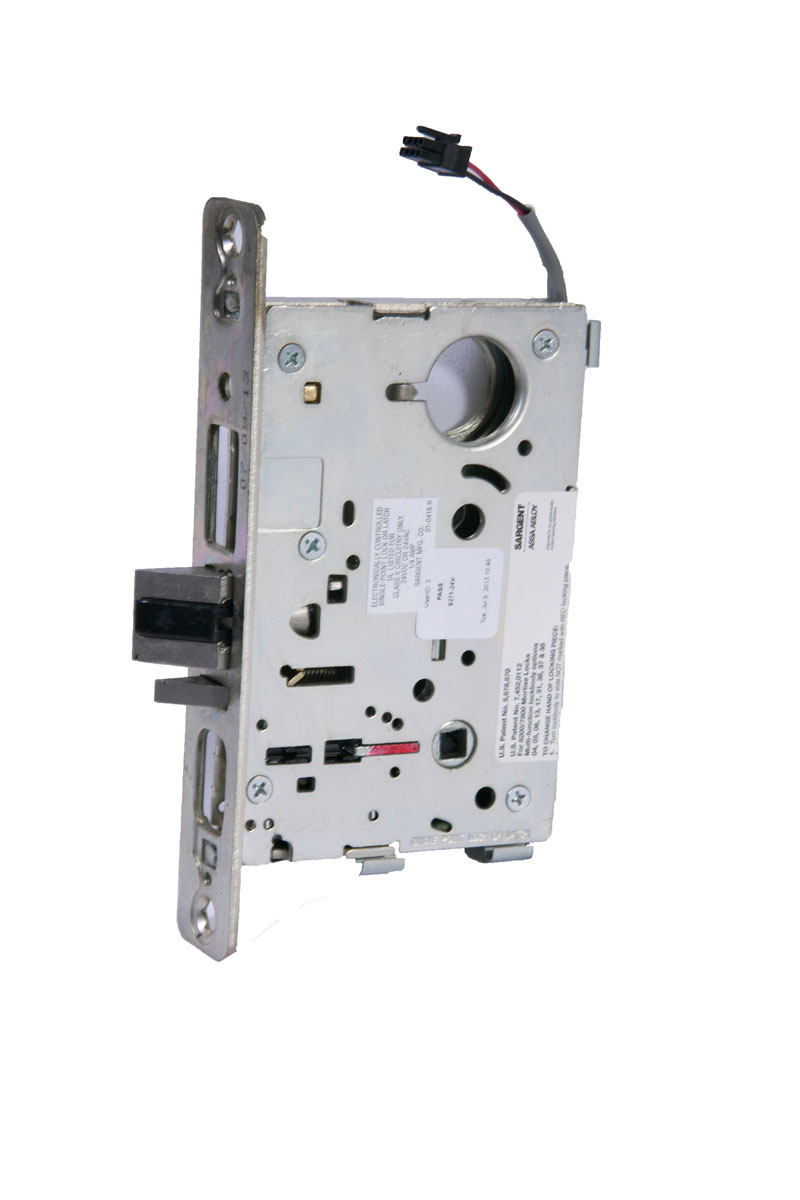

Sargent 827112V26D Fail Secure Electro Mechanical Single Cylinder 12 Volt Mortise Lock Body delivers a robust solution for your security needs. Designed for reliability, this lock features a fail secure mechanism, ensuring that the door remains locked during a power outage, while still allowing for controlled access when needed. The 12-volt electro-mechanical operation provides efficient performance, making it an excellent choice for both commercial and residential applications. With a backset of 2-3/4 inches, this lock is compatible with a variety of door configurations. Its reversible handing allows for versatile installation, accommodating different door orientations without compromising functionality. The satin chrome finish not only enhances the lock's aesthetic appeal but also ensures durability against wear and tear. This model is part of the Sargent 8200 Series, known for its high-quality construction and advanced security features. The package includes a faceplate strike and mounting screws, making installation straightforward. Plus, it ships conveniently via UPS, ensuring quick delivery to your project site. The Sargent 827112V26D is an ideal choice for building professionals looking to enhance the security and functionality of their door hardware.
Fail Secure Electro Mechanical Single Cylinder 12 Volt Mortise Lock Body with Faceplate Strike and Mounting Screws Satin Chrome Finish
Amp Draw: 500mA Peak, 15mA Holding
Application: Lockbody Only
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass or Bronze
Bolt Projection: 3/4"
Bolt Protection: 3/4"
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Country of origin: USA
Door Thickness: 1-3/4"
Finish: Satin Chrome
Finish Code: 26D
Finish Description: Satin Chrome
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 71-Electrical Fail Secure
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/4" x 8"
Limited Warranty: 2 Years
Lock Face Size: 8" X 1-1/4"
Manufacturer Warranty: 1 Year Limited Warranty
No Of Inners: 1
Operating Voltage: 12VDC/24VDC
Order_ Qty: 1
Origin: USA
Pack Height: 4.38"
Pack Length: 9.25"
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63"
Power: Hard Wired
Screws: Combination
Series: 8200 Series
Ship Weight: 6.1 lbs.
Std Strike Height: 4-7/8"
Std Strike Number: 82-0110
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike Height: 4-7/8"
Strike Number: 82-0110
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Electric Mortise Lock
Type: Electric Locks
Ul Listing Type: UL and cUL 3 Hour Fire Rating
Unit of Measure: Each
