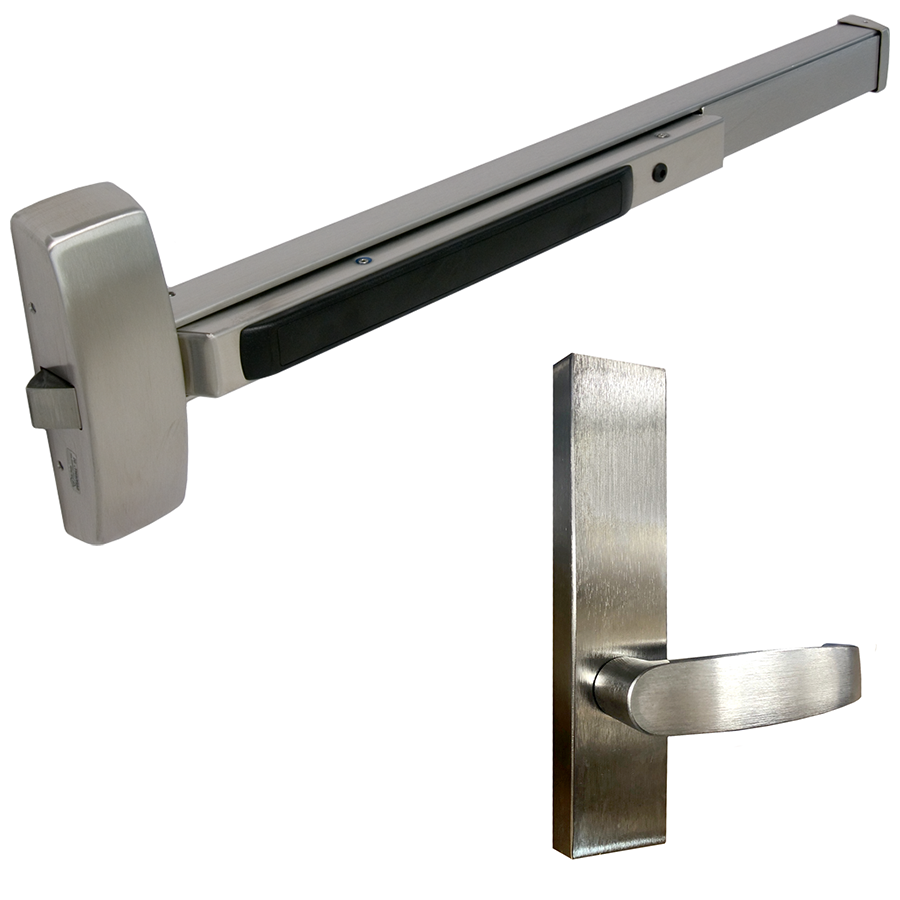

Sargent 8815G-ETL-32D RHR KIT 8800 Series Rim Exit Device, Passage Lever Trim, Non-Keyed, RHR, Grade 1

Sargent 8815G-ETL-32D RHR KIT is a robust solution from the 8800 Series, designed to enhance security in various environments. This rim exit device features a passage lever trim that remains operable at all times, ensuring easy access while maintaining safety. Crafted from durable 630/US32D stainless steel, this Grade 1 device exceeds ANSI/BHMA standards for strength and endurance, making it ideal for both wood and metal doors. With a versatile design suitable for standard width stile applications and a width accommodating doors from 43 inches to 48 inches, the Sargent 8815G is perfect for single and double door setups, including those with mullions. The hex dogging feature provides a secure hold when engaged, while the quiet operation ensures minimal disruption in high-traffic areas. This exit device is UL10C (Fire) and UL305 (Panic) listed, providing peace of mind in emergency situations. The modular construction requires little maintenance and is available with various electric options, such as delayed egress and alarmed exit features, allowing customization for unique applications. Elevate your facility's security with the Sargent 8815G-ETL-32D RHR KIT-where reliability meets functionality.

KIT - 8800 Series Rim Exit Device, Passage Lever Trim (Trim Always Operable), Escutcheon with L Lever, Non-Keyed, RHR Right Hand Reverse, 48in, Hex Dogging, Grade 1, 630/US32D Stainless Steel

The 80 series exit device is ideal for environments that require strong and durable security solutions. Made to last the lifetime of the building, this device easily exceeds ANSI/BHMA grade 1 requirements for cycle and strength and is available in rim, mortise, surface vertical and concealed vertical rod configurations. With a modular design, this device has been crafted to be maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications – including delayed egress, alarmed exit and electric latch retraction – making this the go-to product for your building.

Features:

• Designed for standard width stile applications on wood and metal doors
• Also available as an HC8800 or WS8800 for hurricane-resistant applications
• Single point rim latching device
• Single door & double door applications with mullions
• Quiet operation and solid security
• ANSI/BHMA A156.3 - Grade 1
• UL10C (Fire) and UL305 (Panic) Listed

Functions:

• 04: Night latch, key retracts latch #34 cylinder supplied. ANSI 03
• 06: Key unlocks trim, trim retracts latch/trim relocks when key is removed #41 cylinder supplied. ANSI 09
• 10: No outside operation (no cylinder). ANSI 01
• 10: No outside operation (no cylinder) ET control is used as pull only. ANSI 02
• 13: Key outside unlocks/locks trim #41 cylinder supplied. ANSI 08
• 15: Passage only (no cylinder). ANSI 14
• 16: Key outside retracts latch; key inside unlocks/locks O/S trim, O/S #34 cylinder & I/S #44 cylinder supplied. ANSI 10
• 40: Freewheeling trim - no outside operation (no cylinder) dummy trim. ANSI 02
• 43: Freewheeling trim - key outside unlocks/locks trim #41 cylinder supplied. ANSI 08
• 44: Freewheeling trim - key retracts latch, #34 cylinder supplied. ANSI 03
• 46: Freewheeling trim - Key unlocks trim, trim retracts latch/relocks when key is removed #41 cylinder supplied. ANSI 09
• 73: Electrified ET trim - fail safe power off, unlocks lever (no cylinder)
• 74: Electrified ET trim - fail secure power off, locks lever (no cylinder)
• 75: Electrified ET trim - fail safe power off, unlocks lever, key retracts latch, #34 cylinder supplied
• 76: Electrified ET trim - fail secure power off, locks lever, key retracts latch, #34 cylinder supplied

Specifications:

• Door Type: Metal doors
• Door Thickness: 1-3/4" (44mm) minimum thickness. For doors over 1-3/4" to 5" thick, specify thickness and order as 31-
• Stile: 4-1/2" (114mm) minimum stile width
• Rail sizes as determined by door width:
• E Rail for 24" to 32" door widths, no cutting required for 32" door
• F Rail for 33" to 36" door widths, no cutting required for 36" door
• J Rail for 37" to 42" door widths, no cutting required for 42" door
• G Rail for 43" to 48" door widths, no cutting required for 48" door
• Strike: 649 Standard black nylon coated
• Dogging Feature: Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
• Electric Options:
• AL: Alarm
• PL: SARGuide photoluminescent coated
• 53: LX Latchbolt monitor
• 54: Outside lever monitoring
• 55: Request-to-exit signal - rail monitoring
• 56: ELR Remote latch retraction
• 58: Electric dogging
• 59: Electroguard – self contained delayed egress
• Mounting Fasteners: Supplied standard with wood and machine screws. Available with through-bolts and mortise (sex) nuts
• Latch Bolt: Stainless steel, 3/4" (19mm) throw
• Device Centerline from: 41" (1041 mm) for standard applications
• Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
• Projection: Push bar neutral – 3" (76mm), push bar depressed – 2-1/8" (54mm)

Finishes:

• 03/605 - Bright brass, clear coated
• 04/606 - Satin brass, clear coated
• 09/611 - Bright bronze, clear coated
• 10/612 - Satin bronze, clear coated
• 10B/613 - Dark oxidized satin bronze, oil rubbed
• 10BE/613E - Dark oxidized satin bronze, equivalent
• 10BL/613L - Dark oxidized satin bronze clear coated
• 14/618 - Bright nickel plated, clear coated
• 15/619 - Satin nickel plated, clear coated
• 20D/624 - Dark statuary bronze lacquered
• 26/625 - Bright chrome plated
• 26D/626 - Satin chrome plated
• 32/629 - Bright stainless steel
• 32D/630 - Satin stainless steel
• BSP - Black suede powder coat
• WSP - White suede powder coat
