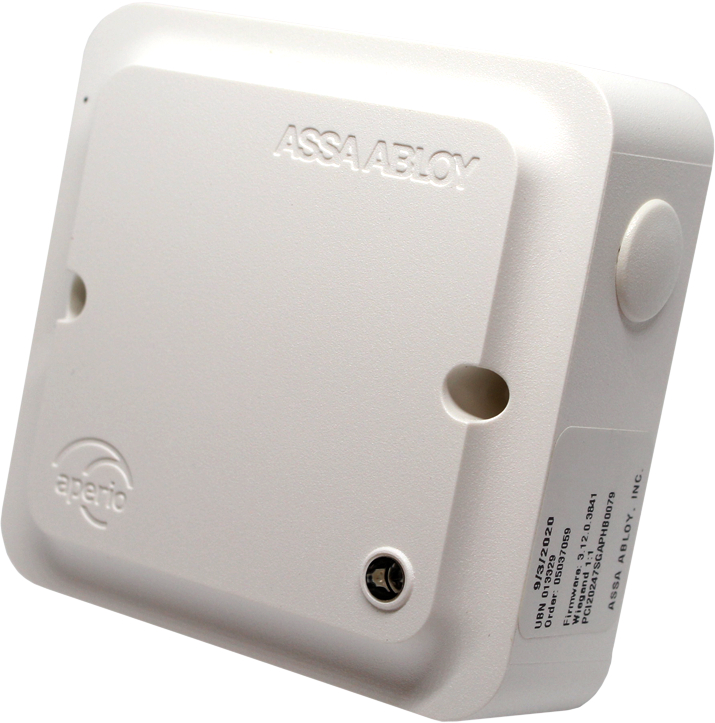

Sargent AH20W14-NNNN Aperio Hub 1 Door IP Hardware Version

Sargent AH20W14-NNNN Aperio Hub 1 Door IP Hardware Version offers robust and versatile access control solutions tailored for modern security needs. This innovative hub utilizes short-distance wireless transmission via IEEE 802.15.4 at 2.4 GHz, ensuring seamless communication with compatible locks within a range of up to 50 feet, depending on the installation environment. Designed for flexibility, the Aperio hub integrates effortlessly with various access control systems through IP, RS-485, or Wiegand communication protocols. It is powered using Power over Ethernet (PoE) or an external power supply ranging from 8-24VDC, providing convenient installation options. Security is paramount; thus, the device employs AES 128 encryption to safeguard data transmission, ensuring peace of mind for users. The operating temperature of the Sargent AH20W14-NNNN ranges from 41°F (5°C) to 95°F (35°C), with humidity levels maintained below 95% (non-condensing), making it suitable for diverse environments. Whether you're upgrading an existing system or implementing a new access control strategy, the Sargent Aperio Hub serves as an essential component for enhanced security management, delivering reliability and advanced features tailored for both building professionals and informed homeowners.

Aperio Hub 1 Door IP Hardware Version

The IN100 lock uses short distance wireless transmission (IEEE 802.15.4, 2.4 GHz) to communicate with an Aperio hub, which is connected to an access control system via IP, RS-485 or Wiegand.

Specifications:

• Wireless Communication: IEEE 802.15.4 (2.4GHz).
• Wireless Range: 50 feet (depending on installed environment.)
• EAC Communication: IP, RS-485 or Wiegand.
• Power: Powered using Power over Ethernet (PoE) or external power supply (8-24VDC).
• Security: AES 128 encryption.
• Operating Temperature: 41°F (5°C) to 95°F (35°C).
• Humidity: < 95 % maximum (non-condensing).

Options:

• AH: Aperio Hub
• 20: Wiegand Hub
• 30: RS-485 Hub
• 40: IP Hub
• W14: Wiegand 1:1
• R12: RS-485 1:8
• IN2: IP 1:16
• NNNN: is the standard configuration code for Aperio hubs. Access control partners should contact 800-810-WIRE for specific ordering information

Features

• Wireless Communication: IEEE 802.15.4 (2.4GHz).
• Wireless Range: 50 feet (depending on installed environment.)
• Humidity: < 95 % maximum (non-condensing).
• Security: AES 128 encryption.
• Operating Temperature: 41°F (5°C) to 95°F (35°C).
• Power: Powered using Power over Ethernet (PoE) or external power supply (8-24VDC).
• EAC Communication: IP, RS-485 or Wiegand.
