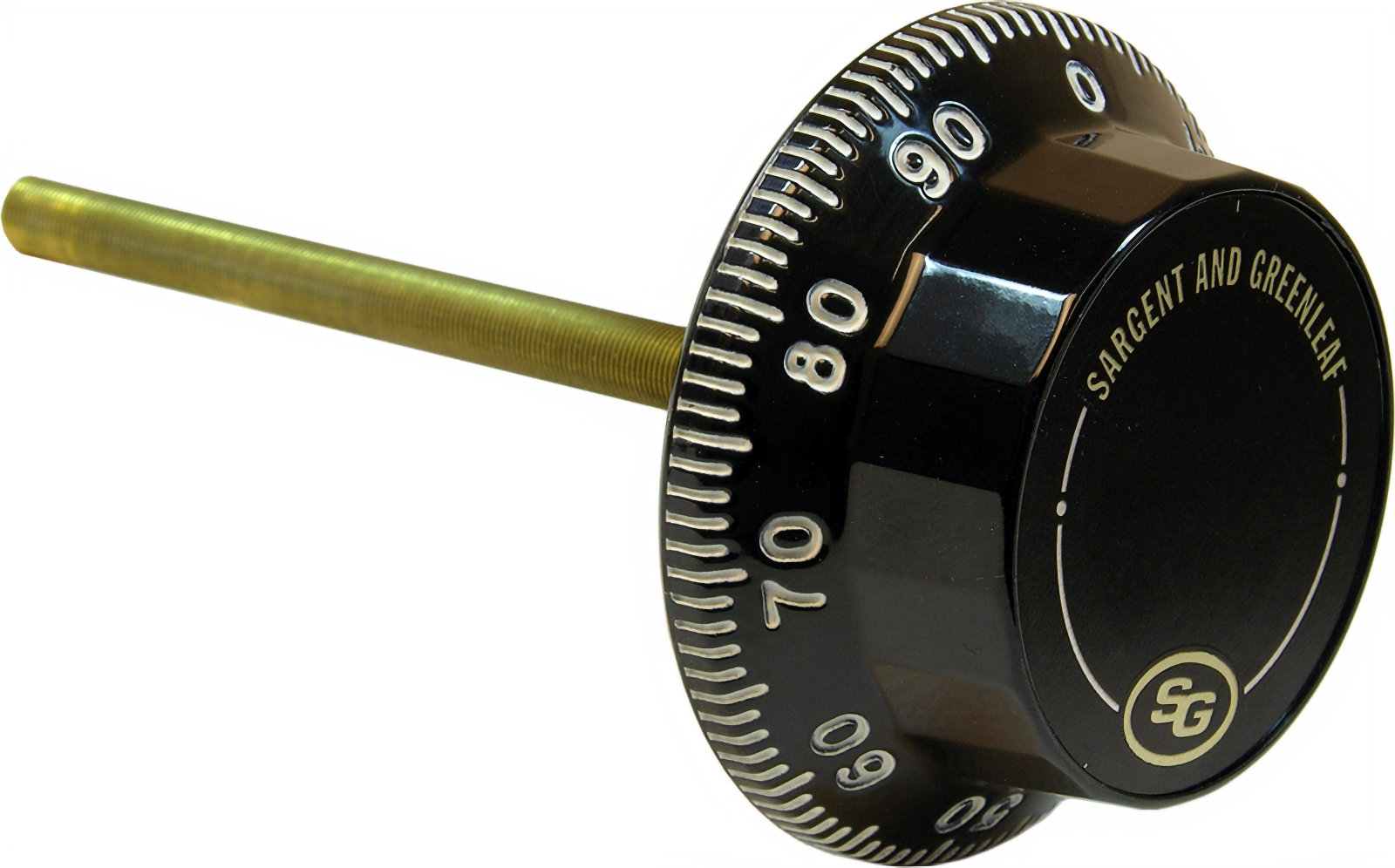

Sargent & Greenleaf D300-016 Black Dial 3.75in w/Large Knob

Your Price: $56.01

Sargent & Greenleaf D300-016: Durable black dial with large knob, designed for secure mechanical locking in safes.

Part Number : SAG_D300016

Availability: 31 In Stock

Quantity

Description

Sargent & Greenleaf D300-016 Black Dial 3.75in w/Large Knob

Sargent & Greenleaf D300-016 Black Dial 3.75in w/Large Knob offers a robust and reliable locking solution for safes and vaults. This mechanical lock features a user-friendly front-reading design, making it an excellent choice for both professionals and knowledgeable homeowners seeking enhanced security. With a spindle designed to ensure full lock bolt extension when key-locking dials are engaged, this model accommodates door thicknesses up to 3.4 inches (86.5 mm). The D300-016 comes in a sleek black finish, providing a modern aesthetic that complements various safe styles. The dial's large knob allows for easy operation, ensuring quick access when needed. It's important to note that dials and rings must be ordered separately, and certain configurations require ordering in multiples of 25. The D300-016 is classified as a non-handed mechanical lock, making it versatile for various applications. Additionally, it is equipped with dial ring bearings and the necessary mounting hardware for standard installations. As a reliable component in the Sargent & Greenleaf lineup, the D300-016 is perfect for those prioritizing security and functionality in their locking systems. Whether you're upgrading existing safes or installing new ones, this dial is engineered to deliver peace of mind.

Black Dial 3.75in w/Large Knob

Notice: The info below is not item specific.

A spindle is pressed into a dial with its spline keyway aligned to either 41 or 50 on the dial, as indicated in the table. The #41 splining location is required to ensure full lock bolt extension when key-locking dials are locked down with zero under the opening index. Dial spindles will accommodate a maximum door thickness of 3.4 inches (86.5 mm). Thicker doors require a special order dial. Dial rings are shipped with dial ring bearings and necessary mounting hardware for standard installations.

Dials and rings must be ordered separately
Numbers with an asterisk (*) must be ordered in multiples of 25
"KL" indicates a key locking dial

Options:

Style	Finish	Spindle Spinning	Individual Dial Pack	Bulk Dial Pack	Individual Dial Ring Pack	Bulk Dial Ring Pack
Front Reading	B&W	50	D003-003	D003-002*	R004-002	R004-001*
Front Reading	B&W	50	D017-007	D017-006*	R034-002	R034-001*
Front Reading	B&W	41	D300-016	D300-015*	R211-002	R211-001*
Front Reading	B&W	50	D300-018	D300-017*	R211-002	R211-001*
Front Reading	Satin Chrome	41	D300-021	D300-020*	R211-004	R211-003*
Front Reading	Satin Chrome	50	D300-023	D300-022*	R211-004	R211-003*
Front Reading	Satin Nickel	50	D300-026	D300-025*	R211-006	R211-005*
Front Reading	Satin Brass	50	D300-078	not available	R211-010	R211-009*
Front Read–KL	B&W	41	D690-007	D690-006*	R211-002	R211-001*
Front Read–KL	B&W	50	D690-009	D690-008*	R211-002	R211-001*
Front Read–KL	Satin Chrome	41	D690-012	D690-011*	R211-004	R211-003*
Front Read–KL	Satin Chrome	50	D690-014	D690-013*	R211-004	R211-003*
Front Read–KL	Satin Nickel	50	D690-045	D690-044*	R211-006	R211-005*
Front Read–KL	Satin Brass	50	D690-016	D690-015*	R211-010	R211-009*

Features

"KL" indicates a key locking dial
Numbers with an asterisk (*) must be ordered in multiples of 25
Dials and rings must be ordered separately

Attributes

Alternate Codes: 117236, 1777B, 670F019841, D300-016, D300016

Category: Safe Locks, Accessories & Parts, Safes

Finish Color: Black

Handing: Non-Handed

Lock Type: Mechanical Lock

Safe Parts: Combination Dial
