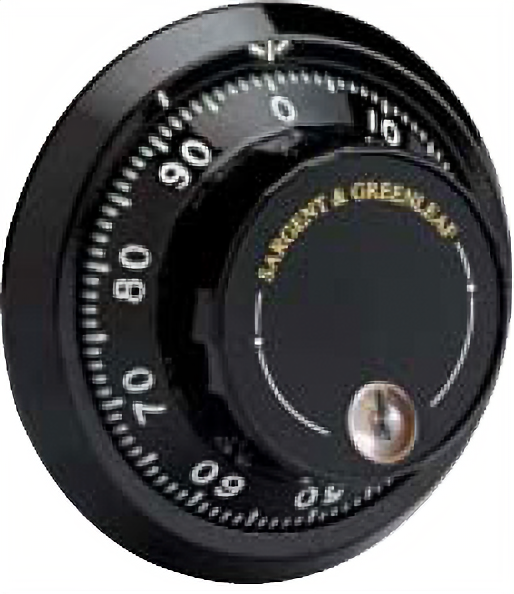

Sargent & Greenleaf D690-007 Black and White Key Locking Dial Only

Sargent & Greenleaf D690-007 Black and White Key Locking Dial Only offers exceptional security and versatility for your safe. Designed as a front-reading mechanical lock, this dial features a sleek black and white finish that seamlessly integrates with various safe designs. The D690-007 is equipped with a key locking mechanism, allowing for secure access control while providing the convenience of a removable key. The dial is engineered to fit standard dial rings, ensuring compatibility with existing systems. With a spindle size of 5/16" - 40, it accommodates door thicknesses up to 3.4 inches, making it an appropriate choice for a wide range of locking applications. The robust construction ensures reliable performance, while the precise #41 splining location guarantees full lock bolt extension when locked. Installation is straightforward, as the dial comes with the necessary mounting hardware and bearings, allowing for a secure fit without hassle. The D690-007 is a non-handed design, making it suitable for both left- and right-opening safes. For building professionals and knowledgeable homeowners alike, this dial embodies the quality and craftsmanship Sargent & Greenleaf is known for, making it an outstanding choice for enhancing your security hardware.

Black and White Key Locking Dial Only

The non-key locking dials can be used with existing dial rings but the key locking convertible dials must be used with the new type dial rings. Key locking convertible dials can be either key removable locked and unlocked (standard). A key locking dial can be only staking a rivet supplied by Sargent & Greenleaf, inc. into the back of the dial. The overall diameter and height from the door surface are the same as current dials and ring sets. The attaching screw hole locations are also the same. Dials are equipped with single spline 5/16"" - 40 spindles. A spindle is pressed into a dial with its spline keyway aligned to either 41 or 50 on the dial, as indicated in the table. The #41 splining location is required to ensure full lock bolt extension when key-locking dials are locked down with zero under the opening index. Dial spindles will accommodate a maximum door thickness of 3.4 inches. Thicker doors require a special order dial. Dial rings are shipped with dial ring bearings and necessary mounting hardware for standard installation.

Dials:

Dial Rings:
