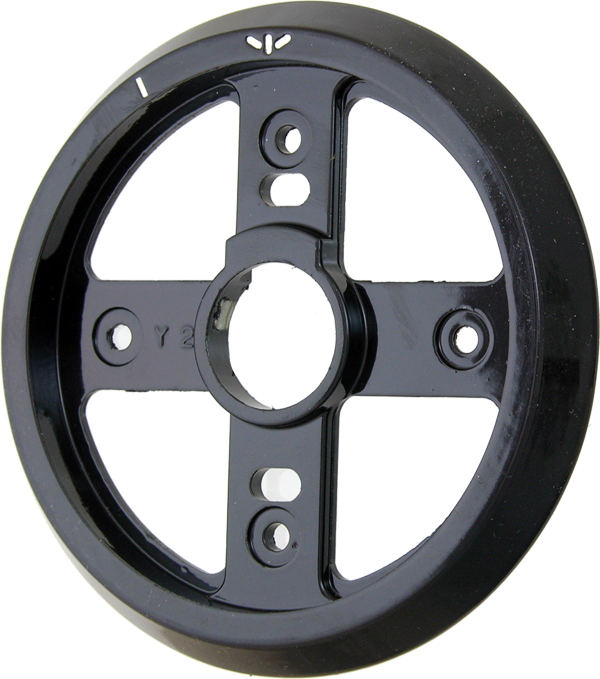

Sargent & Greenleaf R004-002 Black Dial Ring 3.75in Diameter D3

Sargent & Greenleaf R004-002 Black Dial Ring offers a reliable solution for securing your valuables with precision and ease. Designed to fit seamlessly with existing dial setups, this 3.75-inch diameter dial ring is perfect for anyone needing a dependable locking mechanism. Its non-key locking feature allows for compatibility with current dial rings, while the option for key locking provides added versatility. This dial ring is equipped with a single spline 5/16" - 40 spindle, ensuring a smooth operation that accommodates doors with a maximum thickness of 3.4 inches. For thicker doors, a special order dial is available. The R004-002 comes complete with dial ring bearings and necessary mounting hardware, making installation straightforward and efficient. The classic black finish not only enhances its aesthetic appeal but also ensures durability and longevity in various environments. As a non-handed design, this dial ring can be utilized in multiple applications without restriction. Whether for residential safes or commercial security systems, the Sargent & Greenleaf R004-002 Black Dial Ring stands out as a robust and trustworthy choice in security hardware. Invest in a product that embodies quality and reliability, safeguarding your peace of mind.

Black Dial Ring 3.75in Diameter D3

The non-key locking dials can be used with existing dial rings but the key locking convertible dials must be used with the new type dial rings. Key locking convertible dials can be either key removable locked and unlocked (standard). A key locking dial can be only staking a rivet supplied by Sargent & Greenleaf, inc. into the back of the dial. The overall diameter and height from the door surface are the same as current dials and ring sets. The attaching screw hole locations are also the same. Dials are equipped with single spline 5/16"" - 40 spindles. A spindle is pressed into a dial with its spline keyway aligned to either 41 or 50 on the dial, as indicated in the table. The #41 splining location is required to ensure full lock bolt extension when key-locking dials are locked down with zero under the opening index. Dial spindles will accommodate a maximum door thickness of 3.4 inches. Thicker doors require a special order dial. Dial rings are shipped with dial ring bearings and necessary mounting hardware for standard installation.

Dials:

Dial Rings:
