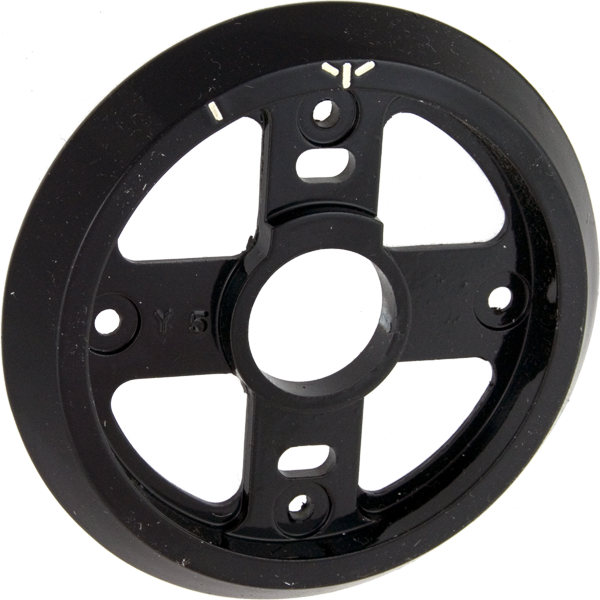

Sargent & Greenleaf R034-002 Black Dial Ring 3.294in Diameter D17

Sargent & Greenleaf R034-002 Black Dial Ring is designed for seamless integration with your existing dial locks, ensuring enhanced security and reliability. With a diameter of 3.294 inches, this dial ring is compatible with standard installations, featuring the same screw hole locations as current dials and ring sets. The non-key locking dials allow for flexible use, while the convertible dials provide the option for key removal when locked or unlocked, adding versatility to your locking mechanism. Engineered with precision, the R034-002 is equipped with a single spline 5/16" - 40 spindle, which can accommodate door thicknesses up to 3.4 inches. For thicker doors, a special order dial is necessary. This model’s robust construction guarantees durability and long-lasting performance, making it a reliable choice for both automotive and residential applications. The black finish adds a sleek, professional appearance, complementing any safe or locking system. Each dial ring is shipped with bearings and necessary mounting hardware for straightforward installation, ensuring that you can set it up quickly and easily. Elevate your security measures with the Sargent & Greenleaf R034-002, where quality and functionality meet to provide peace of mind.

Black Dial Ring 3.294in Diameter D17

The non-key locking dials can be used with existing dial rings but the key locking convertible dials must be used with the new type dial rings. Key locking convertible dials can be either key removable locked and unlocked (standard). A key locking dial can be only staking a rivet supplied by Sargent & Greenleaf, inc. into the back of the dial. The overall diameter and height from the door surface are the same as current dials and ring sets. The attaching screw hole locations are also the same. Dials are equipped with single spline 5/16"" - 40 spindles. A spindle is pressed into a dial with its spline keyway aligned to either 41 or 50 on the dial, as indicated in the table. The #41 splining location is required to ensure full lock bolt extension when key-locking dials are locked down with zero under the opening index. Dial spindles will accommodate a maximum door thickness of 3.4 inches. Thicker doors require a special order dial. Dial rings are shipped with dial ring bearings and necessary mounting hardware for standard installation.

Dials:

Dial Rings:
