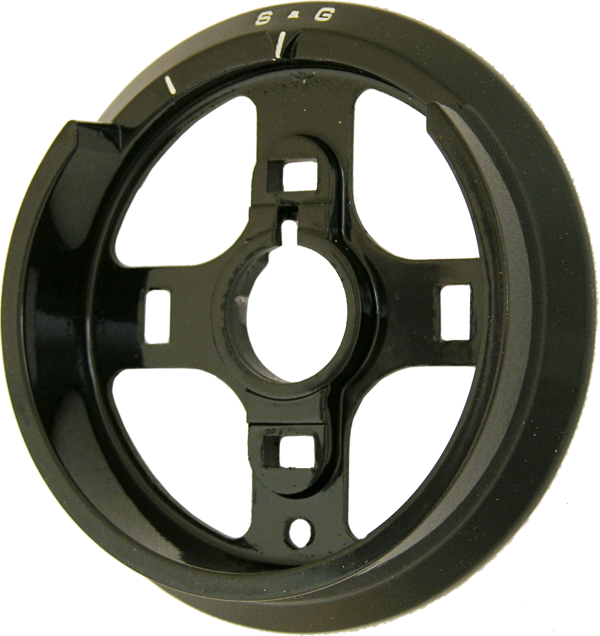

Sargent & Greenleaf R162-002 Black Spy Proof Ring for D112

Sargent & Greenleaf R162-002 Black Spy Proof Ring for D112 offers a robust solution for enhancing the security of your safe. This key locking convertible dial is designed for easy installation, eliminating the need for counterboring the door prior to setup. The installation process is straightforward, making it an ideal choice for field applications. Equipped with single spline 5/16" - 40 spindles, the dial ensures precise alignment for optimal functionality. The #41 splining location is crucial, allowing full lock bolt extension when locked down with zero under the opening index. This means you can trust that your safe remains secure without complications. Designed to accommodate doors up to 3.4 inches thick, the R162-002 is versatile; however, if your door exceeds this thickness, a special order dial is available to meet your needs. In addition to its practical features, the dial ring is shipped with necessary mounting hardware and dial ring bearings for a standard installation. Finished in sleek black, the R162-002 not only enhances security but also maintains a professional appearance. Non-handed and featuring a mechanical lock type, this dial ring is an excellent accessory for anyone looking to bolster their safe's security measures while ensuring ease of use.

Black Spy Proof Ring for D112

• The key locking convertible dials do not require the door to be counterbored prior to installation. Therefore, they can be easily installed in the field. Dials are equipped with single spline 5/16"" - 40 spindles. A spindle is pressed into a dial with its spline keyway aligned to either 41 or 50 on the dial, as indicated in the table. The #41 splining location is required to ensure full lock bolt extension when key-locking dials are locked down with zero under the opening index. Dial spindles will accommodate a maximum door thickness of 3.4 inches. Thicker doors require a special order dial. Dial rings are shipped with dial ring bearings and necessary mounting hardware for standard installation.

Features

• The key locking convertible dials do not require the door to be counterbored prior to installation. Therefore, they can be easily installed in the field. Dials are equipped with single spline 5/16"" - 40 spindles. A spindle is pressed into a dial with its spline keyway aligned to either 41 or 50 on the dial, as indicated in the table. The #41 splining location is required to ensure full lock bolt extension when key-locking dials are locked down with zero under the opening index. Dial spindles will accommodate a maximum door thickness of 3.4 inches. Thicker doors require a special order dial. Dial rings are shipped with dial ring bearings and necessary mounting hardware for standard installation.
