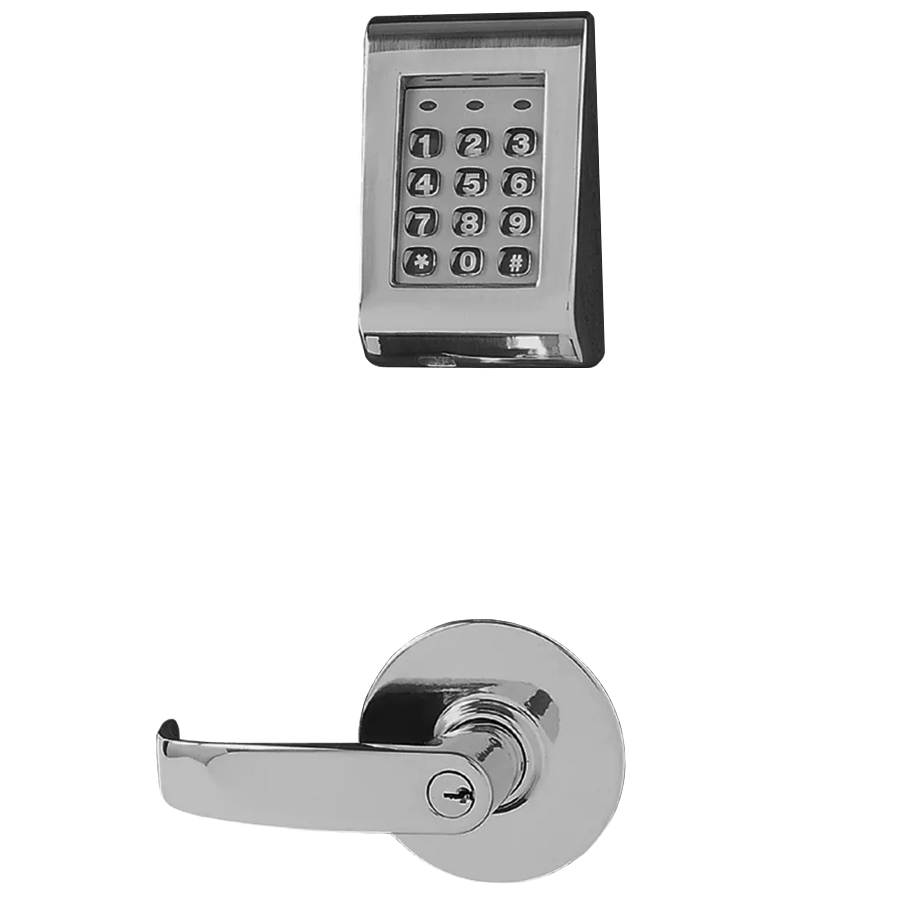

Sargent KP-10XG77LL26D Standalone Keypad Grade 1 Lock, L Lever, LA Keyway, Satin Chrome Finish

Sargent KP10XG77LL26D Standalone Keypad Storeroom Grade 1 Lock combines robust security features with elegant design, making it an ideal choice for commercial applications. Engineered to prevent unauthorized entry while facilitating safe egress, this lock withstands over 3,100 in-lb locked lever torque, exceeding ANSI/BHMA A156.2 requirements by 2.6 times. It also resists 1,600 lbs of offset lever pull, demonstrating its exceptional durability. The KP10XG77LL26D ensures reliable latch retraction even under a 100 lb preload, effectively operating in warped doors or those with latch bind. Designed for longevity, it has successfully completed the UL Cycle Above and Beyond test, enduring 20 million cycles (Verification ID: V584148) without failure. This storeroom lock features a sleek satin chrome finish (US26D), a 2-3/4" backset, and is compatible with door ranges from 1-3/8" to 2" thick. The L Lever and L Rose design adds a touch of sophistication while the LA Keyway enhances key security. Backed by a limited 10-year mechanical and 2-year electrical warranty, the Sargent KP10XG77LL26D is a reliable choice for securing your spaces.

Standalone Keypad Storeroom Grade 1 Lock with L Lever and L Rose with LA Keyway, 2-3/4" Backset, and ASA Strike Satin Chrome Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Accommodates retrofit applications with optional 2-3/8", 3-3/4", and 5" backset latches
• 6 ADA lever styles to complement a wide array of design applications
• Levers (B, L, J & P) are non-handed for efficient warehousing and for ease of installation
• 11 Architectural grade Finishes:
• Cycle Test: Exceeds 5 times A156.2 Grade 1 requirements
• Abusive Locked Lever Torque- without entry gained: Exceeds 1.5 times A156.2 Grade 1 requirements
• Slim rose design available
• Decorative Levers – Coastal Series designs – Gulfport and Yarmouth
• Levers are solid one piece cast construction, except "J" lever
• Torx® and spanner screws optional
• Classroom security and multiple locking Functions: are available
• Vandal resistant, Free Wheeling (FW) trim optional (not available with 70 or 71 Functions:)
• Security key systems available (Signature Keso, BR-XC, XC)
• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
