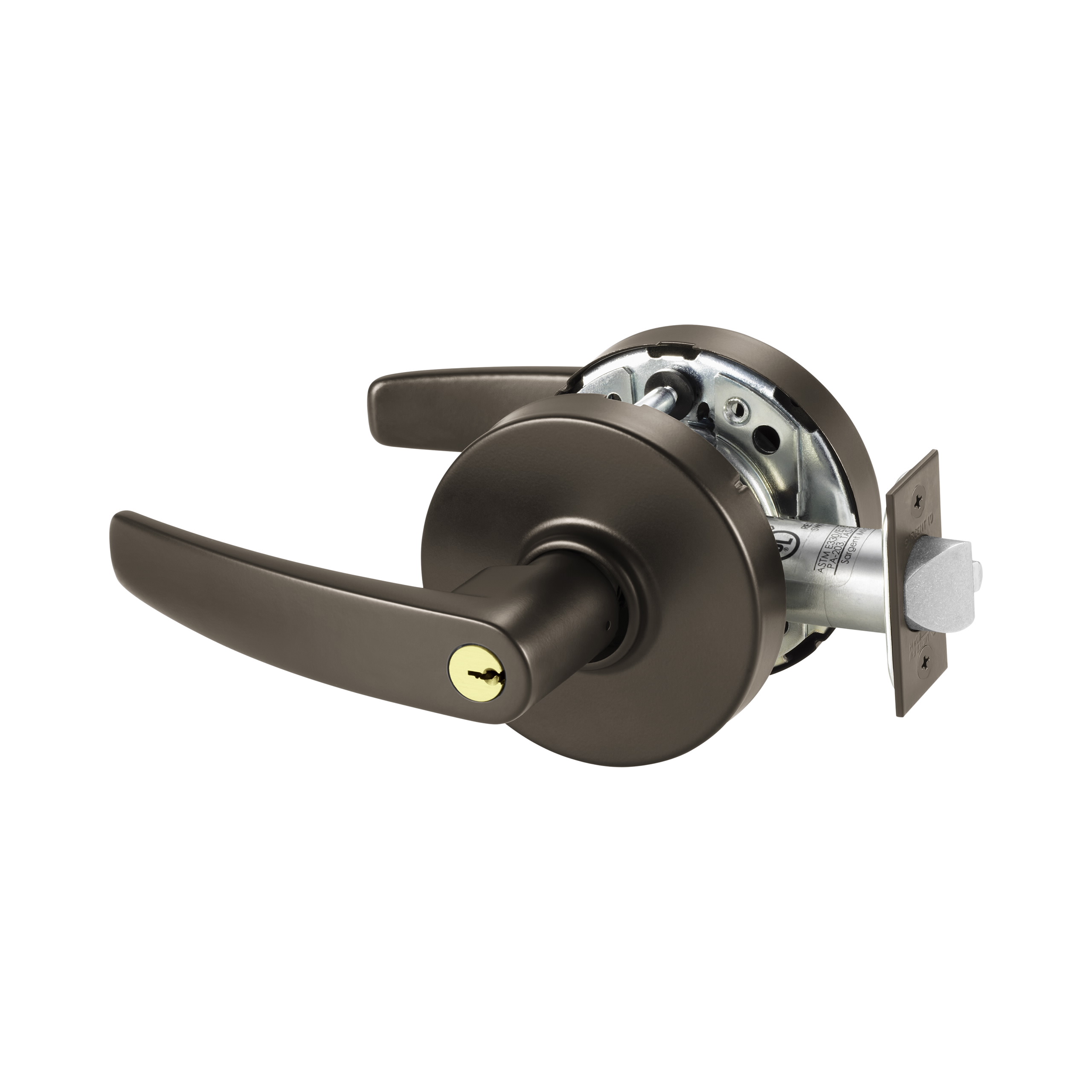

Sargent LC-10XG04 LB 10BE F86 Grade 1 Cylindrical Lever Lock, B Lever, L Rose, Dark Bronze Finish

Sargent LC10XG04LB10BE Storeroom or Closet (F86) Cylindrical Lever Lock combines robust security with elegant design. This Grade 1 lockset features a B Lever and L Rose, finished in a striking dark bronze that complements any commercial or institutional setting. Engineered for exceptional durability, this lock withstands over 3,100 in-lb of locked lever torque, far exceeding ANSI/BHMA A156.2 requirements. It is designed to endure a staggering 1,600 lbs of offset lever pull while maintaining steadfast entry restriction. The latch retraction is reliable even with a 100 lb preload, ensuring functionality in warped doors or those experiencing latch bind. Furthermore, it prohibits entry after enduring over 100 vertical impacts, establishing its resilience in high-traffic environments. The LC10XG04LB10BE is UL Listed with a 3-hour fire rating and has successfully passed the rigorous UL Cycle Above and Beyond test, achieving 20 million cycles (Verification ID: V584148). Compatible with doors ranging from 1-3/4" to 2" thick, this lockset features a 2-3/4" backset and a 2-1/8" crossbore size. With a 7-year limited warranty, the Sargent LC10XG04LB10BE ensures peace of mind and reliable performance for years to come.

Storeroom or Closet (F86) Cylindrical Lever Lock Grade 1 with B Lever and L Rose with ASA Strike Less Cylinder Dark Bronze Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
