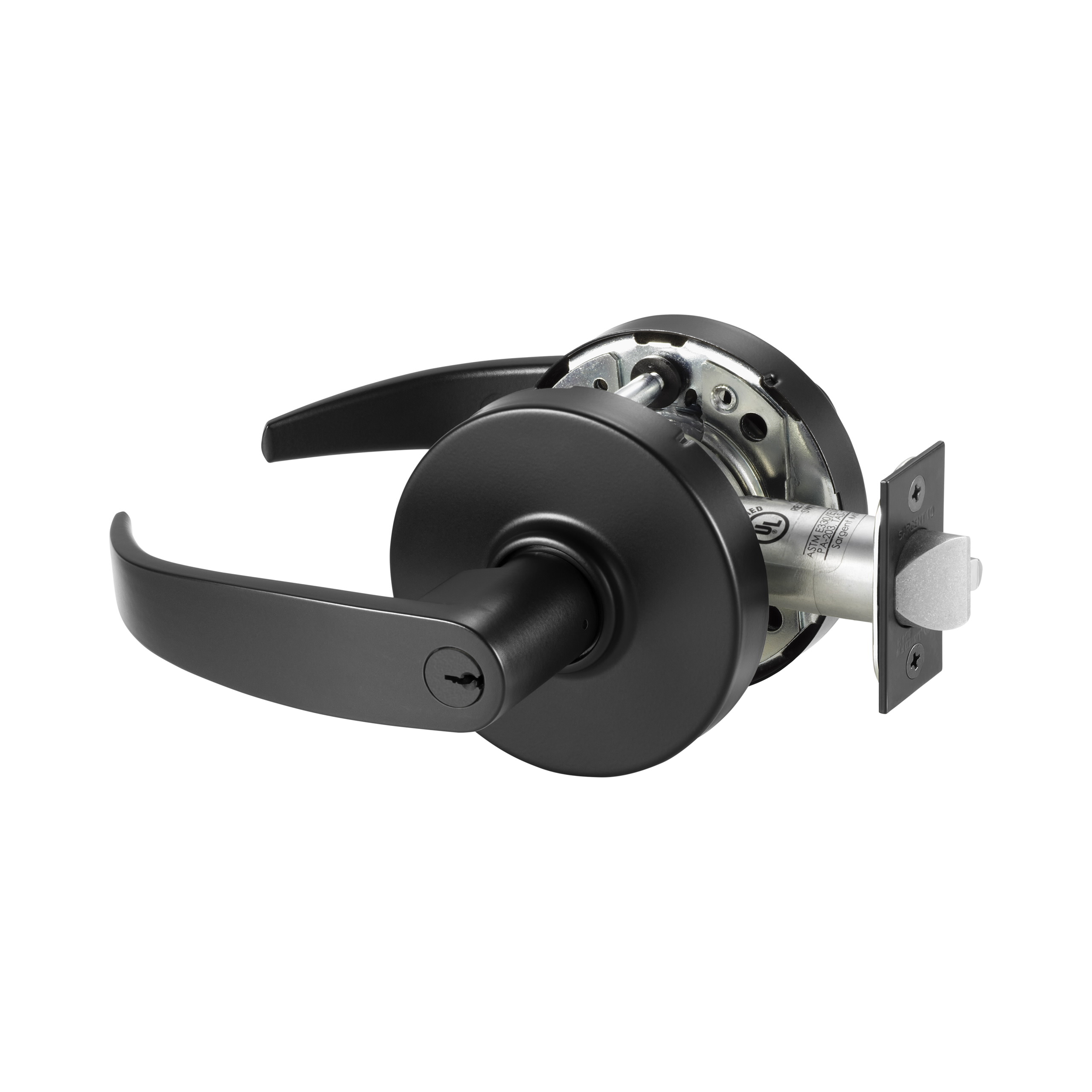

Sargent LC-10XG04 LP BSP F86 Grade 1 Cylindrical Lever Lock, P Lever, L Rose, Black Suede Finish

Sargent LC10XG04LPBSP Storeroom or Closet (F86) Cylindrical Lever Lock combines exceptional security with a sleek design, making it an ideal choice for various applications. Built to withstand demanding conditions, this Grade 1 lock features a robust P lever and L rose, ensuring durability and reliability in high-traffic areas. The black suede powder coat finish not only enhances its aesthetic appeal but also provides added protection against wear and tear. Engineered with superior performance in mind, the Sargent LC10XG04LPBSP can withstand over 3,100 in-lb of locked lever torque and 1,600 lbs of offset lever pull, far exceeding ANSI/BHMA A156.2 requirements. It also ensures effective latch retraction under a 100 lb preload, maintaining functionality even in warped doors or those with latch bind. With a UL Cycle rating of 20 million cycles, this lock is designed for longevity. Designed for doors ranging from 1-3/4" to 2" thick, it features a 2-1/4" x 1-1/8" latch faceplate and an ASA strike with dimensions of 4-7/8" and a 1-1/4" lip. Backed by a 7-year limited warranty, the Sargent LC10XG04LPBSP is a dependable choice for commercial environments requiring both security and style.

Storeroom or Closet (F86) Cylindrical Lever Lock Grade 1 with P Lever and L Rose with ASA Strike Less Cylinder Black Suede Powder Coat Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
