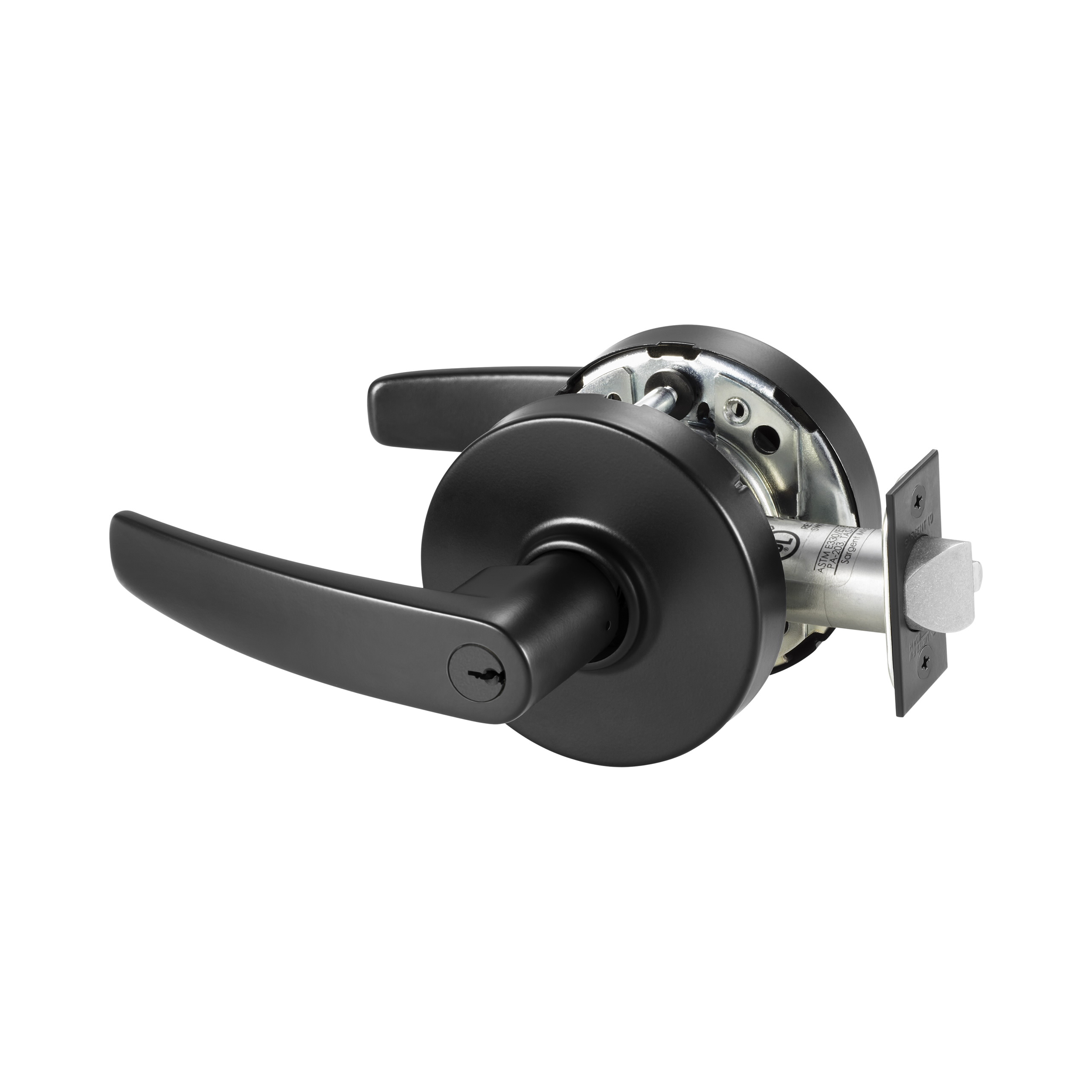

Sargent LC-10XG05 LB BSP F109 Grade 1 Cylindrical Lever Lock, B Lever, L Rose, Black Suede Finish

Sargent LC10XG05LBBSP Entry Office (F109) Cylindrical Lever Lock Grade 1 is a robust locking solution designed for high-traffic environments. Featuring a stylish Black Suede Powder Coat Finish, this lockset combines durability with aesthetic appeal, making it ideal for commercial, healthcare, industrial, and educational settings. Engineered to withstand over 3,100 in-lb of locked lever torque, the LC10XG surpasses ANSI/BHMA A156.2 requirements, ensuring reliable security. Its impressive 1,600 lbs offset lever pull resistance means that it continues to restrict entry even under significant force. The lock allows for smooth operation with a 100 lb preload, accommodating warped doors or those with latch bind. This model meets rigorous UL standards, having completed 20 million cycle tests, proving its resilience in demanding applications. The lockset features a 2-3/4" backset, a 2-1/8" crossbore size, and is compatible with doors ranging from 1-3/4" to 2" thick. With a 7-year limited warranty, the Sargent LC10XG05LBBSP not only enhances security but also offers peace of mind, making it a top choice for building professionals seeking reliability and style.

Entry Office (F109) Cylindrical Lever Lock Grade 1 with B Lever and L Rose with ASA Strike Less Cylinder Black Suede Powder Coat Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
