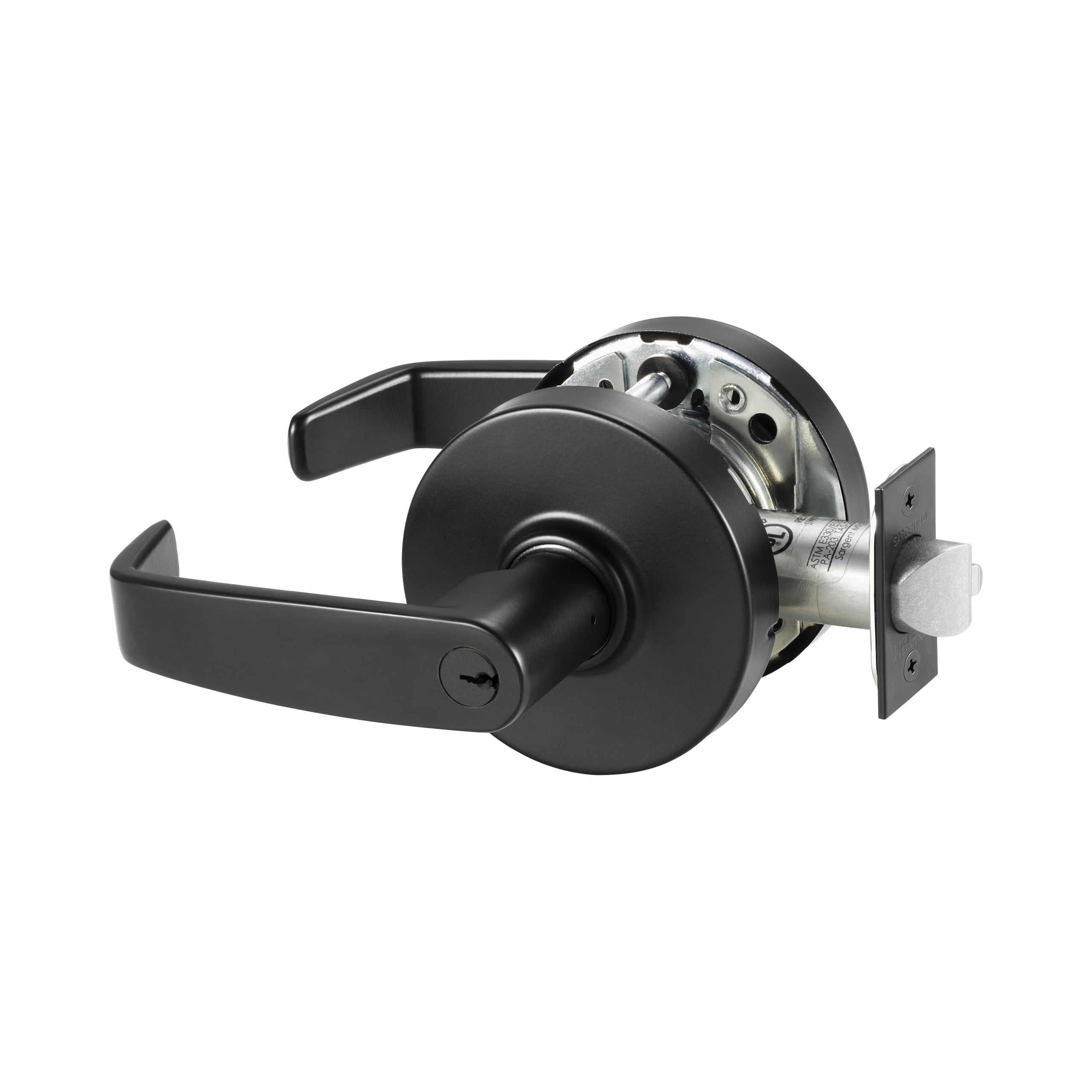

Sargent LC-10XG05 LL BSP F109 Grade 1 Cylindrical Lever Lock with L Lever Rose, Black Suede Finish

Sargent LC10XG05LLBSP Entry Office (F109) Cylindrical Lever Lock Grade 1 offers unmatched security and durability for commercial applications. Crafted from zinc and finished in a sleek Black Suede Powder Coat, this lockset combines aesthetics with robust functionality. Designed to withstand the rigors of daily use, it prevents entry while ensuring smooth egress against over 3,100 in-lb locked lever torque-far exceeding ANSI/BHMA A156.2 requirements. With a resistance to 1,600 lbs of offset lever pull and over 100 vertical impacts, the LC10XG05LLBSP demonstrates extraordinary resilience, making it ideal for high-traffic areas. The lockset features a 2-3/4" backset, 2-1/8" crossbore size, and a latch faceplate dimension of 1-1/8" x 2-1/4", fitting doors ranging from 1-3/4" to 2" thick. Its L lever design paired with an L rose ensures ease of operation, while the UL listing confirms a 3-hour fire rating, enhancing safety in critical environments. Backed by a 7-year limited warranty, the Sargent LC10XG05LLBSP is a reliable choice for those seeking high-quality mechanical commercial locksets, providing peace of mind without sacrificing style.

Entry Office (F109) Cylindrical Lever Lock Grade 1 with L Lever and L Rose with ASA Strike Less Cylinder Black Suede Powder Coat Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
