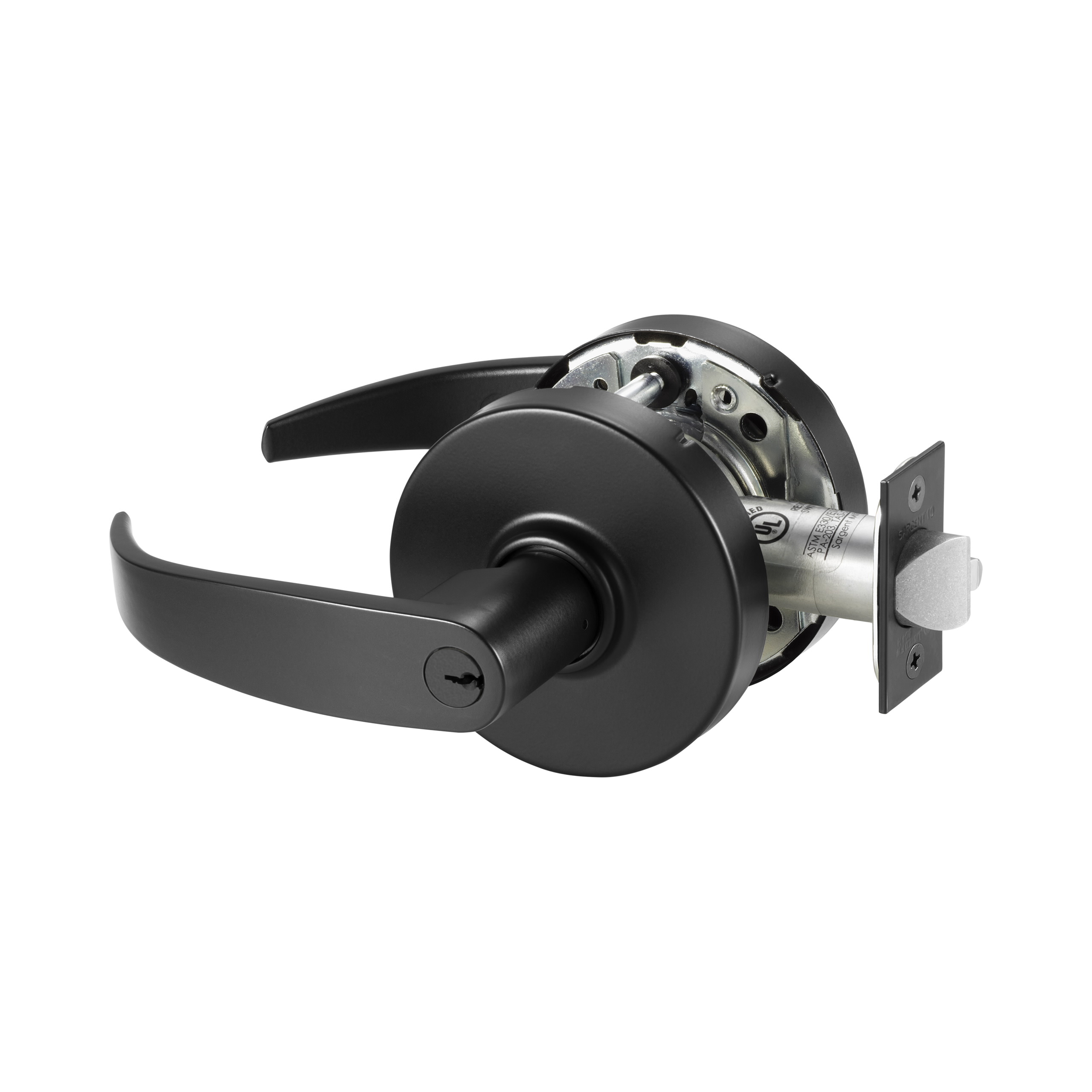

Sargent LC-10XG05 LP BSP F109 Grade 1 Cylindrical Lever Lock, P Lever, L Rose, Black Suede Finish

Sargent LC10XG05LPBSP Entry Office (F109) Cylindrical Lever Lock Grade 1 combines robust security with stylish design in a versatile package. Featuring a P Lever and L Rose, this lockset is finished in an attractive Black Suede Powder Coat, ensuring both durability and aesthetic appeal. Designed for a variety of commercial applications, it provides exceptional performance, preventing unauthorized entry while allowing safe egress. This lockset exceeds industry standards with remarkable resistance to forced entry, boasting a locked lever torque of over 3,100 in-lb, which is 2.6 times the ANSI/BHMA A156.2 requirements. It withstands an offset lever pull of 1,600 lbs, maintains reliable latch retraction under a 100 lb preload, and endures more than 100 vertical impacts. With a UL Cycle Above and Beyond test rating of 20 million cycles, this lock is built for longevity. Designed for doors ranging from 1-3/4" to 2" thick, it features a 2-3/4" backset, a 2-1/8" crossbore size, and a latch faceplate measuring 1-1/8" x 2-1/4". With a 7-year limited warranty, the Sargent LC10XG05LPBSP is an excellent choice for those seeking reliable security solutions without compromising on style.

Entry Office (F109) Cylindrical Lever Lock Grade 1 with P Lever and L Rose with ASA Strike Less Cylinder Black Suede Powder Coat Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
