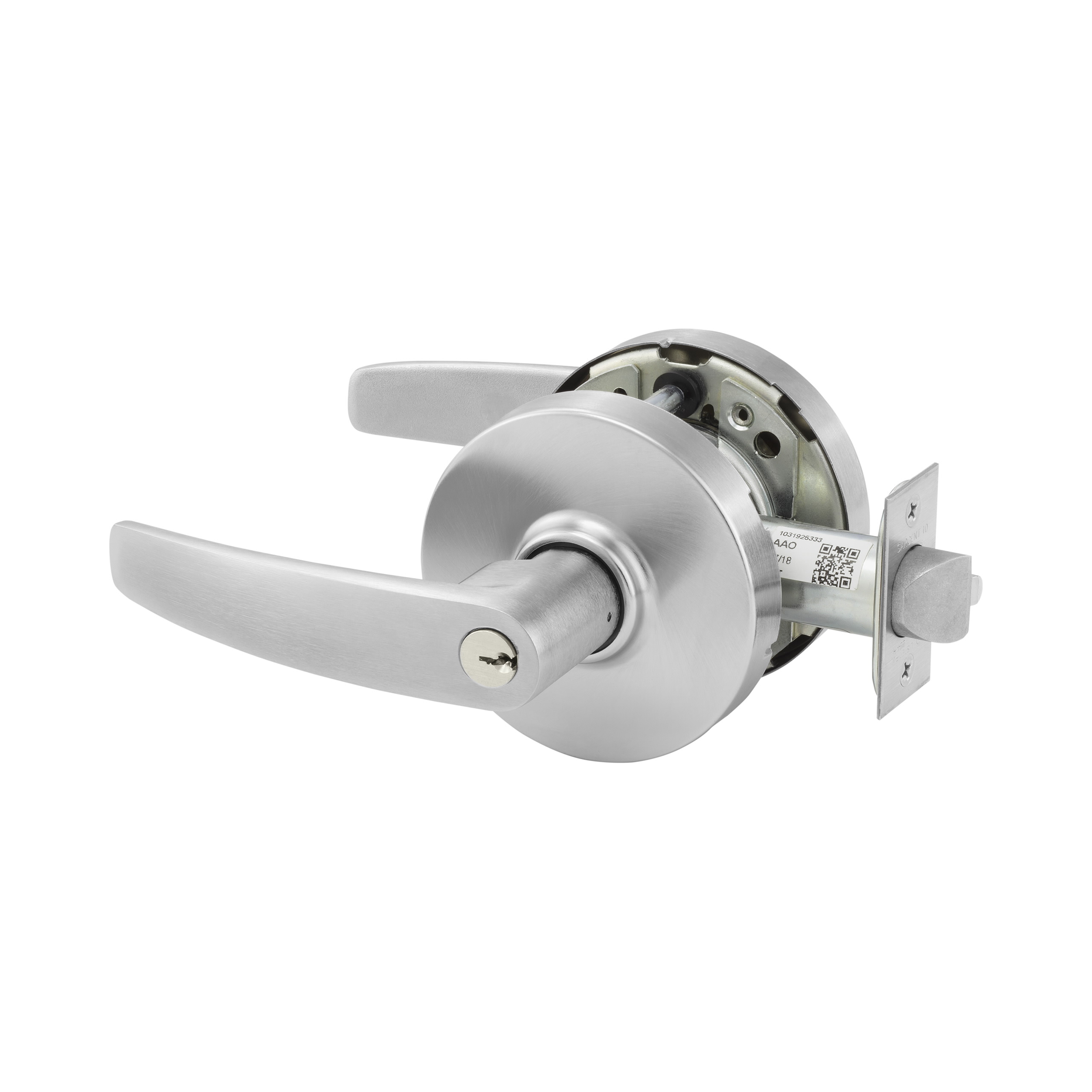

Sargent LC10XG17LB26D Utility Asylum Institutional Double Cylinder Lever Lock Grade 1 combines robust security features with a sleek design, making it an ideal choice for institutional settings. This mechanical lockset is rated Grade 1, ensuring high durability and reliability, suitable for high-traffic areas. It features a B lever design with an L rose, providing both functionality and style. Designed for doors ranging from 1-3/4" to 2" thick, the lockset has a 2-3/4" backset and a crossbore size of 2-1/8", facilitating easy installation. The satin chrome finish not only enhances the aesthetic appeal but also provides added resistance against wear and tarnishing. This double cylinder lock is reversible, accommodating various handing needs, and includes an ASA strike with a dimension of 4-7/8" and a 1-1/4" lip. The latch faceplate measures 1-1/8" x 2-1/4", ensuring a secure fit. With a UL listing for 3-hour doors and a 7-year limited warranty, the Sargent LC10XG17LB26D is a reliable choice for those seeking exceptional security and performance in their architectural hardware.
Utility Asylum Institutional Double Cylinder Lever Lock Grade 1 with B Lever and L Rose with ASA Strike Less Cylinder Satin Chrome Finish
Alternate Codes: LC-10XG17-LB-26D, LC10XG17LB26D
Backset: 2-3/4" Backset
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore
Design: B Lever
Dimension: 4-9/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: 26D
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: Utility Asylum Institutional Double Cylinder
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: B Lever
Limited Warranty: 10 Year Limited Warranty
Manufacturer Warranty: 7 Year Limited Warranty
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: L Rose
Series: 10X Line Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed 3 Hour Door
