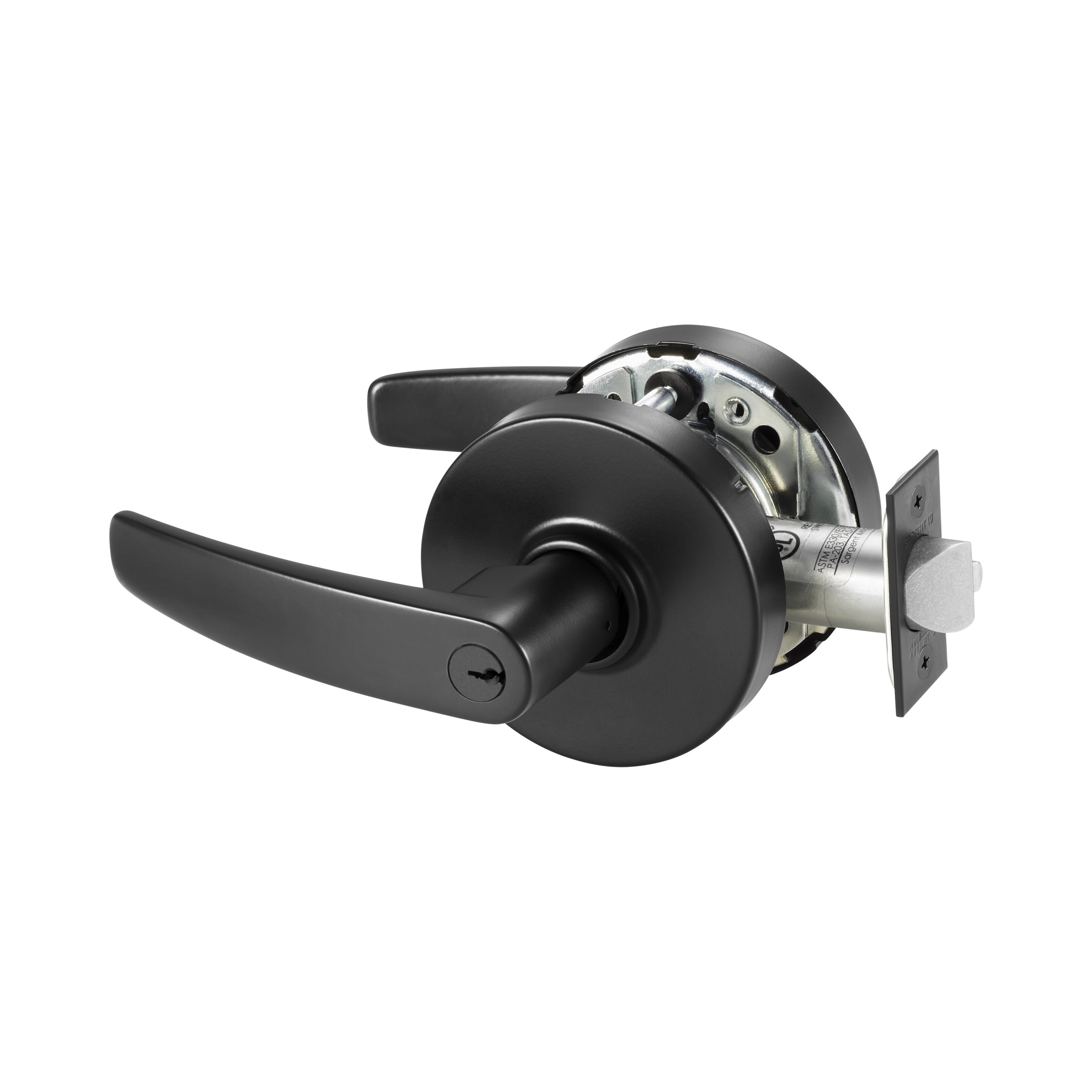

Sargent LC-10XG17 LB BSP F87 Double Cylinder Grade 1 Lever Lock with B Lever, L Rose, Black Suede Finish

Sargent LC10XG17LBBSP Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock Grade 1 combines robust security with sleek design. Engineered for high-performance in demanding environments, this lockset showcases exceptional strength, boasting a locked lever torque resistance of over 3,100 in-lb-2.6 times the ANSI/BHMA A156.2 requirements. Its durability is further highlighted by its ability to withstand an offset lever pull of 1,600 lbs and over 100 vertical impacts, ensuring reliable operation in high-traffic areas. The lock features a 2-3/4" backset and a 2-1/8" crossbore size, accommodating doors ranging from 1-3/4" to 2" thick. With a black suede powder coat finish, the Sargent LC10XG17LBBSP is not only stylish but also built to endure the rigors of institutional use. It includes a B lever design with an L rose and is equipped with an ASA strike for added security. This Grade 1 lockset is UL listed with a 3-hour fire rating, assuring peace of mind in emergency situations. Backed by a 7-year limited warranty, it is an ideal choice for commercial, healthcare, and educational facilities seeking superior security solutions.

Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock Grade 1 with B Lever and L Rose with ASA Strike Less Cylinder Black Suede Powder Coat Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
