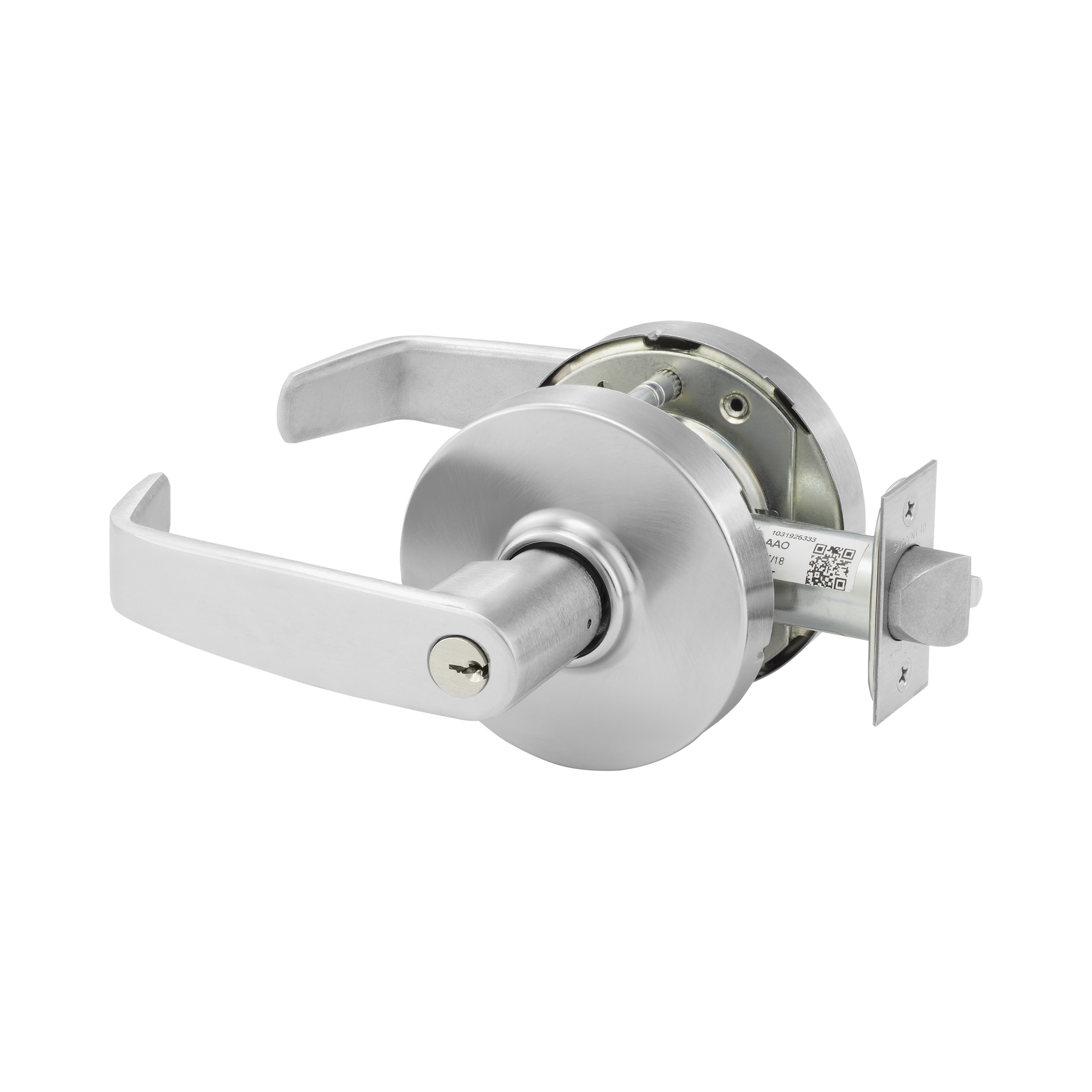

Sargent LC10XG17LL26D Utility Asylum Institutional Double Cylinder Lever Lock is designed for high-security applications where reliable access control is paramount. This Grade 1 mechanical lockset features a robust double cylinder mechanism, making it ideal for institutional settings. With a sleek satin chrome finish, it not only provides durability but also enhances the aesthetic appeal of any door. This lockset is equipped with an L lever and L rose design, ensuring ease of use while maintaining a professional look. The 2-3/4" backset accommodates standard door dimensions, and it can be installed on doors ranging from 1-3/4" to 2" thick. The 2-1/8" crossbore size and 4-1/2" lever with 2-15/16" projection complement a variety of door styles, while the ASA strike, measuring 4-7/8" with a 1-1/4" lip, provides a secure fit. The reversible handing allows for versatile installation, and the lockset is UL Listed for 3-hour doors, ensuring compliance with safety standards. Backed by a 7-year limited warranty, the Sargent LC10XG17LL26D is a reliable choice for those seeking quality and security in architectural door hardware.
Utility Asylum Institutional Double Cylinder Lever Lock Grade 1 with L Lever and L Rose with ASA Strike Less Cylinder Satin Chrome Finish
Alternate Codes: LC-10XG17-LL-26D, LC10XG17LL26D
Backset: 2-3/4" Backset
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore
Design: L Lever
Dimension: 4-1/2" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: 26D
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: Utility Asylum Institutional Double Cylinder
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: L Lever
Limited Warranty: 10 Year Limited Warranty
Manufacturer Warranty: 7 Year Limited Warranty
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: L Rose
Series: 10X Line Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed 3 Hour Door
