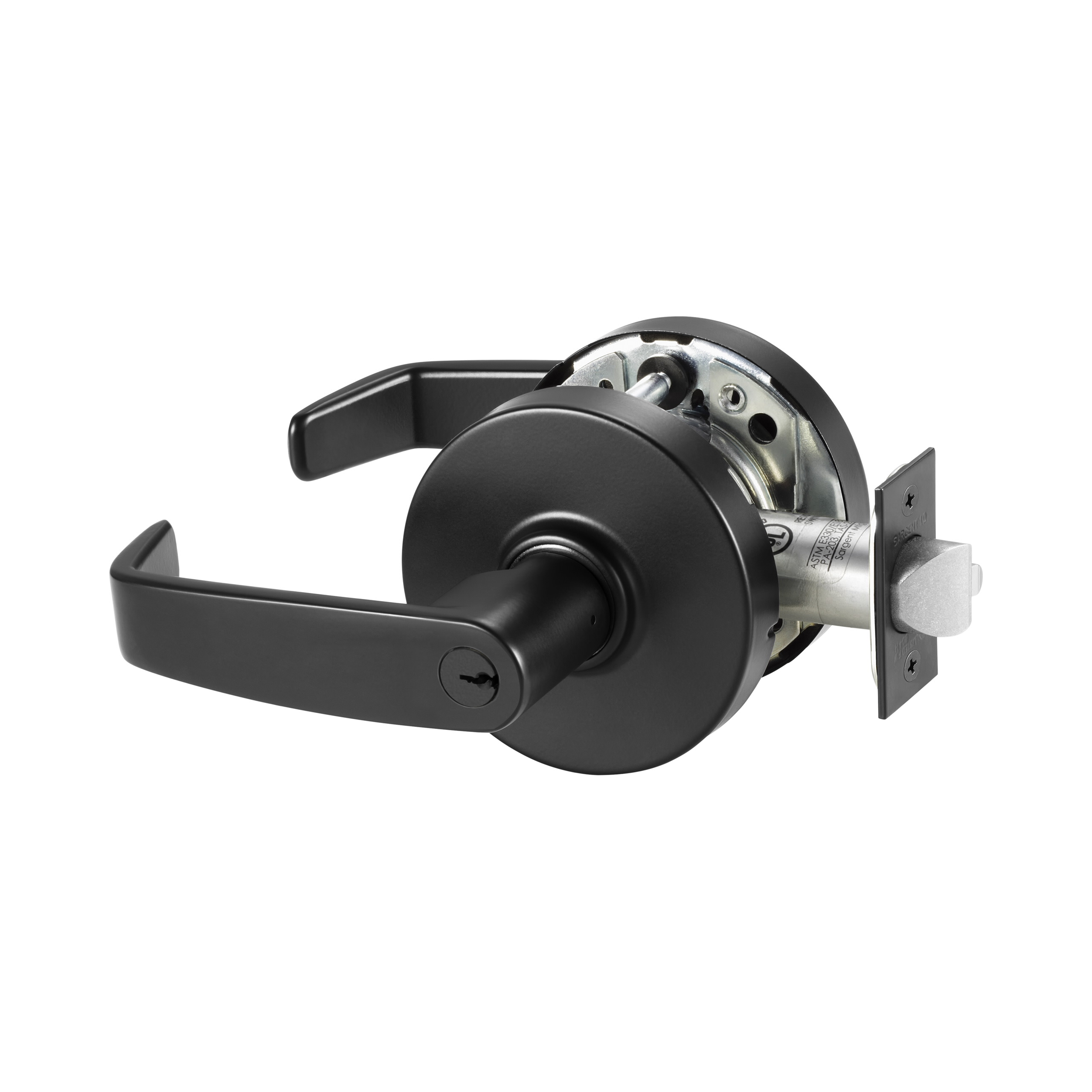

Sargent LC-10XG17 LL BSP F87 Institutional Double Cylinder Lever Lock Grade 1, Black Suede Finish

Sargent LC10XG17LLBSP Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock Grade 1 combines robust security with thoughtful design, making it an ideal choice for high-security environments. Engineered to prevent unauthorized entry while ensuring safe egress, this lockset withstands over 3,100 in-lb of locked lever torque and 1,600 lbs of offset lever pull, far exceeding ANSI/BHMA A156.2 standards. The lock features a durable black suede powder coat finish, offering both aesthetic appeal and resistance to wear. It is designed for doors ranging from 1-3/4" to 2" thick and includes a 2-3/4" backset with a 2-1/8" crossbore size, making it suitable for various applications. With a latch retraction capability under 100 lbs of preload, it ensures reliability even in warped doors. This utility asylum lockset is UL listed and has successfully completed 20 million cycles in testing, highlighting its durability and long-lasting performance. The L lever and L rose design enhances accessibility without compromising security. Backed by a 7-year limited warranty, the Sargent LC10XG17LLBSP is an essential component for maintaining safety in institutional settings.

Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock Grade 1 with L Lever and L Rose with ASA Strike Less Cylinder Black Suede Powder Coat Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
