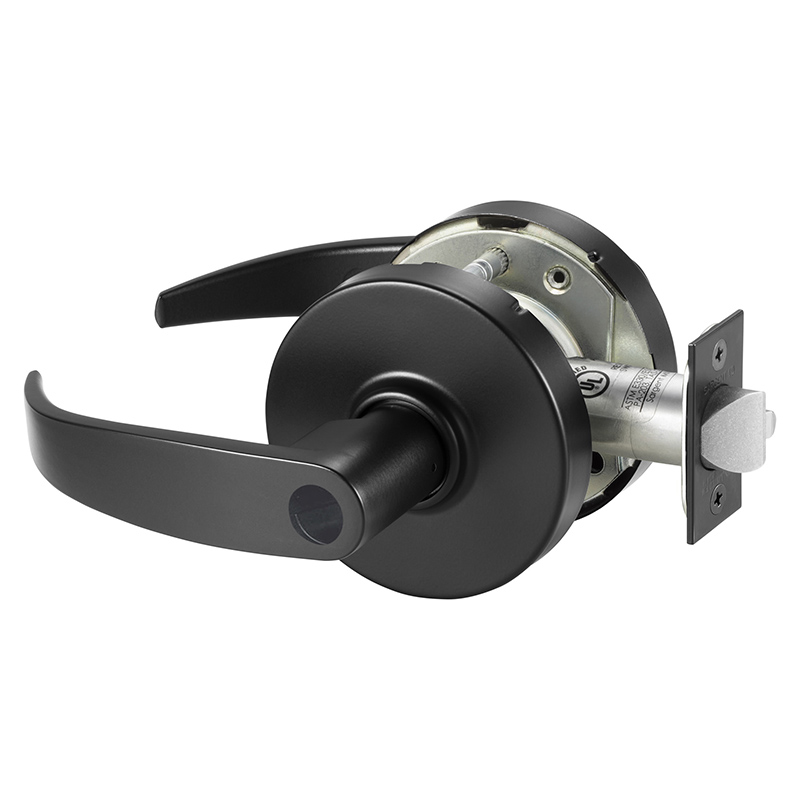

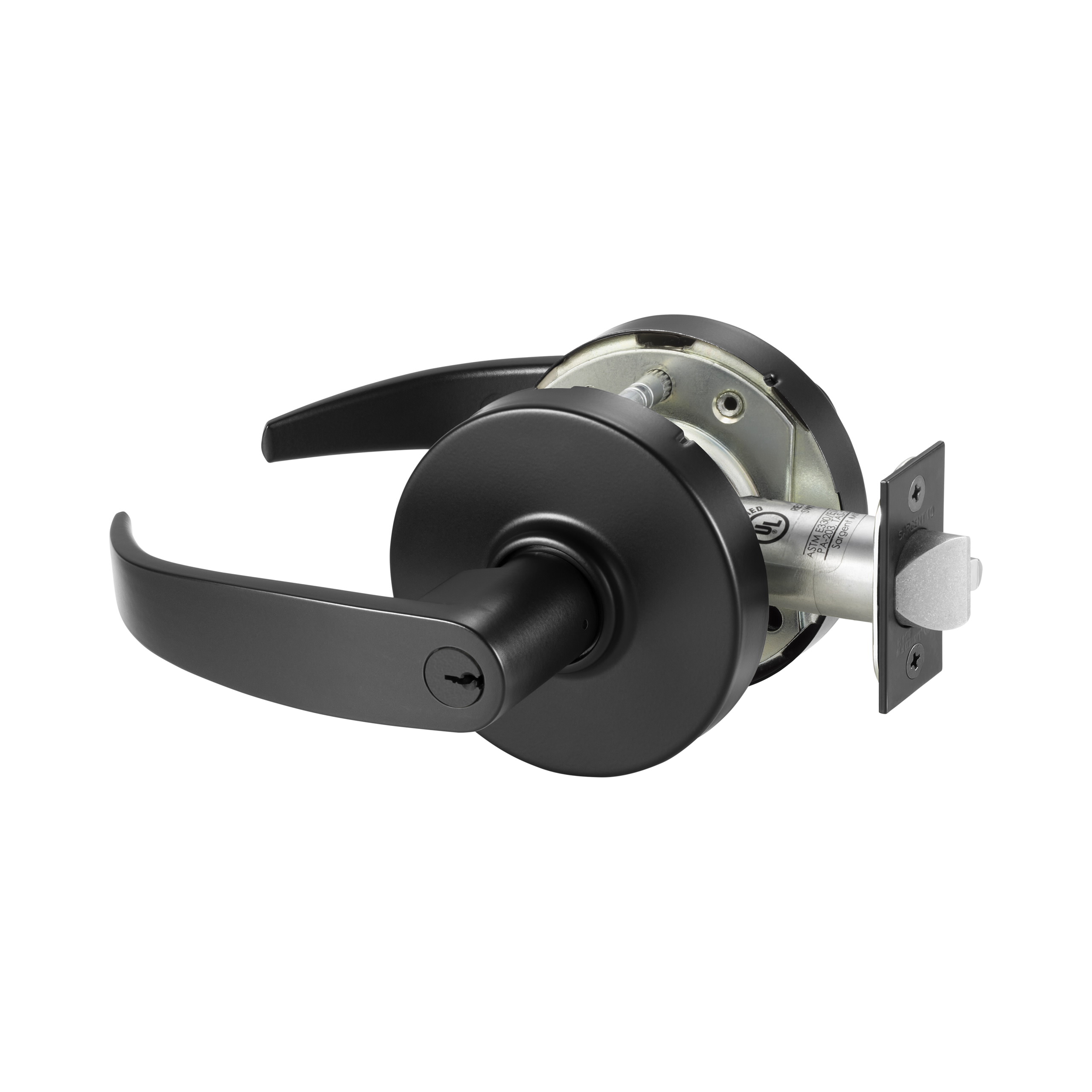

Sargent LC-10XG17 LP BSP F87 Grade 1 Double Cylinder Lever Lock with P Lever L Rose, Black Suede Finish

Sargent LC10XG17LPBSP Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock Grade 1 combines robust security with practical application. Designed for institutional environments, this lockset features a P Lever design and L Rose, ensuring both style and functionality. Finished in a sleek Black Suede Powder Coat, it not only looks professional but also resists wear over time. This double cylinder lockset excels in security, withstanding more than 3,100 in-lb of locked lever torque, which is 2.6 times the ANSI/BHMA A156.2 requirements. Its durability is further demonstrated by its ability to endure an offset lever pull of 1,600 lbs and over 100 vertical impacts, ensuring long-lasting performance under demanding conditions. The UL Cycle test confirms its reliability, having completed 20 million cycles. Designed for doors ranging from 1-3/4" to 2" thick, the Sargent LC10XG17LPBSP is equipped with a 2-3/4" backset and a 2-1/8" crossbore size, making installation straightforward. The 1-1/8" x 2-1/4" latch faceplate and ASA strike provide added security and compatibility. Backed by a 7-year limited warranty, this lockset is an ideal choice for anyone seeking high-performance security solutions in institutional spaces.

Utility Asylum Institutional (F87) Double Cylinder Cylindrical Lever Lock Grade 1 with P Lever and L Rose with ASA Strike Less Cylinder Black Suede Powder Coat Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
