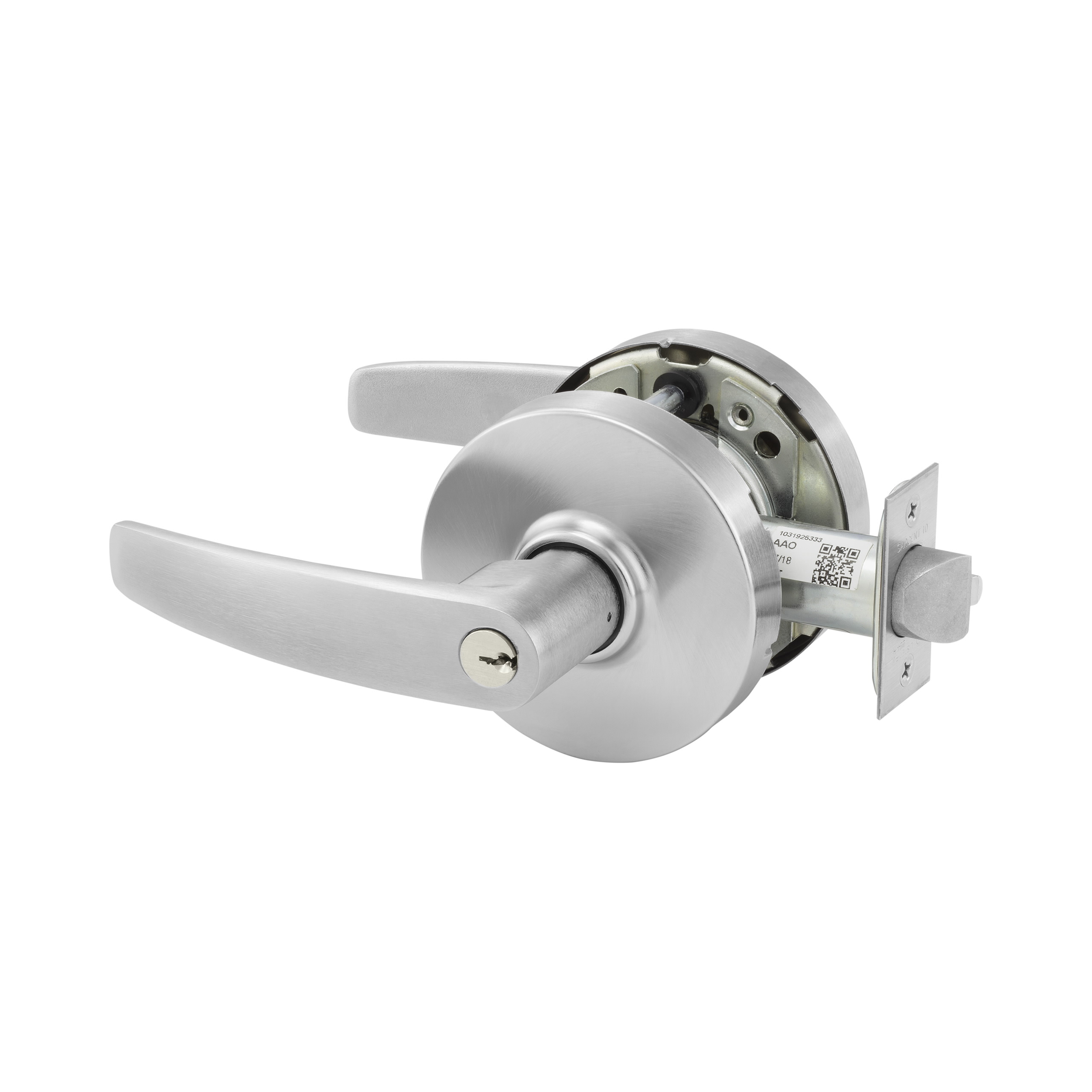

Sargent LC10XG24LB26D Entry Lever Lock Grade 1 features a robust design tailored for commercial applications. This high-quality lockset showcases a B lever and L rose, finished in a sleek satin chrome that not only enhances aesthetics but also ensures durability. The reversible handing makes installation straightforward, accommodating various door configurations. Designed for doors ranging from 1-3/4" to 2" thick, the LC10XG24LB26D includes a 2-3/4" backset and a 2-1/8" crossbore, facilitating compatibility with standard door preparations. The ASA strike, measuring 4-7/8" with a 1-1/4" lip, is engineered for secure engagement, while the latch faceplate dimension of 1-1/8" x 2-1/4" adds to the overall reliability of the lockset. With a 7-year limited warranty, you can trust in the longevity and performance of this product, which is UL Listed for a 3-hour door. The 4-9/16" lever with a 2-15/16" projection ensures a comfortable grip, making this lockset both functional and user-friendly. Whether for new construction or retrofit projects, the Sargent LC10XG24LB26D is an ideal choice for those seeking quality and security in their locking solutions.
Entry Lever Lock Grade 1 with B Lever and L Rose with ASA Strike Less Cylinder Satin Chrome Finish
Alternate Codes: LC-10XG24-LB-26D, LC10XG24LB26D
Backset: 2-3/4" Backset
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore
Design: B Lever
Dimension: 4-9/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: 26D
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: Entry
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: B Lever
Limited Warranty: 10 Year Limited Warranty
Manufacturer Warranty: 7 Year Limited Warranty
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: L Rose
Series: 10X Line Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed 3 Hour Door
