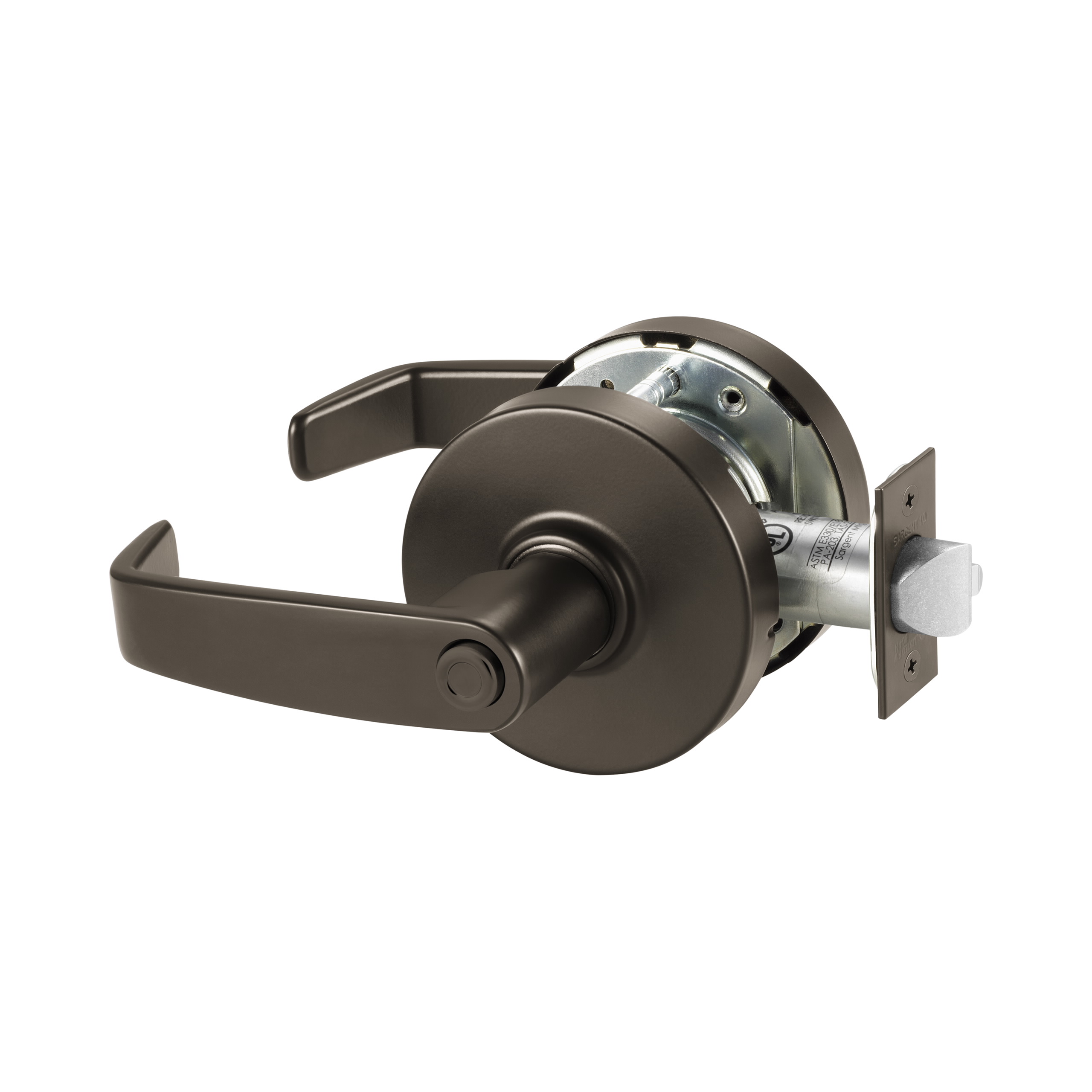

Sargent LC10XG24LL10BE Entry Cylindrical Lock Grade 1 with L Lever and L Rose offers robust security and functional design for commercial environments. This Grade 1 mechanical lockset is crafted to meet rigorous safety standards, featuring a durable dark bronze finish that not only enhances aesthetics but also provides resistance to wear and tear. With a 2-3/4" backset and a crossbore size of 2-1/8", this lock is compatible with doors ranging from 1-3/4" to 2" thick, making it versatile for various applications. The reversible handing allows for easy installation on either side of the door, accommodating different architectural needs. The L lever design, combined with a 3-1/2" L rose and a latch faceplate dimension of 1-1/8" x 2-1/4", ensures a comfortable grip and smooth operation. For added peace of mind, the Sargent LC10XG24LL10BE is UL Listed for 3-hour doors and comes with a 7-year limited warranty. It includes an ASA strike with a dimension of 4-7/8" and a 1-1/4" lip, ensuring a secure fit. This lockset is an ideal choice for those seeking reliability and style in their entryways.
Entry Cylindrical Lock Grade 1 with L Lever and L Rose and ASA Strike Less Cylinder Dark Bronze Finish
Alternate Codes: LC-10XG24-LL-10BE, LC10XG24LL10BE
Backset: 2-3/4" Backset
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore
Design: L Lever
Dimension: 4-1/2" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Finish: Dark Bronze
Finish Code: 10BE
Finish Description: Dark Oxidized Bronze
Fire Rated: 3 Hours {A}
Function: Entrance
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: L Lever
Limited Warranty: 10 Year Limited Warranty
Manufacturer Warranty: 7 Year Limited Warranty
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: L Rose
Series: 10X Line Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed 3 Hour Door
