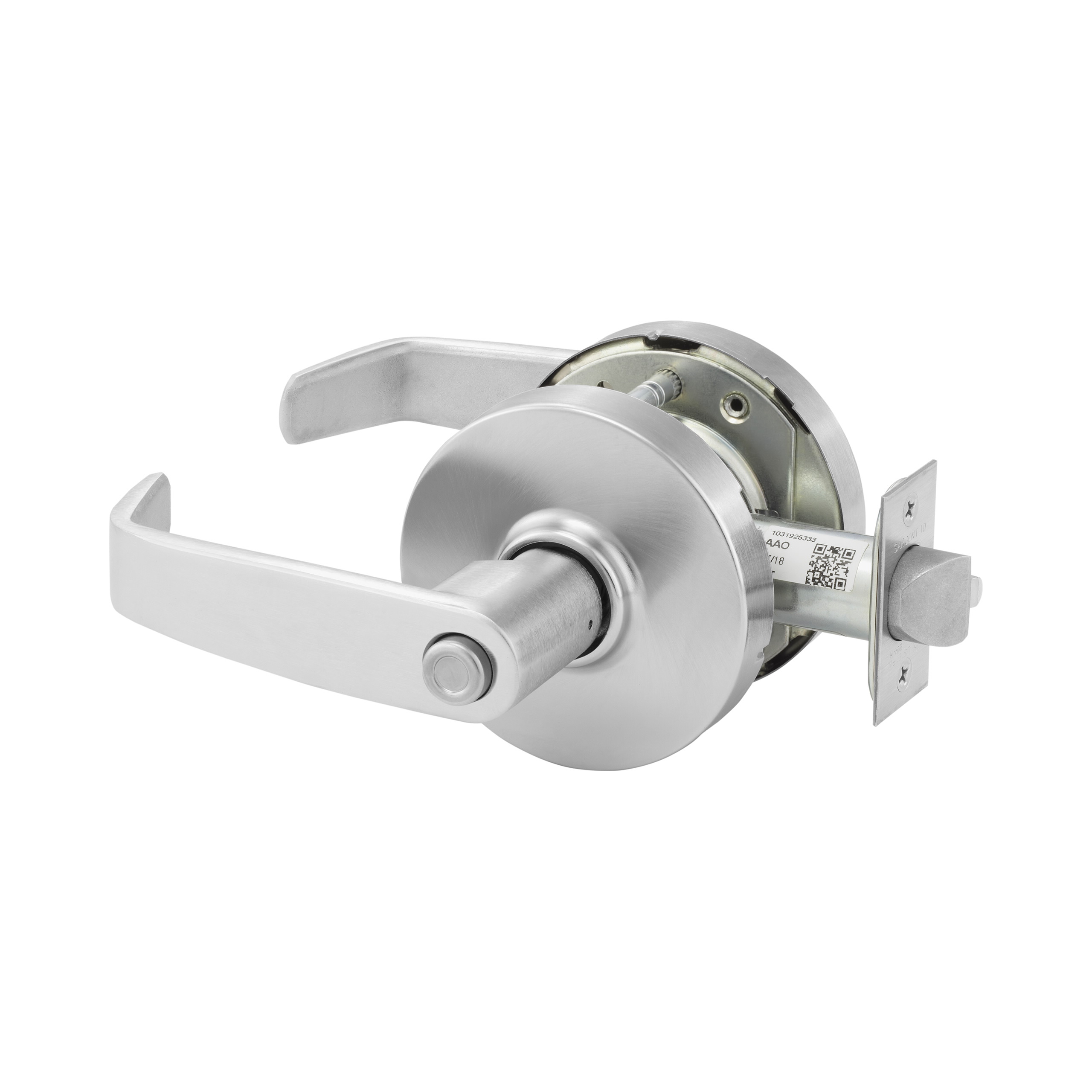

Sargent LC10XG24LL26D Entry Lever Lock delivers exceptional security and functionality for commercial applications. This Grade 1 mechanical lockset features a sleek satin chrome finish that not only enhances durability but also complements various architectural styles. Designed with an L Lever and L Rose, it provides a comfortable grip and easy operation. With a 2-3/4" backset and a 2-1/8" crossbore size, the LC10XG fits standard door preparations, accommodating door thicknesses ranging from 1-3/4" to 2". The reversible handing allows for versatile installation options to suit different door orientations. The lockset is equipped with an ASA strike measuring 4-7/8" with a 1-1/4" lip, ensuring a strong and reliable connection. Its latch faceplate dimension of 1-1/8" x 2-1/4" further enhances its robust design. Backed by a 7-year limited warranty and UL listed for 3-hour doors, the Sargent LC10XG24LL26D is engineered for long-lasting performance in high-traffic areas. This lockset combines security with style, making it an ideal choice for building professionals and discerning homeowners alike.
Attributes
Alternate Codes: LC-10XG24-LL-26D, LC10XG24LL26D
Ansi: F82A
Ansi Function: F82A - Entry
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Type: Less Cylinder
Cylinders Present: Single Cylinder
Design: L Lever
Dimension: 4-1/2" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: 26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Entry
Function Family: Entrance
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: L Lever
Lever Knob Design Name: L
Leverknob Design: L Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Entry
Manufacturer Warranty: 7 Year Limited Warranty
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: L Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X Line Series
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 10-2000
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL Listed 3 Hour Door
Unit of Measure: Each
