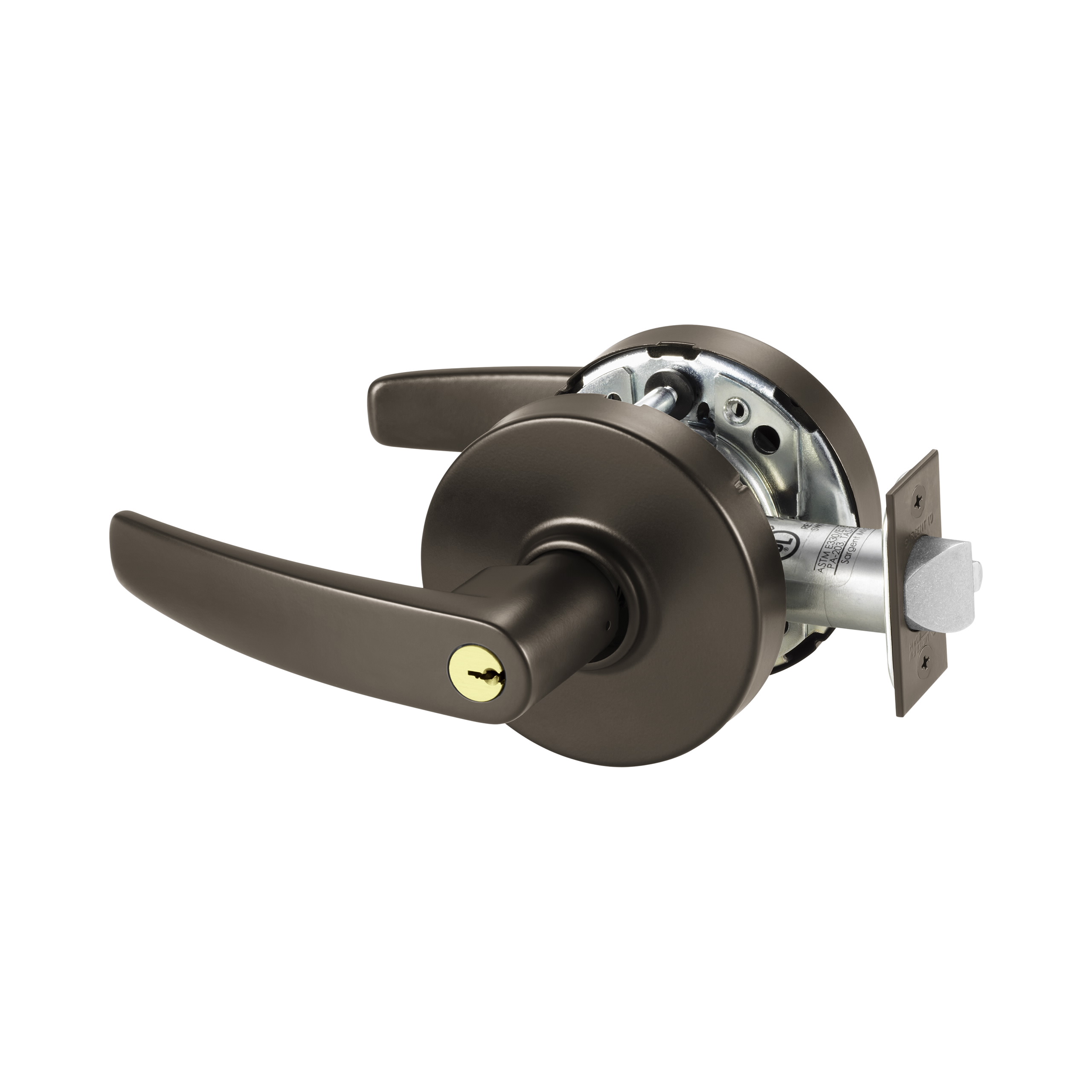

Sargent LC-10XG54 LB 10BE F90 Grade 1 Cylindrical Lever Lock, B Lever, L Rose, Dark Bronze Finish

Sargent LC10XG54LB10BE Corridor, Dormitory (F90) Cylindrical Lever Lock Grade 1 combines durability and security in a sleek design. Designed for high-traffic environments such as dormitories, this lockset features a robust B Lever and L Rose configuration, finished in an elegant dark bronze. Engineered to exceed ANSI/BHMA A156.2 requirements, it withstands over 3,100 in-lb of locked lever torque and an impressive 1,600 lbs of offset lever pull, ensuring reliable operation under pressure. The lockset guarantees latch retraction with a 100 lb preload, making it functional even in warped doors or those with latch bind. After enduring more than 100 vertical impacts, it continues to provide security, showcasing its strength and resilience. With a 2-3/4" backset and a 2-1/8" crossbore size, this lock is suitable for doors ranging from 1-3/4" to 2" thick. The UL cycle test confirms its durability, rated for 20 million cycles. The lock comes with a 7-year limited warranty, ensuring peace of mind. Ideal for commercial, healthcare, and educational settings, the Sargent LC10XG54LB10BE is a key component in maintaining building security and functionality.

Corridor, Dormitory (F90) Cylindrical Lever Lock Grade 1 with B Lever and L Rose with ASA Strike Less Cylinder Dark Bronze Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
