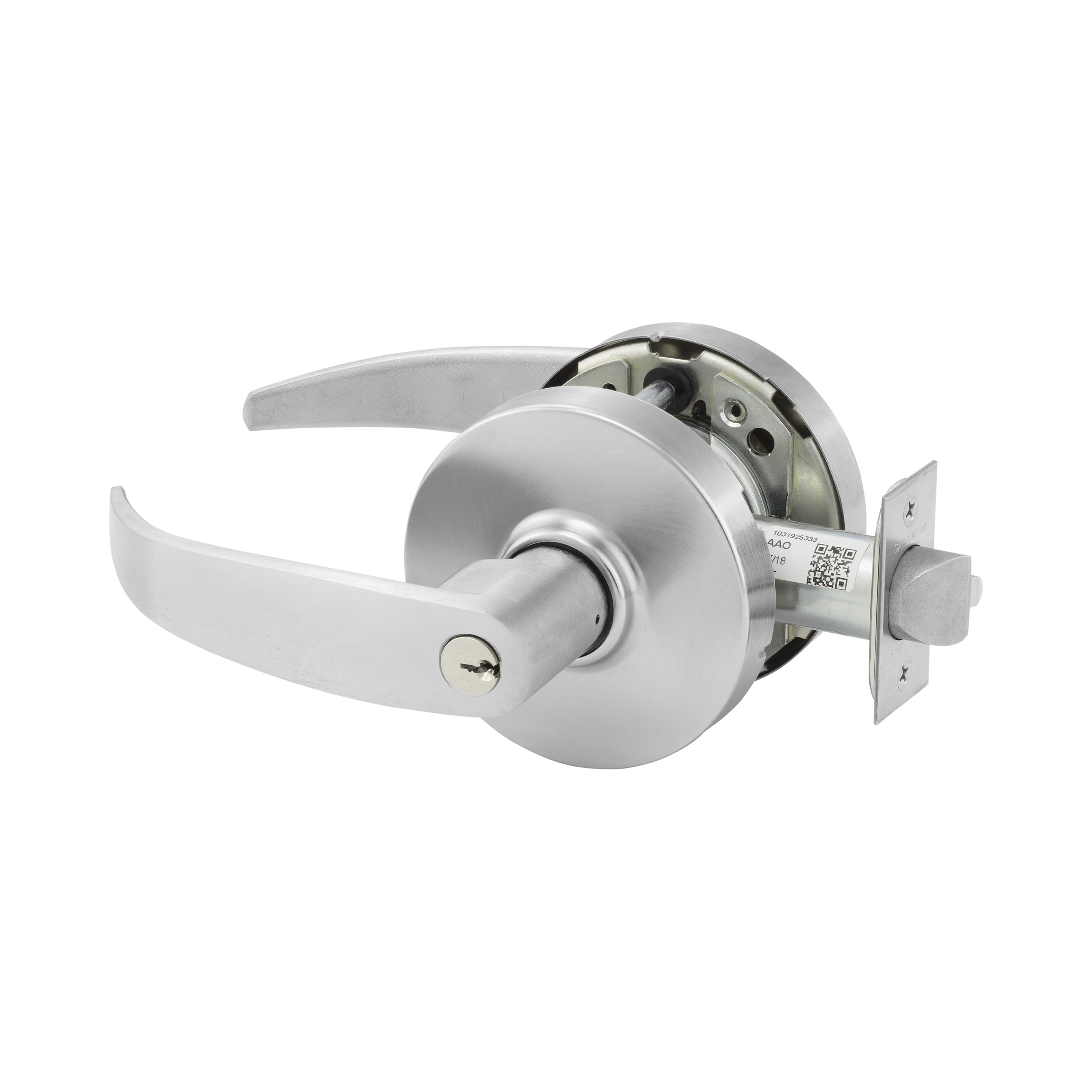

Sargent LC10XG54LP26D Dormitory Lever Lock Grade 1 features a robust design tailored for high-traffic environments like dormitories. This mechanical lockset is built to enhance both security and accessibility, making it an ideal choice for educational institutions. The lock comes with a P Lever and L Rose, finished in sleek satin chrome (Finish Code: 26D), which not only provides a modern aesthetic but also ensures durability against daily wear. Designed for doors ranging from 1-3/4" to 2" thick, this lockset includes a 2-3/4" backset and a crossbore size of 2-1/8". The latch faceplate measures 1-1/8" x 2-1/4", while the ASA strike features dimensions of 4-7/8" with a 1-1/4" lip, ensuring a secure fit. The reversible handing allows for flexible installation, accommodating various door configurations. With a UL Listing for 3-hour doors, the Sargent LC10XG54LP26D meets stringent safety standards, providing peace of mind. Backed by a 7-year limited warranty, this lockset is a reliable choice for those seeking long-lasting performance and security in their building projects.
Dormitory Lever Lock Grade 1 with P Lever and L Rose with ASA Strike Less Cylinder Satin Chrome Finish
Backset: 2-3/4" Backset
Category: Mechanical Commercial Locksets
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore
Design: P Lever
Dimension: 5-1/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: 26D
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: Dormitory
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: P Lever
Limited Warranty: 10 Year Limited Warranty
Manufacturer Warranty: 7 Year Limited Warranty
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: L Rose
Series: 10X Line Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed 3 Hour Door
