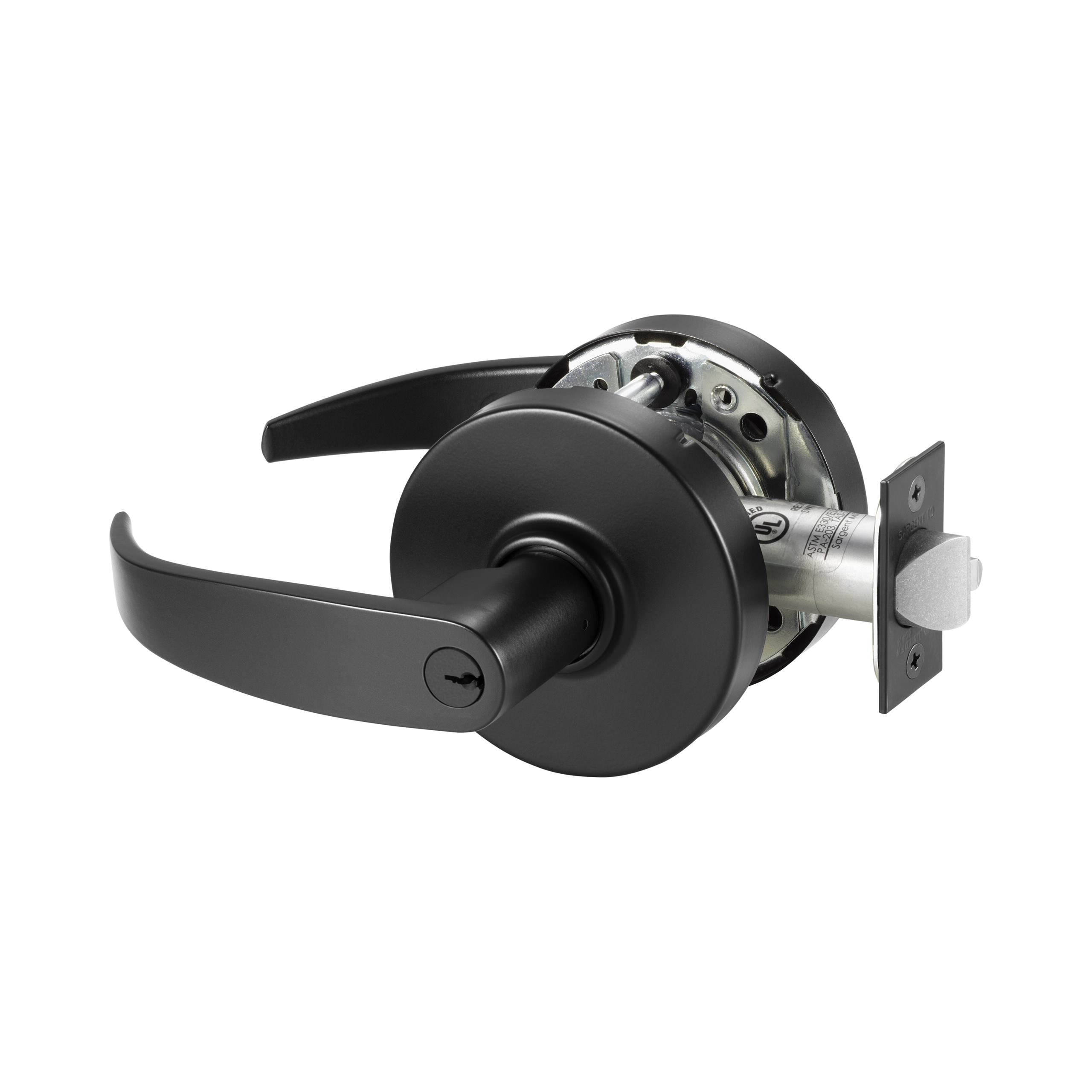

Sargent LC-10XG54 LP BSP F90 Grade 1 Cylindrical Lever Lock with P Lever, L Rose, Black Suede Finish

Sargent LC10XG54LPBSP Corridor, Dormitory (F90) Cylindrical Lever Lock Grade 1 features a P Lever design and L Rose combined with an ASA strike, all finished in a sleek Black Suede Powder Coat. This robust lockset is engineered to provide superior security for a variety of applications, including dormitories and commercial spaces. Built to withstand demanding conditions, the LC10XG54LPBSP prevents unauthorized entry with an impressive resistance to over 3,100 in-lb locked lever torque, significantly exceeding ANSI/BHMA A156.2 requirements. It is also tested to endure a staggering 1,600 lbs of offset lever pull, ensuring reliable performance even in high-traffic environments. The lockset guarantees smooth operation under challenging circumstances, with 100 lbs of preload for latch retraction, making it ideal for warped doors or those experiencing latch bind. With a UL Cycle Above and Beyond test completed at 20 million cycles, you can trust in its durability and longevity. The lockset accommodates door ranges of 1-3/4" to 2" and features a 2-3/4" backset and 2-1/8" crossbore size. Backed by a 7-year limited warranty, the Sargent LC10XG54LPBSP is a reliable choice for enhancing security in any building.

Corridor, Dormitory (F90) Cylindrical Lever Lock Grade 1 with P Lever and L Rose with ASA Strike Less Cylinder Black Suede Powder Coat Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.

• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
• Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
